| Brand Name: | H3C |
| Model Number: | IE4120U series |
| MOQ: | 1 |
| Price: | Quote based on specific models |
| Payment Terms: | T/T |
| Supply Ability: | adequate |

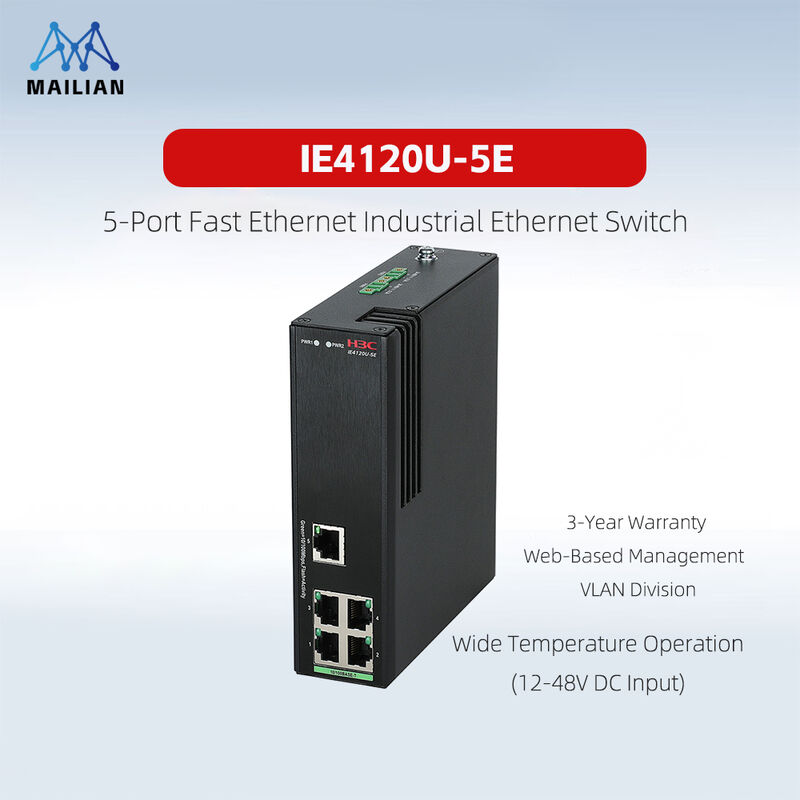

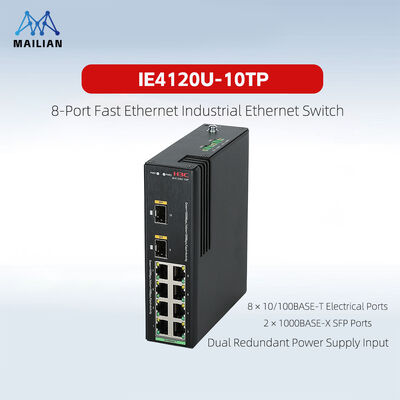

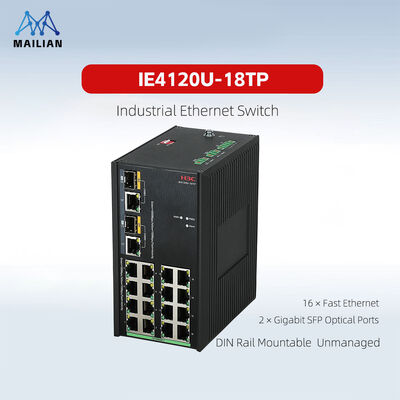

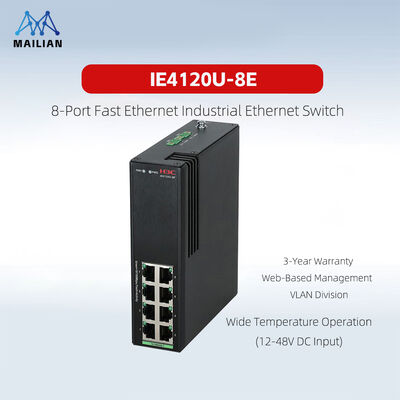

| Item | IE4120U-5E | IE4120U-8E | IE4120U-10P | IE4120U-18TP |
|---|---|---|---|---|
| Switching Capacity | 128Gbps | 128Gbps | 128Gbps | 128Gbps |
| Packet Forwarding Rate | 20Mpps | 20Mpps | 20Mpps | 20Mpps |
| Dimensions
|
44×130×150 | 84×128×150 | 84×128×150 | 84×128×150 |
| Weight | ≤0.8kg | ≤0.8kg | ≤1.0kg | ≤1.5kg |
| Installation Method | DIN rail mounting | DIN rail mounting | DIN rail mounting | DIN rail mounting |
| Power Interface | Phoenix Terminal | Phoenix Terminal | Phoenix Terminal | Phoenix Terminal |
| DIP Switch | None | None | 4-way DIP switch for quick configuration | 4-way DIP switch for quick configuration |
| DI/DO | None | None | 1 × DI, 1 × DO | 1 × DI, 1 × DO |
| Service Ports | 5 × 10/100BASE-T electrical ports | 8 × 10/100BASE-T electrical ports | 8 × 10/100BASE-T electrical ports,
|
16 × 10/100BASE-T electrical ports,
|
| IP Protection Rating | IP41 | IP41 | IP41 | IP41 |
| Power Input | Dual redundant backup input: 24~48VDC (18~55VDC) | Dual redundant backup input: 24~48VDC (18~55VDC) | Dual redundant backup input: 24~48VDC (18~55VDC) | Dual redundant backup input: 24~48VDC (18~55VDC) |
| Static Power Consumption | 2.0W | 2.0W | 3.0W | 3.0W |
| Full-load Power Consumption | 4.0W | 5.0W | 6.0W | 8.0W |
| Heat Dissipation | Fanless, natural heat dissipation | Fanless, natural heat dissipation | Fanless, natural heat dissipation | Fanless, natural heat dissipation |
| Operating Humidity | 5%~95% (non-condensing) | 5%~95% (non-condensing) | 5%~95% (non-condensing) | 5%~95% (non-condensing) |
| Operating Temperature | -40℃~75℃ | -40℃~75℃ | -40℃~75℃ | -40℃~75℃ |
| Storage Temperature | -40℃~85℃ | -40℃~85℃ | -40℃~85℃ | -40℃~85℃ |
