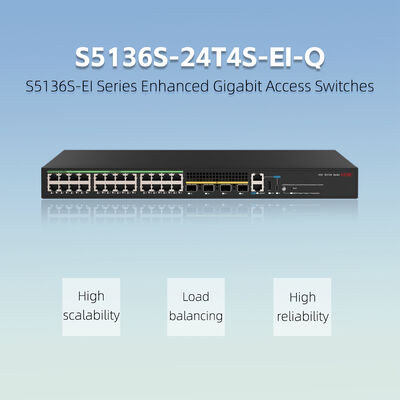

H3C S5136S‑24T4S‑EI‑Q Fanless 24‑Port Gigabit Access Switch with 4×GE SFP Uplink & IRF2 Stacking

Brand Name:	H3C
Model Number:	H3C S5136S‑24T4S‑EI‑Q
MOQ:	1
Price:	$269(According to the Model and configuration requirements)
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	500

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Model Number:

S5136S‑24T4S‑EI‑Q

System Switching Capacity:

336Gbps

Forwarding Rate:

42Mpps

Product Type:

Campus Network Switches-Access Switch

Warranty:

3 Years

Port Switching Capacity:

56Gbps

Ports:

24*10/100/1000 Base-T Port

Communication Mode:

Full-Duplex & Half-Duplex

Dual Core, 1.2GHz

SFP+ Port:

Input Voltage:

Rated Voltage Range: 100 VAC To 240 VAC @ 50 Hz Or 60 Hz

Dimension:

44 × 440 × 160 Mm

Console Port:

Packaging Details:

Original packaging

Supply Ability:

Highlight:

H3C S5136S fanless 24-port switch

Gigabit access switch with SFP uplink

IRF2 stacking network switch

Product Description

H3C S5136S‑24T4S‑EI‑Q Fanless 24‑Port Gigabit Access Switch with 4×GE SFP Uplink & IRF2 Stacking

S5136S-24T4S-EI-Q 24 Port Gigabit Switch with 4 SFP Uplink Ports - Fanless Quiet L3 Managed Switch for Office, Campus, Hotel, and Classroom Environments

Key Features

24 SFP optical ports plus 8 combo copper ports for mixed optical-copper access and fiber-to-desktop deployment
Four 10G SFP+ uplink ports for high-bandwidth uplink to expand capacity for high-density optical access
Dual power module slots supporting AC/DC input to enhance power reliability for data-center redundant deployment
IRF2 stacking supports up to 9 units as one logical device with single-IP management and link redundancy
Full L3 routing including static route, RIP, OSPF for IPv4/IPv6 for complex enterprise campus networks
Single-port triple-authentication, ARP defense and EAD access control for multi-layer LAN security
Type-C Console & OOB port, ZTP provisioning, Cloudnet O&M with all software features license-free

Technical Specifications

Item	S5136S‑24T4S‑EI‑Q
Port Layout	24×10/100/1000BASE‑T, 4×1000BASE‑X SFP
Port Switching Capacity	56Gbps
Forwarding Rate	42Mpps
System Switching Capacity	336Gbps
CPU	Dual‑Core 1.2GHz
SDRAM / Flash	2GB / 1GB
Dimension (H×W×D)	44 × 440 × 160 mm
Full‑load Weight	≤2.0 kg
Cooling Mode	Fanless quiet passive cooling
Latency (64‑byte)	≤2.1μs
Management Interface	Console, Type‑C Console, 1×GE OOB, USB
Max Stacking Bandwidth	16Gbps
Input Voltage	AC 90‑264V
Operating Temperature	-5℃ ~ 50℃
Virtualization	IRF2 stacking, cross‑device link aggregation
Routing Protocol	Static route, RIP, OSPF IPv4/IPv6
Security Features	802.1X/Portal/MAC triple‑auth, ARP defense, EAD
O&M Capability	Cloudnet, SmartMC, ZTP zero‑touch provisioning

Professional Grade Networking: Designed for reliable performance in office, campus, hotel, and classroom environments with enterprise-level security and management features.
