| Brand Name: | H3C |
| Model Number: | S5136S-48P4S-EI |
| MOQ: | 1 |
| Price: | $719(According to the Model and configuration requirements) |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 500 |

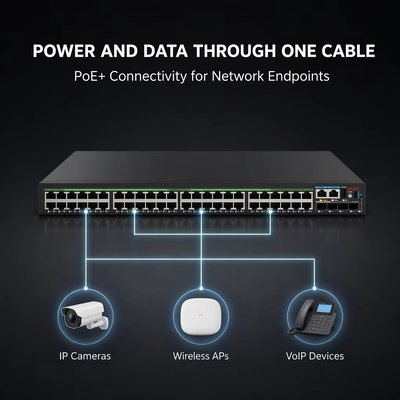

48‑port PoE+ with 390W total PoE budget, supports AI‑PoE, Fast‑PoE and PoE watchdog self‑healing.
Four GE SFP optical uplink ports for fiber uplink, ideal for large‑scale PoE access of IP cameras and Wi‑Fi APs.
IRF2 stacking supports up to 9 units as one logical device, single‑IP management with link redundancy.
| Item | S5136S‑48P4S‑EI |
| Port Layout | 48*10/100/1000BASE‑T PoE+, 4*1000BASE‑X SFP |
| Port Switching Capacity | 104Gbps |
| Forwarding Rate | 78Mpps |
| System Switching Capacity | 336Gbps |
| CPU | Dual‑Core 1.2GHz |
| SDRAM / Flash | 2GB / 1GB |
| Dimension(H*W*D) | 44 * 440 * 260 mm |
| Full‑load Weight | ≤4.1 kg |
| Total PoE Budget | 390W |
| Cooling Mode | 2 built‑in fans |
| Latency(64‑byte) | ≤2.1μs |
| Management Interface | Console,Type‑C Console,1*GE OOB,USB |
| Max Stacking Bandwidth | 16Gbps |
| Input Voltage | AC 90‑264V |
| -5℃ ~ 50℃ | |
| Virtualization | IRF2 stacking, cross‑device link aggregation |
| Routing Protocol | Static route, RIP, OSPF IPv4/IPv6 |
| Security Features | 802.1X/Portal/MAC triple‑auth, ARP defense, EAD |
| O&M Capability | Cloudnet, SmartMC, ZTP zero‑touch provisioning |
