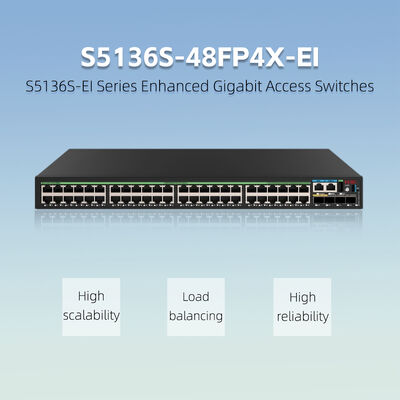

H3C S5136S‑48FP4X‑EI 48 port high‑power PoE+ gigabit switch 10G SFP+ uplink enterprise access switch

Brand Name:	H3C
Model Number:	S5136S-48FP4X-EI
MOQ:	1
Price:	$756(According to the Model and configuration requirements)
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	500

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Model Number:

S5136S-48FP4X-EI

System Switching Capacity:

336Gbps

Forwarding Rate:

131Mpps

Product Type:

Campus Network Switches-Access Switch

Warranty:

3 Years

Port Switching Capacity:

176Gbps

Ports:

48*10/100/1000 Base-T Port

Communication Mode:

Full-Duplex & Half-Duplex

Dual Core, 1.2GHz

SFP Port:

Input Voltage:

Rated Voltage Range: 100 VAC To 240 VAC @ 50 Hz Or 60 Hz

Dimension:

44 × 440 × 260 Mm

Console Port:

Packaging Details:

Original packaging

Supply Ability:

Product Description

H3C S5136S‑48FP4X‑EI 48‑Port High‑Power PoE+ Gigabit Access Switch with 10G SFP+ Uplink & IRF2 Stacking

48 port PoE switch,770W PoE budget,10G SFP+ uplink,IRF2 stacking,L3 PoE access switch,Type‑C console

Key Features

48‑port PoE+ with 770W high PoE budget, supports AI‑PoE, Fast‑PoE and PoE watchdog self‑healing.
Four 10G SFP+ uplink ports, gigabit access with 10G uplink for large‑scale campus high‑density PoE expansion.
IRF2 stacking supports up to 9 units as one logical device, single‑IP management with link redundancy.
Full L3 routing including static route, RIP, OSPF for IPv4/IPv6 for large‑scale complex enterprise networks.
Single‑port triple‑authentication, ARP defense and EAD access control for multi‑layer enterprise LAN security.
Type‑C Console plus independent OOB port, ZTP zero‑touch provisioning and Cloudnet remote O&M.
10KV surge‑protected service ports, license‑free full features to reduce large‑network total ownership cost.

Technical Specifications

Item	S5136S‑48FP4X‑EI
Port Layout	4810/100/1000BASE‑T PoE+, 41G/10G SFP+
Port Switching Capacity	176Gbps
Forwarding Rate	131Mpps
System Switching Capacity	336Gbps
CPU	Dual‑Core 1.2GHz
SDRAM / Flash	2GB / 1GB
Dimension(HWD)	44 * 440 * 260 mm
Full‑load Weight	≤4.2 kg
Total PoE Budget	770W
Cooling Mode	2 built‑in fans
Latency(64‑byte)	≤2.1μs
Management Interface	Console,Type‑C Console,1*GE OOB,USB
Max Stacking Bandwidth	80Gbps
Input Voltage	AC 90‑264V
Operating Temperature	-5℃ ~ 50℃
Virtualization	IRF2 stacking, cross‑device link aggregation
Routing Protocol	Static route, RIP, OSPF IPv4/IPv6
Security Features	802.1X/Portal/MAC triple‑auth, ARP defense, EAD
O&M Capability	Cloudnet, SmartMC, ZTP zero‑touch provisioning

Item	S5136S‑48FP4X‑EI
Port Layout	4810/100/1000BASE‑T PoE+, 41G/10G SFP+
Port Switching Capacity	176Gbps
Forwarding Rate	131Mpps
System Switching Capacity	336Gbps
CPU	Dual‑Core 1.2GHz
SDRAM / Flash	2GB / 1GB
Dimension(HWD)	44 * 440 * 260 mm
Full‑load Weight	≤4.2 kg
Total PoE Budget	770W
Cooling Mode	2 built‑in fans
Latency(64‑byte)	≤2.1μs
Management Interface	Console,Type‑C Console,1*GE OOB,USB
Max Stacking Bandwidth	80Gbps
Input Voltage	AC 90‑264V
Operating Temperature	-5℃ ~ 50℃
Virtualization	IRF2 stacking, cross‑device link aggregation
Routing Protocol	Static route, RIP, OSPF IPv4/IPv6
Security Features	802.1X/Portal/MAC triple‑auth, ARP defense, EAD
O&M Capability	Cloudnet, SmartMC, ZTP zero‑touch provisioning
