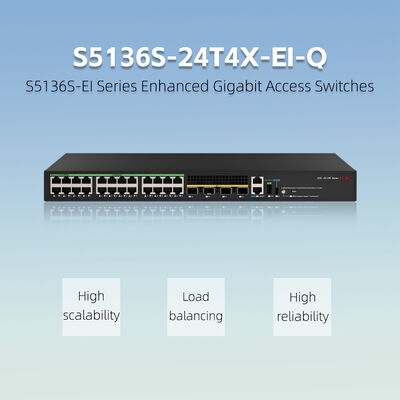

24 Port Gigabit Ethernet Switch 4x1G/10G SFP+ Uplink Fanless L3 Managed Network Switch for Campus Hotel Classroom Office

Brand Name:	H3C
Model Number:	S5136S-24T4X-EI-Q
MOQ:	1
Price:	$295(According to the Model and configuration requirements)
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	500

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Model Number:

S5136S-24T4X-EI-Q

System Switching Capacity:

336Gbps

Forwarding Rate:

96Mpps

Product Type:

Campus Network Switches-Access Switch

Warranty:

3 Years

Port Switching Capacity:

128Gbps

Ports:

24*10/100/1000 Base-T Port

Communication Mode:

Full-Duplex & Half-Duplex

Dual Core, 1.2GHz

SFP+ Port:

Input Voltage:

Rated Voltage Range: 100 VAC To 240 VAC @ 50 Hz Or 60 Hz

Dimension:

44 × 440 × 160 Mm

Console Port:

Packaging Details:

Original packaging

Supply Ability:

Product Description

H3C S5136S‑24T4X‑EI‑Q Fanless 24‑Port Gigabit Access Switch with 10G SFP+ Uplink & IRF2 Stacking

Key Features

Fanless passive cooling for zero‑noise operation, ideal for noise‑sensitive scenarios like classrooms, hotels and offices.
24‑port gigabit copper plus 4*GE SFP uplinks, support fiber access for SME enterprise networking.
IRF2 stacking merges multiple units into one logical device, single‑IP management with link redundancy.
Full L3 routing including static route, RIP, OSPF for IPv4/IPv6 for complex enterprise network deployment.
Single‑port triple‑authentication, ARP defense and EAD access control for solid enterprise LAN security.
Type‑C Console plus independent OOB port, ZTP zero‑touch provisioning and Cloudnet remote O&M.
10KV surge‑protected service ports, license‑free full features to reduce SME total ownership cost.

Technical Specifications

Item	S5136S‑24T4X‑EI‑Q
Port Layout	2410/100/1000BASE‑T, 41G/10G SFP+
Port Switching Capacity	128Gbps
Forwarding Rate	96Mpps
System Switching Capacity	336Gbps
CPU	Dual‑Core 1.2GHz
SDRAM / Flash	2GB / 1GB
Dimension(HWD)	44 * 440 * 160 mm
Full‑load Weight	≤2.0 kg
Cooling Mode	Fanless quiet passive cooling
Latency(64‑byte)	≤2.1μs
Management Interface	Console, Type‑C Console, 1*GE OOB, USB
Max Stacking Bandwidth	80Gbps
Input Voltage	AC 90‑264V
Operating Temperature	-5℃ ~ 50℃
Virtualization	IRF2 stacking, cross‑device link aggregation
Routing Protocol	Static route, RIP, OSPF IPv4/IPv6
Security Features	802.1X/Portal/MAC triple‑auth, ARP defense, EAD
O&M Capability	Cloudnet, SmartMC, ZTP zero‑touch provisioning
