H3C US100C Series Unmanaged PoE Switch with Long-Range Transmission, Lightning Protection & Plug-and-Play for CCTV Surveillance

Brand Name:	H3C
Model Number:	H3C US100C Series
MOQ:	1
Price:	Subject to the specific model and configuration
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Highlight:

Long-Range Transmission PoE Switch

Lightning Protection Unmanaged Ethernet Switch

Plug-and-Play Network Switch

Product Description

H3C US100C Series Unmanaged PoE Switch

Long-Range Transmission, Lightning Protection & Plug-and-Play for CCTV Surveillance

H3C US100C series 100 gigabit PoE switch is a new generation of green energy-saving unmanaged Ethernet switch products launched by H3C Technology Co., Ltd. Convenient to install and maintain with rich business features, these switches are widely used in small video surveillance scenarios such as small stores, small and micro enterprises, homes, and some outdoor areas.

Technical Specifications

Support Features	US106C-P	US110C-P
Overall dimensions (WDH) mm	17512743	17512743

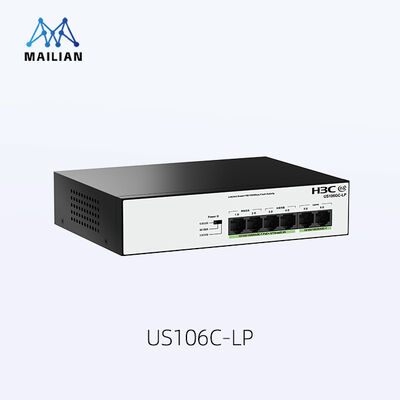

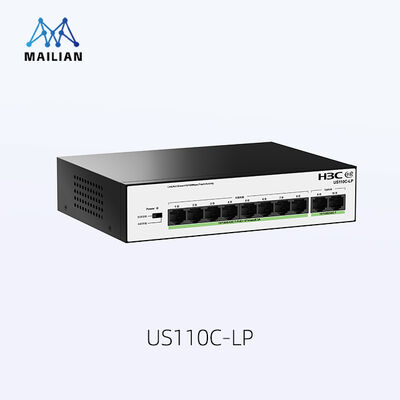

Fixed port	4 x 10/100Base-T electrical ports (PoE port) 2 x 10/100Base-T electrical ports (uplink port)	8 x 10/100Base-T electrical ports (PoE port) 2 x 10/100Base-T electrical ports (uplink port)
Mode switching	Standard exchange / Long-distance transmission
MAC address table	1K	1K
Port switching capacity	1.2Gbps	2Gbps
Forwarding capabilities	0.9Mpps	1.5Mpps
PoE+ power supply	PoE+ support Maximum output: 65W 4 downlink ports Max power per port: 30W	PoE+ support Maximum output: 112W 8 downstream ports Max power per port: 30W
Exchange mode	Store forwarding mode
QoS	Support QoS priority
Power supply	Built-in power supply 100V~240V AC
Port lightning protection	4KV
Fan	No fan, natural heat dissipation
Operating temperature/storage temperature	0ºC～40ºC/-40ºC～70ºC
Operating humidity/storage humidity	10%~90%/5%~95% (non-condensing)
MTBF	>100000H
Installation method	Tabletop

Key Features

Rich Port Types

Dual uplink lines support simultaneous access to NVR and router for local and remote camera viewing
Available in 4+2 ports and 8+2 port configurations
Supports half-duplex/full-duplex mode
Compliant with IEEE802.3, IEEE802.3U, IEEE802.3x standards

Reliable Protection Strategy

PoE supports short circuit and overload protection
Power supply supports over-temperature and over-voltage protection
Compatible with AF and AT standard PoE power supply modes
Intelligently identifies powered devices for safer power supply
4KV high-level lightning protection reduces equipment damage risk from lightning induction

Strong Power Supply Performance

One-key dial switching between standard mode and long-distance transmission
Supports long-distance power supply up to 250 meters
Easy coverage of indoor and outdoor first-line direct coverage
Higher specification PoE power for full port full load camera operation

Excellent Product Design

Green Ethernet technology automatically reduces power consumption
Tin box design, solid and durable
Supports desktop and wall mounting, plug and play
Intelligent power management chip prevents over-limit operation
Extended service life through optimized thermal management
