H3C S5500V3-SI Series High-Performance Intelligent Ethernet Switches with 10G Uplink, IRF Stacking, IPv6 and Advanced Security for Enterprise Aggregation and Campus Core Networks

Brand Name:	H3C
Model Number:	H3C S5500V3-SI series
MOQ:	1
Price:	Subject to the specific model and configuration
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Exchange Capacity:

826Gbps/8.26Tbps

Package Forwarding Rate:

228Mpps

Dimensions:

440*160*43.6 Mm

Weight:

≤2.2kg

Operating Temperature:

-5℃～45℃

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Highlight:

H3C S5500V3-SI enterprise Ethernet switch

10G uplink network switch with IRF stacking

IPv6 security switch for campus networks

Product Description

H3C S5500V3-SI Series High-Performance Intelligent Ethernet Switches

Product Overview

H3C S5500V3-SI is a new generation of high-performance, high-port density, high-security, and easy-to-install intelligent managed Gigabit Ethernet switches developed using industry-leading ASIC technology. These switches support IPv4/IPv6 dual-stack management and forwarding, static routing protocols, and advanced routing protocols including RIP, OSPF, BGP, and IS-IS, along with comprehensive management and security features.

Primarily positioned at the access and aggregation layers of enterprise and campus networks, the S5500V3-SI series meets high-density gigabit access requirements with fixed 10G uplinks, enabling high-performance end-to-end IP network solutions when integrated with other H3C products.

Available Models

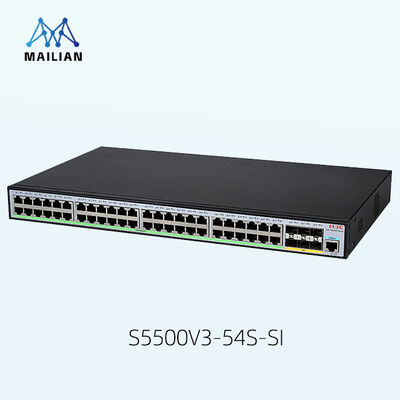

S5500V3-54S-SI: 48 × 10/100/1000BASE-T ports, 6 × 10G/1G BASE-X SFP+ ports

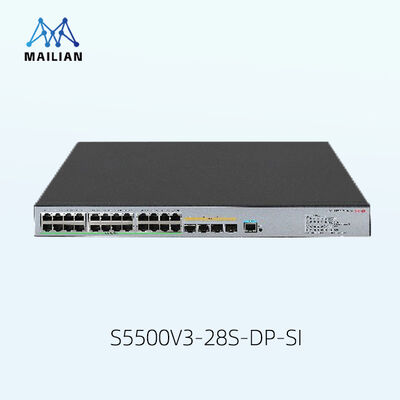

S5500V3-28S-DP-SI: 24 × 10/100/1000BASE-T ports, 4 × 10G/1G BASE-X SFP+ ports, modular dual power supply

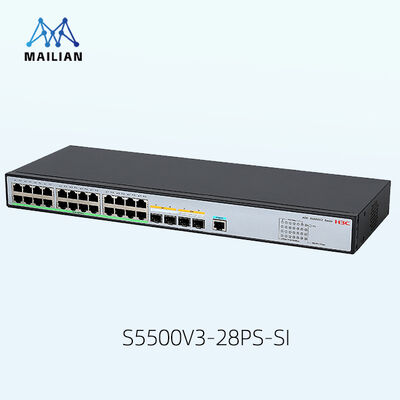

S5500V3-28PS-SI: 24 × 10/100/1000BASE-T ports, 2 × 100/1000 BASE-X SFP ports, 2 × 10G/1G BASE-X SFP+ ports

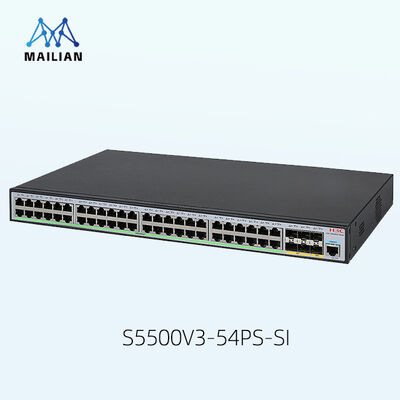

S5500V3-54PS-SI: 48 × 10/100/1000BASE-T ports, 4 × 100/1000 BASE-X SFP ports, 2 × 10G/1G BASE-X SFP+ ports

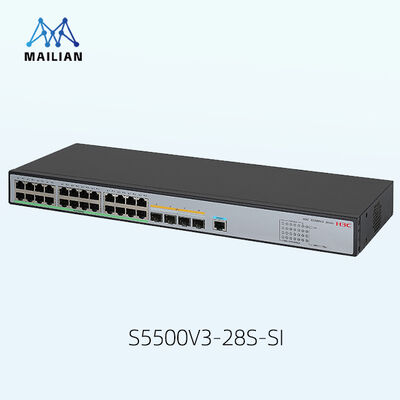

S5500V3-28S-SI: 24 × 10/100/1000BASE-T ports, 4 × 10G/1G BASE-X SFP+ ports

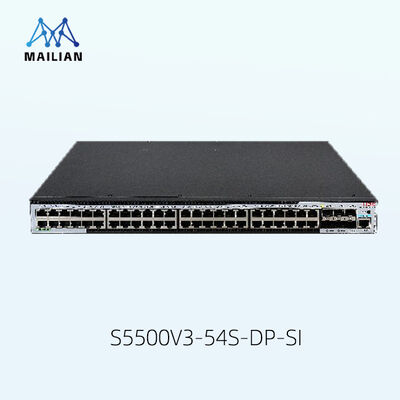

S5500V3-54S-DP-SI: 48 × 10/100/1000BASE-T ports, 6 × 10G/1G BASE-X SFP+ ports, modular dual power supply

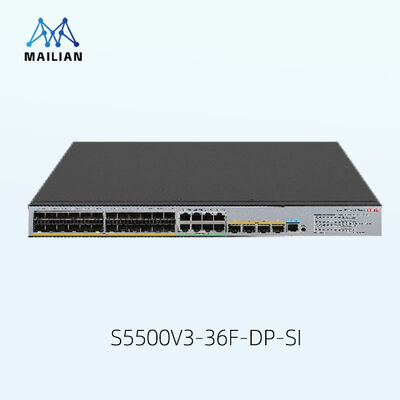

S5500V3-36F-DP-SI: 24 × 100/1000 BASE-X SFP ports, 8 × 10/100/1000BASE-T ports, 4 × 10G/1G BASE-X SFP+ ports, modular dual power supply

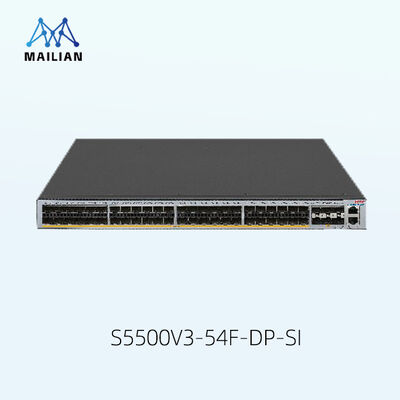

S5500V3-54F-DP-SI: 48 × 100/1000 BASE-X SFP ports, 6 × 10G/1G BASE-X SFP+ ports, modular dual power supplies

Technical Specifications

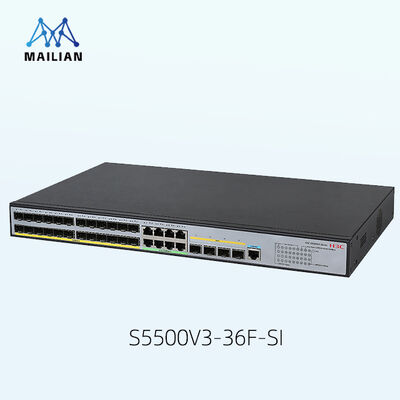

Project	S5500V3-28S-SI	S5500V3-54S-SI	S5500V3-28PS-SI	S5500V3-54PS-SI	S5500V3-36F-SI	S5500V3-28S-DP-SI	S5500V3-54S-DP-SI	S5500V3-36F-DP-SI	S5500V3-54F-DP-SI
Exchange Capacity	826Gbps/8.26Tbps	826Gbps/8.26Tbps	826Gbps/8.26Tbps	826Gbps/8.26Tbps	1.36Tbps/13.6Tbps	826Gbps/8.26Tbps	826Gbps/8.26Tbps	1.36Tbps/13.6Tbps	1.36Tbps/13.6Tbps
Package Forwarding Rate	228Mpps	264Mpps	228Mpps	264Mpps	228Mpps	228Mpps	264Mpps	228Mpps	264Mpps
Service Port Description	24 × 10/100/1000Base-T ports, 4 × 10G SFP+ ports	48 × 10/100/1000Base-T ports, 6 × 10G SFP+ ports	24 × 10/100/1000Base-T ports, 2 × Gigabit SFP ports, 2 × 10G SFP+ ports	48 × 10/100/1000Base-T ports, 4 × Gigabit SFP ports, 2 × 10G SFP+ ports	24 × Gigabit SFP ports, 8 × 10/100/1000Base-T ports, 4 × 10G SFP+ ports	24 × 10/100/1000Base-T ports, 4 × 10G SFP+ ports	48 × 10/100/1000Base-T ports, 6 × 10G SFP+ ports	24 × Gigabit SFP ports, 8 × 10/100/1000Base-T ports, 4 × 10G SFP+ ports	48 × Gigabit SFP ports, 6 × 10G SFP+ ports, 1 × 10/100/1000Base-T management port
Dimensions (W×D×H, mm)	440×160×43.6	440×260×43.6	440×160×43.6	440×260×43.6	440×260×43.6	440×360×43.6	440×360×43.6	440×360×43.6	440×360×43.6
Weight	≤2.2kg	≤4.0kg	≤2.2kg	≤4.0kg	≤3.5kg	≤5.6kg	≤6.0kg	≤4.5kg	≤4.5kg
Console Port	1
Input Voltage	AC • Rated: 100V~240V AC, 50/60Hz • Maximum: 90V~264V AC, 47~63Hz
Power Consumption (Static)	Single AC: 17W	Single AC: 19W	Single AC: 17W	Single AC: 19W	Single AC: 27W	Single AC: 16W Single DC: 22W Dual AC: 18W Dual DC: 27W	Single AC: 18W Single DC: 23W Dual AC: 23W Dual DC: 29W	Single AC: 29W Single DC: 30W Dual AC: 35W Dual DC: 35W	Single AC: 36W Single DC: 38W Dual AC: 43W Dual DC: 43W
Power Consumption (Full Load)	Single AC: 37W	Single AC: 53W	Single AC: 37W	Single AC: 53W	Single AC: 54W	Single AC: 37W Single DC: 41W Dual AC: 39W Dual DC: 45W	Single AC: 55W Single DC: 56W Dual AC: 57W Dual DC: 61W	Single AC: 52W Single DC: 54W Dual AC: 58W Dual DC: 60W	Single AC: 77W Single DC: 77W Dual AC: 80W Dual DC: 84W
Operating Temperature	-5℃～45℃
Operating Humidity	5%～95% (Non-condensing)

Business Features

Port Aggregation	GE port aggregation, 10GE port aggregation, static aggregation, dynamic aggregation, cross-device aggregation
Port Characteristics	IEEE802.3x flow control, storm suppression based on port rate percentage, PPS-based storm suppression, BPS-based storm suppression
Jumbo Frame	Yes
MAC Address Table	32k MAC addresses, black hole MAC addresses, configurable maximum learning count
VLAN	Port-based, MAC-based, protocol-based, IP subnet-based VLANs, QinQ, flexible QinQ, VLAN Mapping, Voice VLAN, MVRP
Layer 2 Ring Network Protocol	STP/RSTP/MSTP, PVST, SmartLink, RRPP, ERPS Ethernet ring protection (≤50ms switching time)
DHCP	DHCP Client, DHCP Snooping, DHCP Relay, DHCP Server, DHCP Snooping option82/DHCP Relay option82
IRF2	Intelligent elastic architecture, distributed device management, distributed link aggregation, distributed elastic routing
Intelligent Resilient Architecture	Stacking via standard Ethernet interfaces, local and remote stacking, maximum 9 stacking units
IP Routing	Static routing, RIPv1/v2, RIPng, OSPFv1/v2, OSPFv3, BGP4, BGP4+ for IPv6, IS-IS, VRRP/VRRPv3
IPv6	ND (Neighbor Discovery), PMTU, IPv6-Ping, IPv6-Tracert, IPv6-Telnet, IPv6-TFTP, manual tunnel configuration
Multicast	IGMP Snooping v1/v2/v3, MLD Snooping v1/v2, PIM Snooping, MLD Proxy, Multicast VLAN, IGMP v1/v2/v3, MLD v1/v2, PIM-DM, PIM-SM, PIM-SSM, MSDP, MSDP for IPv6, MBGP, MBGP for IPv6
Mirroring	Stream mirroring, local and remote port mirroring
OAM	802.1ag, 802.3ah
ACL/QoS	L2-L4 packet filtering, time range ACLs, bidirectional ACL strategies, VLAN-based ACL delivery, 16Kbps granularity, packet redirection, 802.1p and DSCP priority relabeling, CAR function, 8 output queues per port, SP/WRR/WFQ/SP+WRR scheduling, WRED
Security Features	Hierarchical user management, password protection, 802.1X authentication, MAC address authentication, Guest VLAN, RADIUS, SSH 2.0, port isolation, port security, PORTAL authentication, EAD, DHCP Snooping protection, dynamic ARP detection, BPDU guard, Root guard, uRPF, IP/Port/MAC binding, OSPF/RIPv2 authentication, PKI
Management & Maintenance	XModem/FTP/TFTP loading, CLI, Telnet, console, SNMPv1/v2/v3, WEB management, RMON, iMC Intelligent Management Center, system logs, NTP, power/fan/temperature alarms, Ping, Tracert, VCT cable detection, DLDP, LLDP, loopback detection
Green & Energy Saving	EEE (802.3az), port auto power down, port schedule down function

SmartMC Intelligent Management Center

SmartMC addresses the challenge of centralized management for large numbers of scattered network devices, specifically designed for switch-based O&M tasks in small enterprises. The platform enables unified network operation and management through built-in equipment and graphical operations.

SmartMC Core Functions

Intelligent Management: Device role selection, FTP server configuration, global configuration, network management port configuration
Intelligent O&M: Group management, device/group upgrade backup, monitoring, device fault replacement
Visualization: Networking topology visualization and management, device list display
Smart Business: User management with network access user creation and activation, one-click armed port access

H3C S5500V3-SI series switches can serve as SmartMC management devices, enabling unified network management by logging into the SmartMC network through S5500V3-SI.

Key Technology Highlights

High-Performance IPv4/IPv6 Service Capabilities

The S5500V3-SI series implements hardware-based IPv4/IPv6 dual-stack platform with multiple tunneling technologies, comprehensive IPv4 and IPv6 Layer 3 routing protocols, multicast technology, and policy routing mechanisms for complete IPv4/IPv6 solutions.

IRF2 (Second Generation Intelligent Elastic Architecture)

IRF2 technology connects multiple physical devices and virtualizes them as a single logical device, providing significant benefits:

Simplified Management: Unified configuration and management through any device port
Simplified Business: Single-device routing protocol computation with cross-device link aggregation
Elastic Expansion: Scalable architecture with hot-swappable device addition/removal
High Reliability: Link, device, and protocol-level redundancy with 1:N backup
High Performance: Scalable switching capacity and port density through IRF technology

Complete Security Control Strategy

Comprehensive security features including EAD (terminal access control), centralized MAC address authentication, 802.1x authentication, PORTAL authentication, and dynamic policy assignment. Enhanced ACL control with VLAN-based delivery and uRPF technology for source address spoofing prevention.

Multiple Reliability Protections

Device-level reliability with pluggable AC and DC dual power modules, plus link-level reliability technologies including LACP, STP/RSTP/MSTP, Smart Link, RRPP fast ring network protection, and IRF2 architecture with cross-device link aggregation.

Rich QoS Strategies

L2-L4 packet filtering with flexible classification, SP/WRR/WFQ/SP+WRR queue scheduling, CAR function with 16Kbps granularity, and comprehensive port mirroring capabilities for network monitoring and troubleshooting.

Excellent Management

Multiple management interfaces including console, out-of-band network management, SNMPv1/v2/v3, CLI, web management, and TELNET with SSH2.0 encryption. SPAN/RSPAN mirroring with multiple observation ports for comprehensive network traffic analysis.
