| Brand Name: | H3C |
| Model Number: | H3C S5130S-54S-EI-G |
| MOQ: | 1 |
| Price: | $786(According to the Model and configuration requirements) |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 500 |

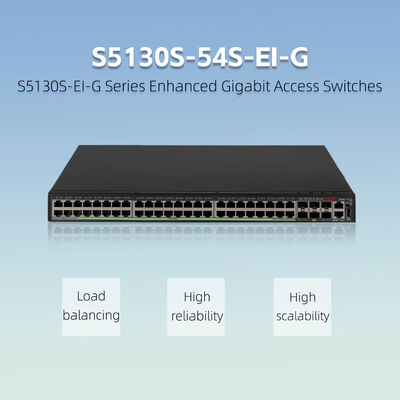

H3C S5130S-54S-EI-G 48 Port Gigabit Managed Switch 10G SFP+ Uplinks for SME Campus Network Access IRF2 Stacking L2 Switch
High-Density Gigabit Access With 10G Uplinks: 48 10/100/1000BASE-T ports plus 6 1G/10G SFP+ uplink ports deliver 216Gbps switching capacity and 161Mpps forwarding rate for high-density desktop and campus access
| Features | S5130S-54S-EI-G |
|---|---|
| Port Switching Capacity | 216Gbps |
| Forwarding Capacity | 161Mpps |
| Box Switching Capacity | 336Gbps |
| FLASH/RAM | 3.5GB / 1GB |
| Memory Capacity of Packet Buffer(bytes) | 3MB |
| Latency (64byte/µs) |
GE: < 5µs 10GE < 3µs |
| Dimensions(W* D*H) | 440*260*43.6 mm |
| Weight | 3.9kg(with APD 70W) |
| 10/100/1000 Base-T Port | 48 |
| SFP+ Port | 6 |
| Maximum Stacking Bandwidth | 80Gbps |
| Maximum Stacking Num | 9 |
| Input Voltage | AC: Rated voltage range: 100V~240V AC, 50/60Hz |
| Power Consumption(full configuration) |
MIN: SINGLE AC:26.3W Dual AC:27.0W MAX: SINGLE AC:59.7W Dual AC:60.1W |
| Fan NUM(fiexd) | 2 |
| MTBF(Year) | 151.15 |
| MTTR(Hour) | 1 |
| NOISE(ISO7779) | 36.7dB/45.2dB |
| Operating Temperature |
-5℃ ~ 50℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km) |
| Storage Temperature | -40℃ ~ 70℃ |
| Operating & Storage Relative Humidity(noncondensing) | 5% ~ 95% |
