| Brand Name: | H3C |
| Model Number: | S7503X-M-G/S7503X-G/S7506X-G/S7506X-G-MF/S7510X-G |
| MOQ: | 1 |
| Price: | Prices vary according to order quantity |
| Payment Terms: | T/T |
| Supply Ability: | Adequate stock available |

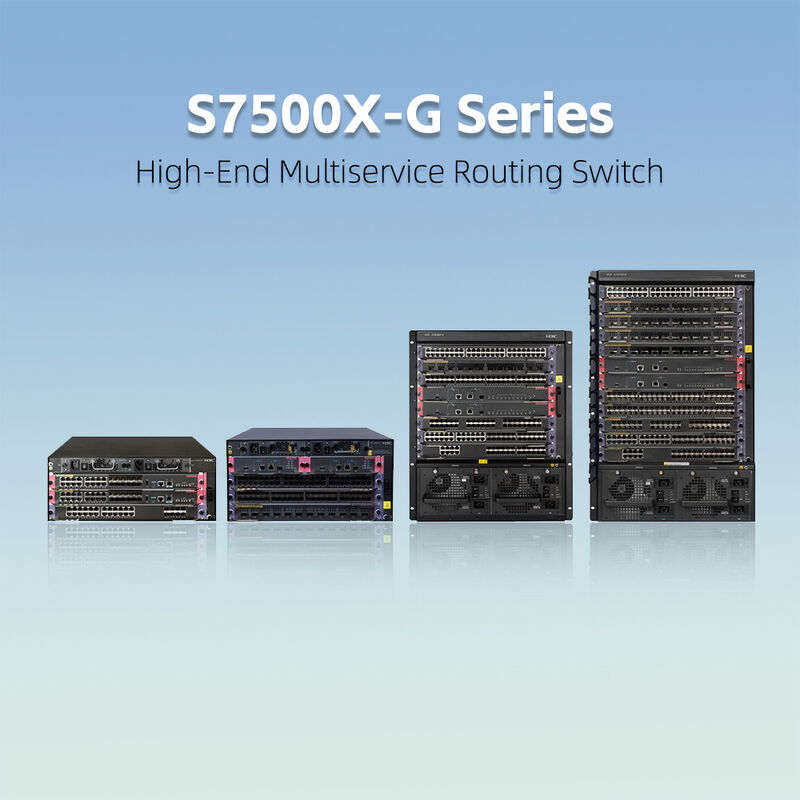

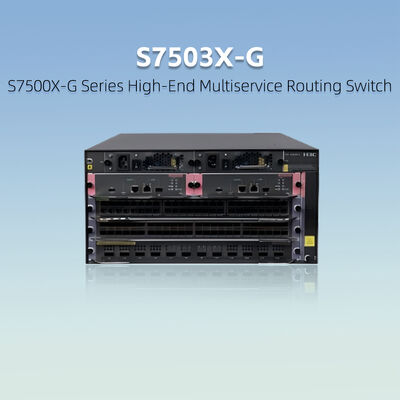

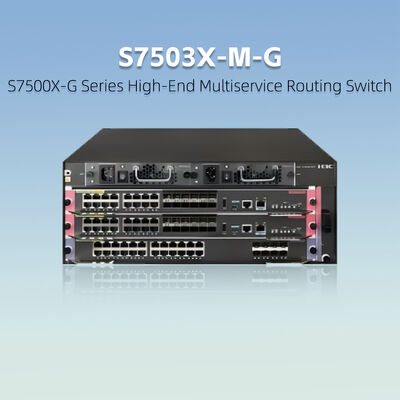

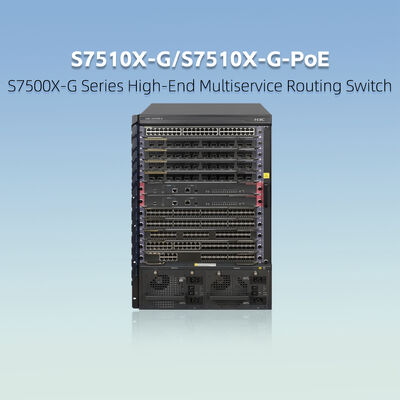

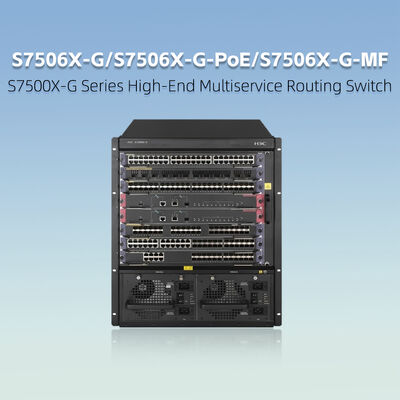

Brand new original H3C S7500X-G Series Enterprise Core Switch rack layer 3 network switch. Full warranty with traceable supply chain. Available in multiple configurations to meet enterprise networking requirements.
| Item | S7503X-M-G | S7503X-G | S7506X-G | S7510X-G |
|---|---|---|---|---|
| Switching Capacity | 4.75Tbps¹ | 6.72Tbps¹ | 13.44Tbps² | 22.40Tbps² |
| Forwarding Capacity | 2120Mpps | 3000Mpps | 6000Mpps | 10000Mpps |
| MPU Slots | 1~2³ | 2 | 2 | 2 |
| LPU Slots | 1~2⁴ | 3 | 6 | 10 |
| Fan Tray | 1⁴ | 4 | 5⁴,⁷ | 8 |
| PSU Slots | 2 | 2 | 2 | 2 |
| Dimension (H * W * D) | 175mm*436mm*420mm (6.89 * 17.17 * 16.54 in); (4U) |
216mm*436mm*420mm (8.50 * 17.17 * 16.54 in); (5U) |
575mm*436mm*420mm (22.64 * 17.17 * 16.54 in); (13U) |
708mm*436mm*420mm (27.87 * 17.17 * 16.54 in); (16U) |
| Fully Loaded Weight | <28KG / <61.73LB | <35KG / <77.16LB | S7506X-G/MF: <75KG / <165.34LB S7506X-G-PoE: <80KG / <176.37LB |
S7510X-G: <95KG / <209.44LB S7510X-G-PoE: <100KG / <220.46LB |
| Availability | 100.00% | 100.00% | 100.00% | 100.00% |
| MTBF (yrs) | 61.8 | 59.1 | 38.2 | 111.6 |
| MTTR (hrs) | 1 | 1 | 1 | 1 |
