| Brand Name: | H3C |
| Model Number: | IE4320 Series |
| MOQ: | 1 |
| Price: | depending on order quantity and specific model |
| Payment Terms: | T/T |
| Supply Ability: | Up to 30 days |

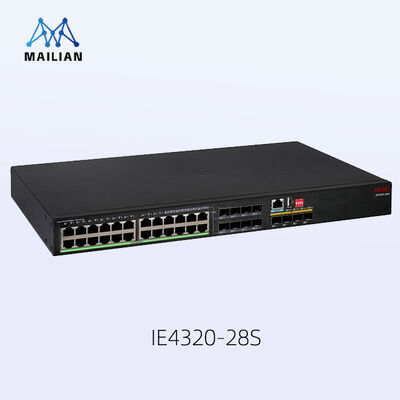

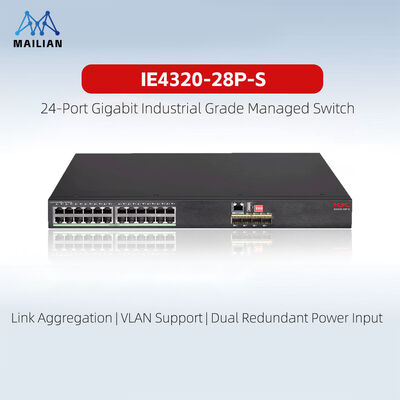

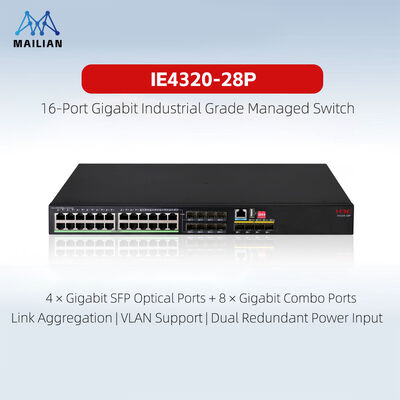

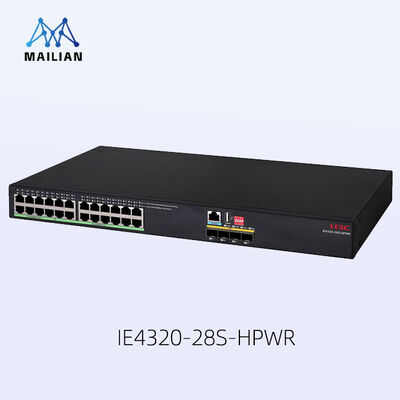

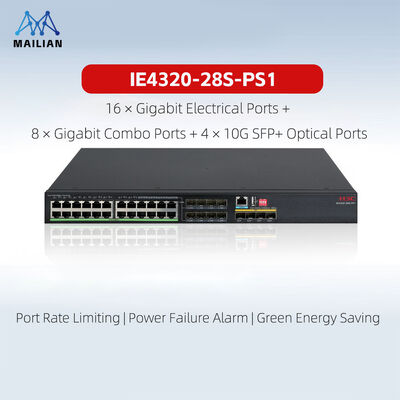

| Item | IE4320-28P-S | IE4320-28P | IE4320-28S | IE4320-28S-PS1 | IE4320-28S-HPWR |
|---|---|---|---|---|---|
| Switching Capacity | 720G/7.2Tbps | 720G/7.2Tbps | 720G/7.2Tbps | 720G/7.2Tbps | 720G/7.2Tbps |
| Packet Forwarding Rate | 256Mpps | 256Mpps | 256Mpps | 256Mpps | 256Mpps |
| Dimensions(W×D×H, mm) | 440×260×43.6 | 440×260×43.6 | 440×260×43.6 | 440×260×43.6 | 440×260×43.6 |
| Weight | ≤4.0kg | ≤4.0kg | ≤4.0kg | ≤4.0kg | ≤4.0kg |
| Installation Method | Rack-mount | Rack-mount | Rack-mount | Rack-mount | Rack-mount |
| Power Interface | AC: IEC 60320 C13;DC: Phoenix Terminal | AC: IEC 60320 C13;DC: Phoenix Terminal | AC: IEC 60320 C13;DC: Phoenix Terminal | AC: IEC 60320 C13;DC: Phoenix Terminal | AC: IEC 60320 C13;DC: Phoenix Terminal |
| USB Port | 1 × USB Port | 1 × USB Port | 1 × USB Port | 1 × USB Port | 1 × USB Port |
| Console Port | 1 × RJ45 Console | 1 × RJ45 Console | 1 × RJ45 Console | 1 × RJ45 Console | 1 × RJ45 Console |
| DIP Switch | 4-way DIP switch for quick configuration | 4-way DIP switch for quick configuration | 4-way DIP switch for quick configuration | 4-way DIP switch for quick configuration | 4-way DIP switch for quick configuration |
| DI/DO | 1 × DI, 1 × DO | 1 × DI, 1 × DO | 1 × DI, 1 × DO | 1 × DI, 1 × DO | 1 × DI, 1 × DO |
| IP Rating | IP40 | IP40 | IP40 | IP40 | IP40 |
| Service Ports | 24 × 10/100/1000BASE-T ports,4 × 1000BASE-X SFP ports | 16 × 10/100/1000BASE-T ports,8 × Combo ports (10/100/1000BASE-T or 100/1000BASE-X SFP),4 × 1000BASE-X SFP ports | 16 × 10/100/1000BASE-T ports,8 × Combo ports (10/100/1000BASE-T or 100/1000BASE-X SFP),4 × 1G/10G SFP+ ports | 16 × 10/100/1000BASE-T ports,8 × Combo ports (10/100/1000BASE-T or 100/1000BASE-X SFP),4 × 1G/10G SFP+ ports | 8 × 10/100/1000BASE-T (PoE++),16 × 10/100/1000BASE-T (PoE+),4 × 1G/10G SFP+ ports |
| Power Input | Dual redundant backup power input | Dual AC/DC redundant power input | Dual redundant backup input (18~57VDC) | AC220V input range: 100-240VAC, 50/60HzMax range: 85-264VAC;or DC220V input range: 192-288VDC | AC220V input range: 100-240VAC, 50/60HzMax range: 85-264VAC;or DC220V input range: 192-288VDC |
| Voltage Range | — | 18~48VDC (Non-PoE)48~57V (PoE) | 24~48VDC (18~60VDC) | 52V~57V for PoE+ | 54V~57V for PoE++ |
| Static Power Consumption | Single AC: ≤14.0WDual AC: ≤15.0W | Single AC: ≤14.0WDual AC: ≤15.0W | Single AC: 14.0WDual AC: 15.0W | Single AC: 13.0WSingle DC: 16.0WAC+DC: 20.0W | Single DC: 17.0WDual DC: 19.0W |
| Full-load Power Consumption | Single AC: ≤28.0WDual AC: ≤30.0W | Single AC: ≤28.0WDual AC: ≤30.0W | Single AC: ≤30.0WDual AC: ≤32.0W | Single AC: 28.0WSingle DC: 29.0WAC+DC: 36.0W | Single DC: 198.0W (PoE: 160.0W)Dual DC: 415.0W (PoE: 360.0W) |
| PoE Specification | N/A | IEEE 802.3af / 802.3at / 802.3btMax single port: 60WTotal PoE power: 360W | — | — | — |
| Heat Dissipation | Fanless, natural heat dissipation | Fanless, natural heat dissipation | Fanless, natural heat dissipation | Fanless, natural heat dissipation | Fanless, natural heat dissipation |
| Operating Humidity | 5%~95% (Non-condensing) | 5%~95% (Non-condensing) | 5%~95% (Non-condensing) | 5%~95% (Non-condensing) | 5%~95% (Non-condensing) |
| Operating Temperature | -40℃~85℃ | -40℃~85℃ | -40℃~85℃ | -40℃~85℃ | -40℃~85℃ |
| Storage Temperature | -40℃~85℃ | -40℃~85℃ | -40℃~85℃ | -40℃~85℃ | -40℃~85℃ |

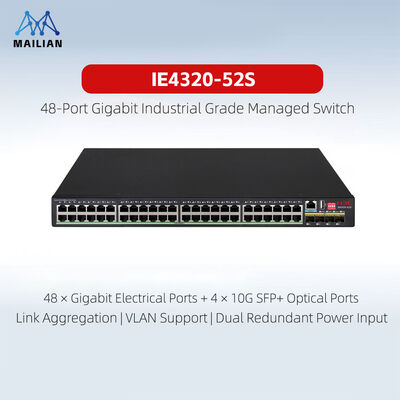

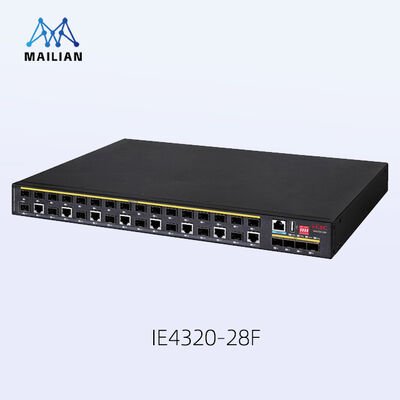

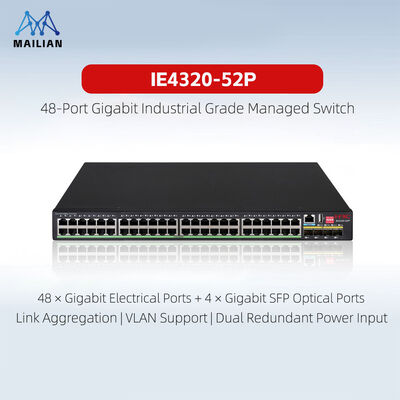

| Item | IE4320-28F | IE4320-52P | IE4320-52S |
|---|---|---|---|
| Switching Capacity | 720G/7.2Tbps | 720G/7.2Tbps | 720G/7.2Tbps |
| Packet Forwarding Rate | 256Mpps | 256Mpps | 256Mpps |
| Dimensions(W × D × H, mm) | 440×320×43.6 | 440×320×43.6 | 440×320×43.6 |
| Weight | ≤5.0kg | ≤5.0kg | ≤5.0kg |
| Installation Method | Rack-mount | Rack-mount | Rack-mount |
| Power Interface | IEC 60320 C13 | IEC 60320 C13 | IEC 60320 C13 |
| USB Port | 1 × USB Port | 1 × USB Port | 1 × USB Port |
| Configuration Port | 1 × RJ45 Console Port | 1 × RJ45 Console Port | 1 × RJ45 Console Port |
| DIP Switch | 4-way DIP switch for quick configuration | 4-way DIP switch for quick configuration | 4-way DIP switch for quick configuration |
| DI/DO | 1 × DI, 1 × DO | 1 × DI, 1 × DO | 1 × DI, 1 × DO |
| IP Rating | IP40 | IP40 | IP40 |
| Service Ports | 16 × 100/1000BASE-X SFP ports,8 × Combo ports (10/100/1000BASE-T or 100/1000BASE-X SFP),4 × 1G/10G SFP+ ports | 48 × 10/100/1000BASE-T ports,4 × 1000BASE-X SFP ports | 48 × 10/100/1000BASE-T ports,4 × 1G/10G SFP+ ports |
| Power Input | Dual redundant backup power supply | AC220V input: 100-240VAC, 50/60Hz,Max range: 85-264VAC;or DC220V input: 192-288VDC | AC220V input: 100-240VAC, 50/60Hz,Max range: 85-264VAC;or DC220V input: 192-288VDC |
| Static Power Consumption | Single AC: ≤16.0WDual AC: ≤17.0W | Single AC: 14.0WDual AC: 15.0W | Single AC: 14.0WDual AC: 15.0W |
| Full-load Power Consumption | Single AC: ≤44.0WDual AC: ≤46.0W | Single AC: 41.0WDual AC: 42.0W | Single AC: 43.0WDual AC: 44.0W |
| Heat Dissipation | Fanless, natural convection cooling | Fanless, natural convection cooling | Fanless, natural convection cooling |
| Operating Humidity | 5%～95% (Non-condensing) | 5%～95% (Non-condensing) | 5%～95% (Non-condensing) |
| Operating Temperature | -40℃～85℃ | -40℃～85℃ | -40℃～85℃ |
| Storage Temperature | -40℃～85℃ | -40℃～85℃ | -40℃～85℃ |
