| Brand Name: | H3C |
| Model Number: | IE4320 Series |
| MOQ: | 1 |
| Price: | depending on order quantity and specific model |
| Payment Terms: | T/T |
| Supply Ability: | Up to 30 days |
| IE4320 Series System Specifications | ||||||

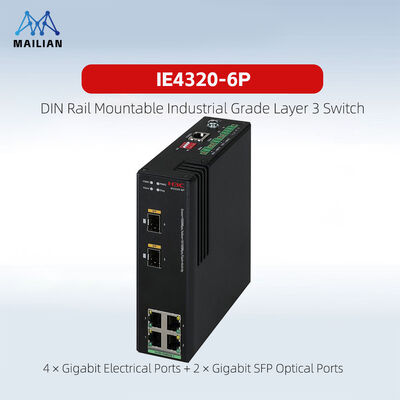

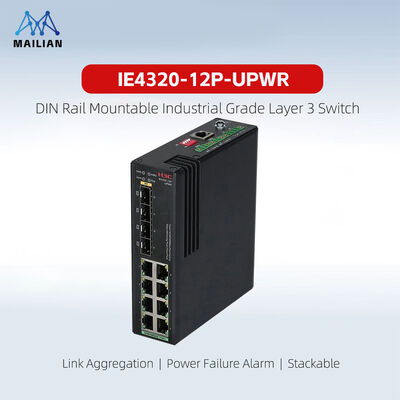

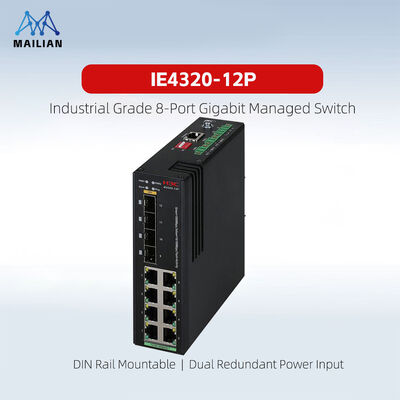

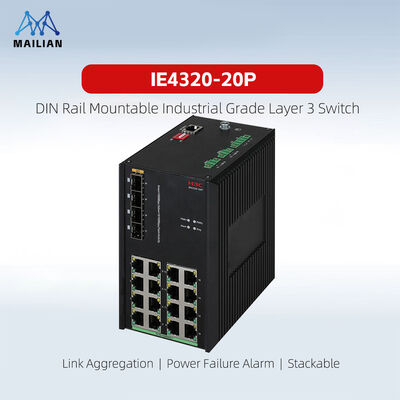

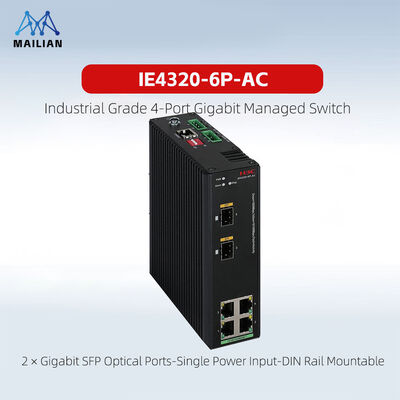

| Item | IE4320-6P | IE4320-6P-AC | IE4320-12P | IE4300-12P-PWR | IE4320-12P-UPWR | IE4320-20P |
| Switching Capacity | 672Gbps/6.72Tbps | 672Gbps/6.72Tbps | 672Gbps/6.72Tbps | 672Gbps/6.72Tbps | 672Gbps/6.72Tbps | 672Gbps/6.72Tbps |
| Packet Forwarding Rate | 102Mpps | 102Mpps | 102Mpps | 120Mpps | 102Mpps | 102Mpps |
| Dimensions (W*D*H) (mm) | 44*130*150 | 44*130*150 | 44*130*150 | 44*130*150 | 44*130*150 | 84*130*150 |
| Weight | ≤1.0kg | ≤1.0kg | ≤1.0kg | ≤1.0kg | ≤1.0kg | ≤1.6kg |
| Installation Method | DIN-Rail Mounting | DIN-Rail Mounting | DIN-Rail Mounting | DIN-Rail Mounting | DIN-Rail Mounting | DIN-Rail Mounting |
| Power Connector | Phoenix Terminal | Phoenix Terminal | Phoenix Terminal | Phoenix Terminal | Phoenix Terminal | Phoenix Terminal |
| Configuration Port | 1*RJ45 Console | 1*RJ45 Console | 1*RJ45 Console | 1*RJ45 Console | 1*RJ45 Console | 1*RJ45 Console |
| DIP Switch | 4-channel DIP switch for fast configuration | 4-channel DIP switch for fast configuration | 4-channel DIP switch for fast configuration | 4-channel DIP switch for fast configuration | 4-channel DIP switch for fast configuration | 4-channel DIP switch for fast configuration |
| DI/DO | 1*DI, 1*DO | 1*DI, 1*DO | 1*DI, 1*DO | 1*DI, 1*DO | 1*DI, 1*DO | 1*DI, 1*DO |
| IP Rating | IP41 | IP41 | IP41 | IP41 | IP40 | IP41 |
| Service Ports | 4*10/100/1000BASE-T ports,2*1000BASE-X SFP ports | 4*10/100/1000BASE-T ports,2*1000BASE-X SFP ports | 8*10/100/1000BASE-T ports,4*1000BASE-X SFP ports | 8*10/100/1000BASE-T (PoE+) ports,4*1000BASE-X SFP ports | 8*10/100/1000BASE-T (PoE++) ports,4*1000BASE-X SFP ports | 16*10/100/1000BASE-T ports,4*1000BASE-X SFP ports |
| Power Input | Dual redundant input:24~48VDC (18~55VDC) | Single input:AC220V 100-240VAC 50/60Hz (max 85-264VAC)or DC220V 192-288VDC | Dual redundant input:24~48VDC (18~55VDC) | Dual redundant input:18~57VDC18~48V for non-PoE48~57V for PoE52~57V for PoE+ | Dual redundant input:18~57VDC18~48V for non-PoE48~57V for PoE52~57V for PoE+54~57V for PoE++ | Dual redundant input:24~48VDC (18~55VDC) |
| Static Power Consumption | ≤8.0W | ≤7.0W | ≤8.0W | Single: 11WDual: 14W | Single: 13WDual: 15W | ≤9.0W |
| Full-Load Power Consumption | ≤11.0W | ≤10.0W | ≤17.0W | Single: 141W (PoE:125W)Dual: 144W (PoE:125W) | Single: 205W (PoE:160W)Dual: 420W (PoE:360W) | ≤19.0W |
| PoE | N/A | Standards: 802.3af, 802.3atMax per port: 30WTotal power: 125W | N/A | — | — | N/A |
| Heat Dissipation | Fanless, Natural Cooling | Fanless, Natural Cooling | Fanless, Natural Cooling | Fanless, Natural Cooling | Fanless, Natural Cooling | Fanless, Natural Cooling |
| Operating Humidity | 5%~95% (Non-condensing) | 5%~95% (Non-condensing) | 5%~95% (Non-condensing) | 5%~95% (Non-condensing) | 5%~95% (Non-condensing) | 5%~95% (Non-condensing) |
| Operating Temperature | -40℃~75℃ | -40℃~75℃ | -40℃~75℃ | -40℃~75℃ | -40℃~75℃ | -40℃~75℃ |
| Storage Temperature | -40℃~85℃ | -40℃~85℃ | -40℃~85℃ | -40℃~85℃ | -40℃~85℃ | -40℃~85℃ |
