H3C US200 Series 2.5G Ethernet Switch with 10G SFP+ Uplink and Web Management for Enterprise Networks

Brand Name:	H3C
Model Number:	H3C US200 series 2.5G Ethernet switches
MOQ:	1
Price:	Subject to the specific model and configuration
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Exchange Capacity:

240Gbps

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Highlight:

2.5G Ethernet switch with 10G SFP+

Enterprise network switch with web management

H3C US200 Series network switch

Product Description

H3C US200 Series 2.5G Ethernet Switches

H3C US200 series 2.5G Ethernet switches are a new generation of access simplified management 2.5G Ethernet switch products designed for the access layer. They can be widely used in network construction scenarios such as governments, small and medium-sized enterprises, schools, and gaming networks.

Product Specifications

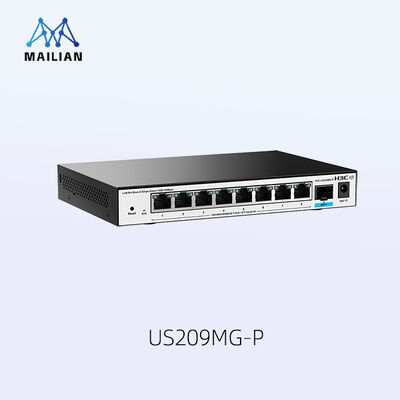

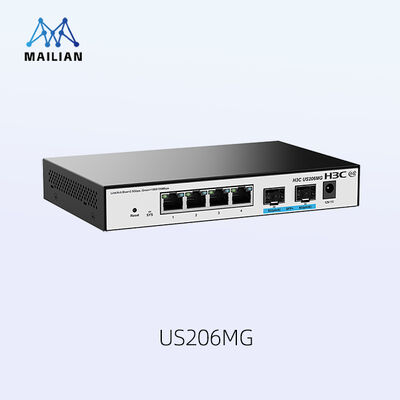

Properties	US206MG	US209MG	US209MG-P
Exchange capacity	240Gbps	240Gbps	240Gbps
Package forwarding rate	44.64Mpps	44.64Mpps	44.64Mpps
Ports	4 x 100/1000/2500 BASE-T ports + 2 x 1G/2.5G/10G SFP+ ports	8 x 100/1000/2500 BASE-T ports + 1 x 1G/2.5G/10G SFP+ port	8 x 100/1000/2500 BASE-T ports (8 PoE++ ports, single port up to 60W) + 1 x 1G/2.5G/10G SFP+ port
Port lightning protection	6KV	6KV	6KV
Ambient temperature	-5ºC～45ºC	-5ºC～45ºC	-5ºC～45ºC
Ambient humidity	5%～95%	5%～95%	5%～95%
VLAN	Port-based VLANs supported	Port-based VLANs supported	Port-based VLANs supported
DHCP	DHCP Client supported, DHCP Snooping supported	DHCP Client supported, DHCP Snooping supported	DHCP Client supported, DHCP Snooping supported
Safety features	Broadcast storm suppression, unknown unicast suppression, multicast storm suppression, black hole MAC	Broadcast storm suppression, unknown unicast suppression, multicast storm suppression, black hole MAC	Broadcast storm suppression, unknown unicast suppression, multicast storm suppression, black hole MAC
POE	Not supported	Not supported	135W
Static power consumption	0.44W	2W	5W
Typical power consumption	4W	6W	80W
Maximum power consumption	7W	10W	136W
Input voltage	Adapter input: AC: 90-264V, 47~63Hz	Adapter input: AC: 90-264V, 47~63Hz	Adapter input: AC: 90-264V, 47~63Hz
Weight	≤0.6kg	≤0.7kg	≤0.7kg
Heat dissipation	Fanless natural cooling	Fanless natural cooling	Fanless natural cooling
Dimensions (L×W×H)	180×113×28 mm	190×125×27 mm	190×125×27 mm

Key Features

Rich Port Types

The series supports "2.5G Ethernet port + 10G optical port" combinations to meet various networking needs. All 100/1000/2500 BASE-T adaptive Ethernet ports feature 2.5G line-speed forwarding capabilities.

Reliable Security Strategy

Supports broadcast storm suppression to prevent network impact from excessive broadcast packets. Configuration of black hole MAC addresses filters illegal users and ensures network security.

Easy-to-Use Network Management

WEB interface simplified management with visual port configuration reduces operational costs. Remote management via Xiaobei APP enables network status monitoring, parameter configuration, and troubleshooting anytime, anywhere.

Green Energy-Saving Design

Energy-efficient design significantly reduces power consumption and failure points. All products meet EU RoHS standards for material environmental protection and safety.

Fast Network Deployment

Automatically obtains IP addresses from gateway without configuration. Supports automatic networking between switches - scanning any switch's serial number via Xiaobei APP automatically adds all network switches to the project.

Management & Maintenance

WEB management supported
Xiaobei APP management supported
UWEB management supported
Cloud management supported
Port mirroring supported
Port self-loop detection supported
Port isolation supported
Port aggregation supported
Cat sticks supported
