H3C US210 Series Gigabit Ethernet Managed Switch with 2.5G SFP Uplink AI PoE and 4094 VLAN Support for SMB

Brand Name:	H3C
Model Number:	H3C US210 Series Ethernet Switches
MOQ:	1
Price:	Subject to the specific model and configuration
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Highlight:

H3C US210 Gigabit Ethernet managed switch

2.5G SFP uplink AI PoE switch

Managed network switch with VLAN support

Product Description

H3C US210 Series Gigabit Ethernet Managed Switch

H3C US210 series Ethernet switches are a new generation of high-performance managed switches launched by H3C Technology Co., Ltd. for the small and medium-sized commercial market, providing a complete secure access strategy, stronger network management and maintenance ease of use.

Product Models & Specifications

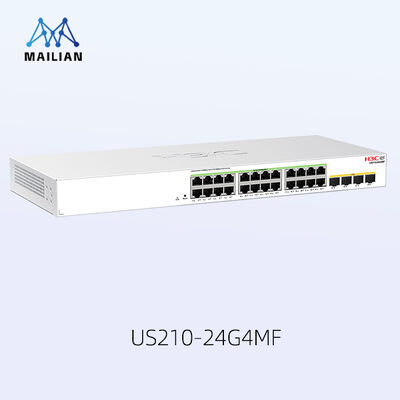

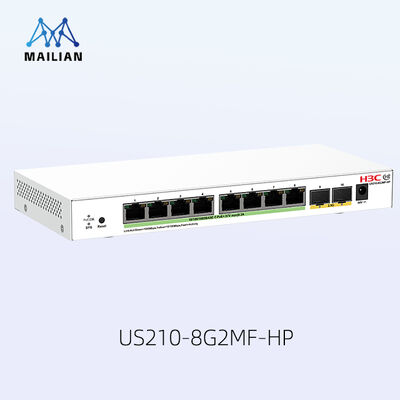

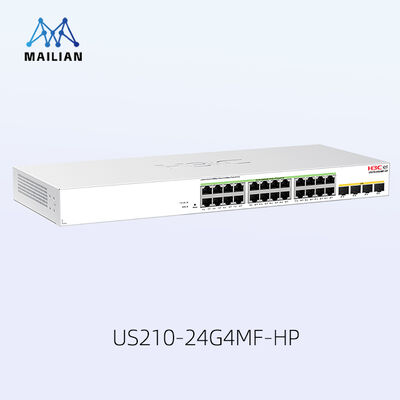

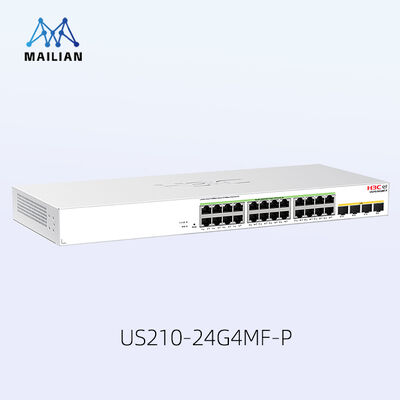

Support Features	US210-8G2MF	US210-8G2MF-HP	US210-24G4MF	US210-24G4MF-P	US210-24G4MF-HP
Exchange Capacity	396Gbps	396Gbps	396Gbps	396Gbps	396Gbps
Package Forwarding Rate	78Mpps	78Mpps	126Mpps	126Mpps	126Mpps
Fixed Port	8 x 10/100/1000 Base-T electrical ports, 2 x 2.5G/1G SFP optical ports	8 x 10/100/1000 Base-T PoE+ ports, 2 x 2.5G/1G SFP optical ports	24 x 10/100/1000 Base-T electrical ports, 4 x 2.5G/1G SFP optical ports	24 x 10/100/1000 Base-T PoE+ ports, 4 x 2.5G/1G SFP optical ports	24 x 10/100/1000 Base-T PoE+ ports, 4 x 2.5G/1G SFP optical ports
MAC Address Table	16K
Installation Method	Tabletop	Tabletop	Rack Mount	Rack Mount	Rack Mount
PoE+ Power Supply	Not Supported	Yes	Not Supported	Yes	Yes
Single-port Max PoE Power	Not Involved	30W	Not Involved	30W	30W
Max PoE Power Supply	Not Involved	130W	Not Involved	240W	370W
Static Power Consumption	0.85W	1.7W	4.6W	6W	6W
Full Load Power Consumption	4.7W	137W	16.1W	253W	387W
Input Voltage	90～264V AC	90～264V AC	90～264V AC	180～264V AC	180～264V AC
Dimensions (WDH, mm)	23510527	23510527	44017343.6	44021043.6	44021043.6
Weight	≤0.75kg	≤1.4kg	≤2.5kg	≤3.45kg	≤3.5kg
Heat Dissipation	Fanless silent design	Fan cooling	Fanless silent design	Fan cooling	Fan cooling

Technical Features

Rich Port Types

The H3C US210 series switches support the combination of "Ethernet electrical port + optical port", with full-port line-speed forwarding capability, Gigabit electrical port compatibility, and 2.5G optical port to increase bandwidth capacity. Supports static and dynamic link aggregation with four 2.5G optical port aggregation technologies reaching 10G uplink bandwidth.

Electrical Port Attributes

Support half-duplex, full-duplex, and self-negotiation work modes
Supports MDI/MDI-X

Ethernet Capabilities

Static MAC configuration
Supports MAC address learning limit (up to 16K)
Supports IEEE 802.3ad (Dynamic Link Aggregation LACP) and static port aggregation
Port isolation and port mirroring support
Support port speed limiting and ultra-long distance transmission
Support anti-loop protection

VLAN Support

Support for 802.1Q
Port-based VLANs supported
Support for 4094 VLANs

QoS Features

Support port flow control
Supports port priority-based mapping
Support 802.1P and DSCP priority mapping
Support SP/WRR/SP+WRR queue scheduling

ACL Support

Supports Layer 2 ACLs
MAC ACL support
IPv4 and IPv6 ACL support

DHCP Features

DHCP Client support
Support DHCP snooping

Safety Features

Black hole MAC support
Support broadcast message suppression
Support unknown unicast and multicast suppression
Support broadcast and multicast storm suppression

Management & Maintenance

Support H3C Xiaobei APP management
Support simple cloud management
Support UWEB network management
Support local web management
Topology display support
Support remote device reboot and single-port PoE reboot
Version upgrades and factory reset support
Ping and SNTP clock support
Support system logs

Excellent Network Management

H3C US210 series switches support Xiaobei APP management for anytime, anywhere network status viewing and troubleshooting. Support simple cloud management without building professional management servers. Support UWEB network management and local web management for easy deployment and configuration.

AI Intelligent PoE Technology

Supports IEEE 802.3af/at standard with up to 30W per port
Fast PoE: Powers PD devices within 10 seconds after switch power-on
Perpetual PoE: Maintains power supply during thermal restart
PoE Watchdog: Automatic monitoring and restart mechanism
Non-standard PoE power supply support
PoE power supply priority configuration (High/Medium/Low)

Reliability & Safety

6KV high-level lightning protection standard
Over-current and over-voltage protection
Built-in professional high-voltage power supplies
CPU attack prevention and protection
Operating temperature: 0ºC～45ºC
Storage temperature: -40ºC～70ºC
Operating humidity: 10%~90% (non-condensing)

Certifications & Standards

CQC certification
Network access license
MTBF: >400,000 hours
EU RoHS compliant

Green & Energy-Saving Design

H3C US210 series switches adopt the latest energy-saving chips and innovative architecture design solutions for low-power operation. Meets EU RoHS standards for material environmental protection and safety, reducing power consumption, failure points, and radiation to household appliance standards.
