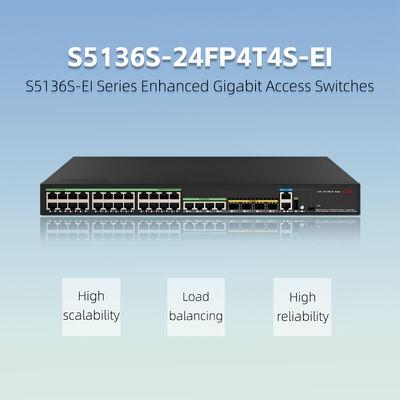

| Brand Name: | H3C |
| Model Number: | S5136S-24FP4T4S-EI |
| MOQ: | 1 |
| Price: | $475(According to the Model and configuration requirements) |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 500 |
Abundant combo ports with selectable SFP optical or GE copper mode for diverse uplink scenarios.
IRF2 stacking merges multiple units into one logical device, single‑IP management for link redundancy.
Single‑port triple‑authentication, ARP defense and EAD access control for multi‑layer LAN security.
Type‑C Console plus OOB port, ZTP zero‑touch provisioning and Cloudnet remote O&M.
10KV surge‑protected service ports, license‑free full features to reduce SME total ownership cost
| Item | S5136S‑24FP4T4S‑EI |
|---|---|
| Port Layout | 24*10/100/1000BASE‑T PoE+,4*Combo SFP,4*10/100/1000BASE‑T Combo |
| Port Switching Capacity | 56Gbps |
| Forwarding Rate | 42Mpps |
| System Switching Capacity | 336Gbps |
| CPU | Dual‑Core 1.2GHz |
| SDRAM / Flash | 2GB / 1GB |
| Dimension(H*W*D) | 44 * 440 * 260 mm |
| Full‑load Weight | ≤3.8 kg |
| Total PoE Budget | 405W |
| Cooling Mode | 2 built‑in fans |
| Latency(64‑byte) | ≤2.1μs |
| Management Interface | Console,Type‑C Console,1*GE OOB,USB |
| Max Stacking Bandwidth | 8Gbps |
| Input Voltage | AC 90‑264V |
| Operating Temperature | -5℃ ~ 50℃ |
| Virtualization | IRF2 stacking, cross‑device link aggregation |
| Routing Protocol | Static route, RIP, OSPF IPv4/IPv6 |
| Security Features | 802.1X/Portal/MAC triple‑auth, ARP defense, EAD |
| O&M Capability | Cloudnet, SmartMC, ZTP zero‑touch provisioning |
