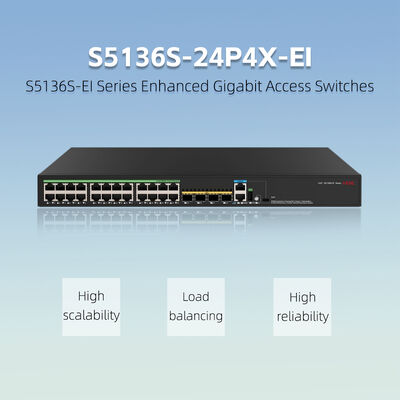

Layer 3 Managed PoE+ Ethernet Switch 24 Port Gigabit 4 SFP+ 10G Uplink 248W Budget for IP Camera Wireless AP VoIP Campus

Brand Name:	H3C
Model Number:	S5136S‑24P4X‑EI
MOQ:	1
Price:	$475(According to the Model and configuration requirements)
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	500

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Forwarding Rate:

96Mpps

Communication Mode:

Full-Duplex & Half-Duplex

Warranty:

3 Years

Ports:

24*10/100/1000 Base-T Port

Input Voltage:

Rated Voltage Range: 100 VAC To 240 VAC @ 50 Hz Or 60 Hz

Port Switching Capacity:

128Gbps

Product Type:

Campus Network Switches-Access Switch

Model Number:

S5136S‑24P4X‑EI

System Switching Capacity:

336Gbps

Dual Core, 1.2GHz

Dimension:

44 × 440 × 260 Mm

SFP+ Port:

Console Port:

Packaging Details:

Original packaging

Supply Ability:

Highlight:

24 port PoE+ managed switch

Layer 3 Gigabit Ethernet switch

10G SFP+ uplink network switch

Product Description

Gigabit L3 PoE+ Switch 24 Port 248W Power Budget 4 SFP+ 10G Uplink 10KV Surge Protection IRF2 Stacking 1U Rack Mount Switch

Key Features

24‑port PoE+ with 248W total PoE budget, support AI‑PoE, Fast‑PoE and PoE watchdog self‑healing.
Four 10G SFP+ uplink ports, gigabit access with 10G uplink for campus and branch bandwidth expansion.
IRF2 stacking supports up to 9 units as one logical device, single‑IP management with link redundancy.
Full L3 routing including static route, RIP, OSPF for IPv4/IPv6 for complex enterprise network deployment.
Single‑port triple‑authentication, ARP defense and EAD access control for enterprise LAN security.
Type‑C Console plus independent OOB port, ZTP zero‑touch provisioning, Cloudnet remote O&M.
10KV surge‑protected service ports, license‑free full features to reduce SME total ownership cost.

Technical Specifications

Item	S5136S‑24P4X‑EI
Port Layout	2410/100/1000BASE‑T PoE+, 41G/10G SFP+
Port Switching Capacity	128Gbps
Forwarding Rate	96Mpps
System Switching Capacity	336Gbps
CPU	Dual‑Core 1.2GHz
SDRAM / Flash	2GB / 1GB
Dimension(HWD)	44 * 440 * 260 mm
Full‑load Weight	≤3.6 kg
Total PoE Budget	248W
Cooling Mode	1 built‑in fan
Latency(64‑byte)	≤2.1μs
Management Interface	Console,Type‑C Console,1*GE OOB,USB
Max Stacking Bandwidth	80Gbps
Input Voltage	AC 90‑264V
Operating Temperature	-5℃ ~ 50℃
Virtualization	IRF2 stacking, cross‑device link aggregation
Routing Protocol	Static route, RIP, OSPF IPv4/IPv6
Security Features	802.1X/Portal/MAC triple‑auth, ARP defense, EAD
