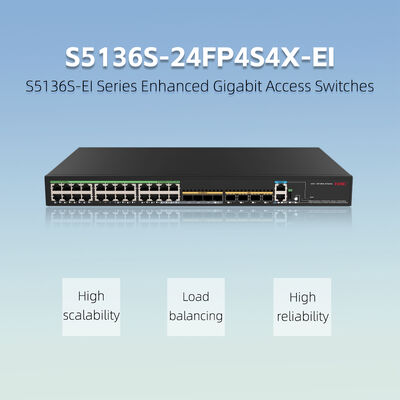

H3C S5136S-24FP4S4X-EI 24-Port 10/100/1000M Managed PoE+ Gigabit Switch with 4x 100/1000M SFP Combo and 4x 1G/10G SFP+ Uplinks

Brand Name:	H3C
Model Number:	S5136S-24FP4S4X-EI
MOQ:	1
Price:	$359(According to the Model and configuration requirements)
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	500

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Forwarding Rate:

96Mpps

Communication Mode:

Full-Duplex & Half-Duplex

Warranty:

3 Years

Ports:

24*10/100/1000 Base-T Port

Input Voltage:

Rated Voltage Range: 100 VAC To 240 VAC @ 50 Hz Or 60 Hz

Port Switching Capacity:

128Gbps

Product Type:

Campus Network Switches-Access Switch

Model Number:

S5136S-24FP4S4X-EI

System Switching Capacity:

336Gbps

Dual Core, 1.2GHz

Dimension:

44 × 440 × 260 Mm

SFP+ Port:

Console Port:

Packaging Details:

Original packaging

Supply Ability:

Product Description

H3C S5136S-24FP4S4X-EI Managed PoE+ Gigabit Ethernet Switch, 24-Port with 4x SFP Combo and 4x 1G/10G SFP+ Uplinks

Key Features

24‑port PoE+ with 405W total PoE budget, support Fast‑PoE and PoE watchdog AI self‑healing PoE.
Combo SFP plus four 10G SFP+ uplinks, flexible optical port options for campus bandwidth expansion.
IRF2 stacking supports up to 9 units as one logical device, single‑IP management with link redundancy.
Full L3 routing including static route, RIP, OSPF for IPv4/IPv6 for complex enterprise networks.
Single‑port triple‑authentication, ARP defense and EAD access control for solid LAN security.
Type‑C console plus OOB port, ZTP zero‑touch provisioning and Cloudnet remote O&M.
10KV surge‑protected ports, license‑free full features to reduce enterprise total ownership cost.

Technical Specifications

Item	S5136S‑24FP4S4X‑EI
Port Layout	2410/100/1000BASE‑T PoE+, 4Combo SFP, 4*1G/10G SFP+
Port Switching Capacity	128Gbps
Forwarding Rate	96Mpps
System Switching Capacity	336Gbps
CPU	Dual‑Core 1.2GHz
SDRAM / Flash	2GB / 1GB
Dimension(HWD)	44 * 440 * 260 mm
Full‑load Weight	≤3.6 kg
Total PoE Budget	405W
Cooling Mode	2 built‑in fans
Latency(64‑byte)	≤2.1μs
Management Interface	Console,Type‑C Console,1*GE OOB,USB
Max Stacking Bandwidth	80Gbps
Input Voltage	AC 90‑264V
Operating Temperature	-5℃ ~ 50℃
Virtualization	IRF2 stacking, cross‑device link aggregation
Routing Protocol	Static route, RIP, OSPF IPv4/IPv6
Security Features	802.1X/Portal/MAC triple‑auth, ARP defense, EAD
O&M Capability	Cloudnet, SmartMC, ZTP zero‑touch provisioning
