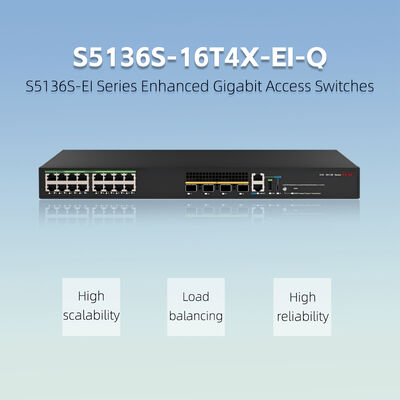

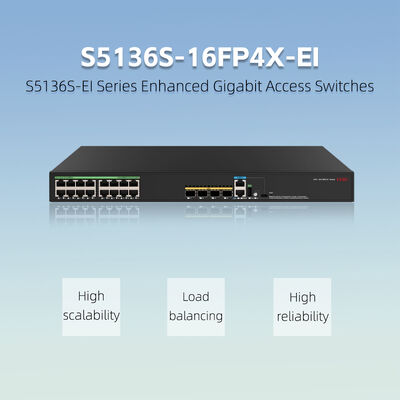

S5136S-16FP4X-EI S5136S-16T4X-EI-Q 16 Port Gigabit Switch 4x10G SFP+ Uplink IRF Stacking 10KV Surge Protection Managed

Brand Name:	H3C
Model Number:	S5136S-16FP4X-EI/S5136S-16T4X-EI-Q
MOQ:	1
Price:	$340(According to the Model and configuration requirements)
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	500

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Forwarding Rate:

84Mpps

Communication Mode:

Full-Duplex & Half-Duplex

Warranty:

3 Years

Ports:

16*10/100/1000 Base-T Port

Input Voltage:

Rated Voltage Range: 100 VAC To 240 VAC @ 50 Hz Or 60 Hz

Port Switching Capacity:

112Gbps

Product Type:

Managed Gigabit Access Switch (Layer 2, With Advanced L3 Routing)

Model Number:

S5136S-16FP4X-EI/S5136S-16T4X-EI-Q

System Switching Capacity:

336Gbps

Dual Core, 1.2GHz

Dimension:

44 × 440 × 160 Mm/ 44 × 440 × 260 Mm

SFP+ Port:

Console Port:

Packaging Details:

Original packaging

Supply Ability:

Highlight:

16 port gigabit switch with 10G SFP+ uplink

managed network switch with IRF stacking

gigabit switch with 10KV surge protection

Product Description

S5136S-16FP4X-EI S5136S-16T4X-EI-Q Gigabit Access Switch 16 Port 4x10G SFP+ Uplink L2+ Managed PoE and Non-PoE Ethernet

Key Features

High‑performance gigabit access, four 10G SFP+ uplinks for campus & branch bandwidth expansion.
IRF2 stacking up to 9 devices, single‑IP unified management and link redundancy.
Complete L3 protocols: static route, RIP, OSPF IPv4/IPv6 for complex network scenarios.
Single‑port triple‑authentication, ARP defense and EAD for solid enterprise LAN security.
Type‑C Console & OOB port, ZTP zero‑touch provisioning, Cloudnet remote O&M.
10KV surge‑proof ports, license‑free full software features to cut enterprise TCO.

Technical Specifications

Item	S5136S‑16FP4X‑EI	S5136S‑16T4X‑EI‑Q
Port Layout	1610/100/1000BASE‑T PoE+, 41G/10G SFP+	1610/100/1000BASE‑T Non‑PoE, 41G/10G SFP+
Port Switching Capacity	112Gbps	112Gbps
Forwarding Rate	84Mpps	84Mpps
System Switching Capacity	336Gbps	336Gbps
CPU	Dual‑Core 1.2GHz	Dual‑Core 1.2GHz
SDRAM / Flash	2GB / 1GB	2GB / 1GB
Dimension(HWD)	44 * 440 * 260 mm	44 * 440 * 160 mm
Full‑load Weight	≤3.6 kg	≤1.8 kg
Total PoE Budget	248W	N/A
Cooling Mode	1 built‑in fan	Fanless quiet design
Latency(64‑byte)	≤2.1μs	≤2.1μs
Management Interface	Console,Type‑C Console,1*GE OOB,USB	Console,Type‑C Console,1*GE OOB,USB
Max Stacking Bandwidth	80Gbps	80Gbps
Input Voltage	AC 90‑264V	AC 90‑264V
Operating Temperature	-5℃ ~ 50℃	-5℃ ~ 50℃
Virtualization	IRF2 stacking, cross‑device link aggregation	IRF2 stacking, cross‑device link aggregation
Routing Protocol	Static route, RIP, OSPF IPv4/IPv6	Static route, RIP, OSPF IPv4/IPv6
Security Features	802.1X/Portal/MAC triple‑auth, ARP defense	802.1X/Portal/MAC triple‑auth, ARP defense
O&M Capability	Cloudnet, SmartMC, ZTP zero‑touch provisioning	Cloudnet, SmartMC, ZTP zero‑touch provisioning
