H3C S5136S 8 ports Fanless Gigabit Access Switch With 10G SFP+ Uplink, IRF2 Stacking Supported

Brand Name:	H3C
Model Number:	S5136S-8FP4XS-EI-Q/S5136S-8T4XS-EI-Q
MOQ:	1
Price:	$252(According to the Model and configuration requirements)
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	500

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

H3C S5136S-EI Series Enhanc...et.pdf

Forwarding Rate:

45Mpps

Port Switching Capacity:

60Gbps

System Switching Capacity:

336Gbps

CPU:

Dual-Core 1.2GHz

Dimension:

44 * 266 * 161 Mm

Operating Temp:

-5℃ ~ 50℃

Packaging Details:

Original packaging

Supply Ability:

500

Highlight:

H3C S5136S 8-port Gigabit switch

Fanless network switch with 10G SFP+

IRF2 stacking supported Gigabit access switch

Product Description

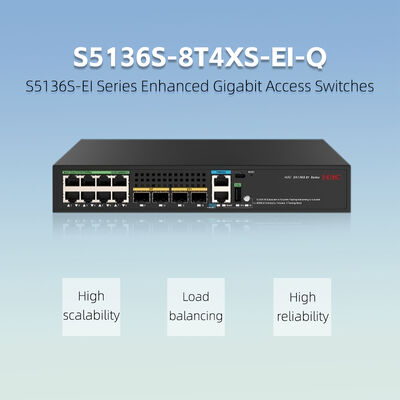

H3C S5136S 8 Ports Fanless Gigabit Access Switch With 10G SFP+ Uplink

H3C S5136S Series 8 ports Gigabit Access Switches with IRF2 stacking support, designed for enterprise network access scenarios.

Key Features

Fanless silent design - Ideal for noise-sensitive environments like classrooms, hotels, and dormitories
Dual-core 1.2GHz CPU with 2GB RAM - Supports static route, RIP and OSPF L3 routing protocols
IRF2 virtual stacking - Supports up to 9 units as one logical device, simplifying management and enhancing link redundancy
Type-C Console plus independent OOB port - ZTP zero-touch provisioning and Cloudnet remote cloud O&M supported
Comprehensive security suite - Supports 802.1X/Portal/MAC triple-authentication and ARP attack defense
Built-in SFP+ 10G uplink ports - Gigabit access with 10G uplink for high-density enterprise access
All software features included - No extra license fees, reducing network investment for SME customers

Technical Specifications

Item	S5136S-8FP4XS-EI-Q	S5136S-8T4XS-EI-Q
Port Layout	8×10/100/1000BASE-T PoE+, 2×GE SFP, 2×1G/10G SFP+	8×10/100/1000BASE-T, 2×GE SFP, 2×1G/10G SFP+
Port Switching Capacity	60Gbps	60Gbps
Forwarding Rate	45Mpps	45Mpps
System Switching Capacity	336Gbps	336Gbps
CPU	Dual-Core 1.2GHz	Dual-Core 1.2GHz
SDRAM / Flash	2GB / 1GB	2GB / 1GB
Dimension (H×W×D)	44 × 266 × 161 mm	44 × 266 × 161 mm
Full-load Weight	≤1.5 kg	≤1.1 kg
PoE Total Budget	125W	N/A
Cooling Mode	Fanless quiet design	Fanless quiet design
Latency (64-byte)	≤2.1μs	≤2.1μs
Management Port	Console, Type-C Console, 1×GE OOB, USB	Console, Type-C Console, 1×GE OOB, USB
Max Stacking Bandwidth	40Gbps	40Gbps
Input Voltage	AC 90-264V	AC 90-264V
Operating Temperature	-5℃ ~ 50℃	-5℃ ~ 50℃
Virtualization	IRF2 stacking, cross-device aggregation	IRF2 stacking, cross-device aggregation
Software Feature	Static route, RIP, OSPF, OpenFlow1.3	Static route, RIP, OSPF, OpenFlow1.3
Security	802.1X, Portal, MAC auth, ARP defense	802.1X, Portal, MAC auth, ARP defense
O&M	Cloudnet cloud management, SmartMC, ZTP	Cloudnet cloud management, SmartMC, ZTP
