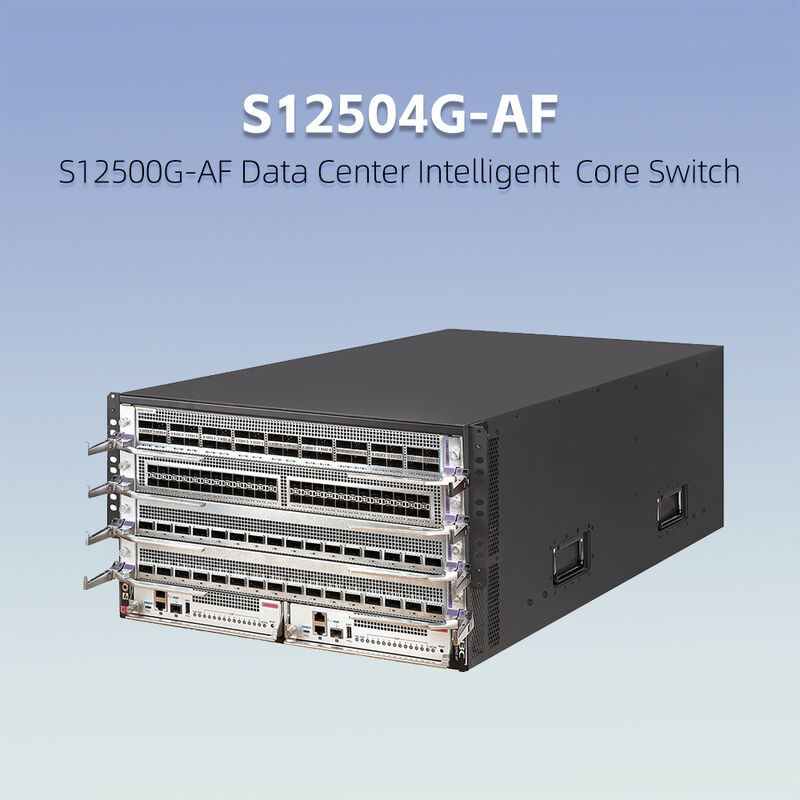

S12504G-AF Data Center Intelligent Core Switch

Brand Name:	H3C
Model Number:	S12504G-AF
MOQ:	1
Price:	$1999(According to the Model and configuration requirements)
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	500

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Port Switching Capacity:

57.6T/387Tbps

Packet Forwarding Rate:

21600Mpps

Dimensions (W×D×H, Mm):

264 X 440 X 857 Mm (6U) 10.4 X 17.3 X 33.7 In

Weight:

≤ 110 Kg ≤ 242.5 Lb

MPU Slots:

LPU Slots:

Warranty:

3 Years

Communication Mode:

Full-Duplex & Half-Duplex

Products Item:

Data Center Switches-Core Switch

Name:

H3C S12504G-AF

Packaging Details:

Original packaging

Supply Ability:

Highlight:

data center core switch

intelligent network switch

S12504G-AF core switch

Product Description

S12504G-AF Data Center Intelligent Core Switch

Key Features

Advanced CLOS+ Switching Architecture: Midplane-free, control-data plane separation with fabric, fan and power redundancy. Enables seamless bandwidth expansion for data center core networks.
Built-in AI Intelligence: Works with Seerblade AI module (T-series card required). Delivers 123 TFlops computing power and dedicated network-oriented AI algorithms for smart network operation.
Comprehensive Virtualization for Cloud DC: Supports IRF2, MDC, EVPN+VXLAN, M-LAG(DRNI) and ROCE lossless transport. Implements multi-tenant isolation and large-scale Layer-2 interconnection.
High-Availability & Energy-Saving Design: Distributed multi-engines offer millisecond fault detection and 50ms protection. Smart power and fan management cut power consumption and prolong device lifespan.

Technical Specifications

Item	S12504G-AF
Buffer	32M (T series LPU); 36M (S series LPU)
Switching capacity	57.6T/387 Tbps
Throughput	21600 Mpps
MPU slots	2
LPU slots	4
Maximum power consumption	5800 W
Weight (full configuration)	≤ 110 kg (≤ 242.5 lb)
Dimensions (H * W * D)	264 * 440 * 857 mm (6U) / 10.4 * 17.3 * 33.7 in
MPU name	LSXM1SUP04T2 / LSXM3SUP04S2
MPU processor	Quad Core 2.2 GHz
MPU SDRAM	16 GB
MPU flash	T-series:8 GB; S-series:2 GB
MPU console port	1
MPU MGMT ports	2
MPU USB port	1
Redundancy	Redundant MPUs, switching fabric modules, power modules and fan trays
Operating temperature	0 °C ~ 40 °C (32 °F ~ 104 °F)
Storage temperature	-40 °C ~ 70 °C (-40 °F ~ 158 °F)
Humidity	5%-95% (non-condensing)
Green feature	Support 802.3az Energy-Efficient Ethernet
