| Brand Name: | H3C |
| Model Number: | H3C S9825-128B |
| MOQ: | 1 |
| Price: | $81671(According to the Model and configuration requirements) |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 500 |

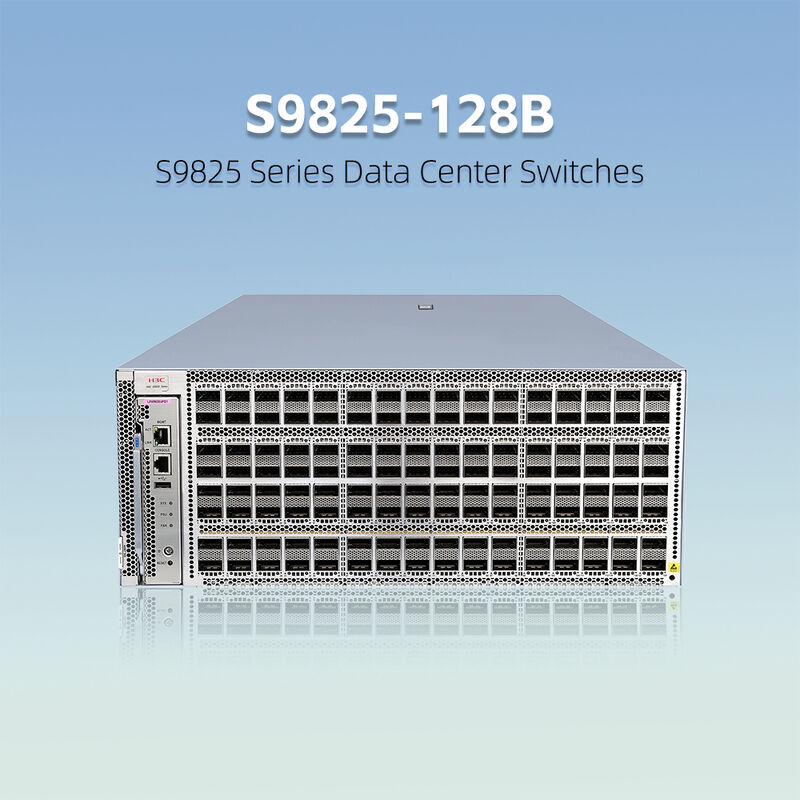

H3C S9825-128B 128-Port 200G QSFP56 Lossless Spine Switch for AIGC Compute Data Centers
| Specification | S9825-128B |
|---|---|
| Chassis Dimension (H * W * D) | 175 * 440 * 800 mm |
| Full Load Weight | ≤ 47 kg |
| Port Configuration | 128 * 200G QSFP56 optical ports |
| Switching Capacity | 51.2 Tbps |
| Packet Forwarding Rate | 10398.8 Mpps |
| Forward Latency | < 1 μs |
| Shared Packet Buffer | 56 MB |
| CPU Spec | 8-core 2.6 GHz processor |
| Storage | 240G Flash + 16G SDRAM |
| Management Interfaces | 1 Serial Console, 1 OOB GE port, 1 USB port |
| Power Slot Quantity | 4 hot-swappable redundant PSU slots |
| Fan Tray | 6 hot-swappable fans, front-to-rear airflow |
| Typical Power Consumption | 540.07 W |
| Max Power Consumption | 1708 W |
| Operating Temperature | 0°C ~ 40°C |
| Operating Humidity | 5% ~ 95% non-condensing |
| MTBF | 25.8 Years |
| MTTR | < 0.5 Hour |
| Lossless Network Suite | RoCEv2, PFC, ECN, DCBX, ETS |
| Virtualization | M-LAG (DRNI), EVPN-VXLAN |
| SDN Support | OpenFlow 1.3, NETCONF, compatible with SeerEngine-DC |
| Telemetry Tools | gRPC, ERSPAN, INT real-time flow monitoring |
| QoS Mechanism | SP/WRR/WFQ multi-queue, minimum 8Kbps CAR granularity |
