| Brand Name: | H3C |
| Model Number: | H3C S6813 Series Network Switches |
| MOQ: | 1 |
| Price: | $3288(According to the Model and configuration requirements) |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 500 |

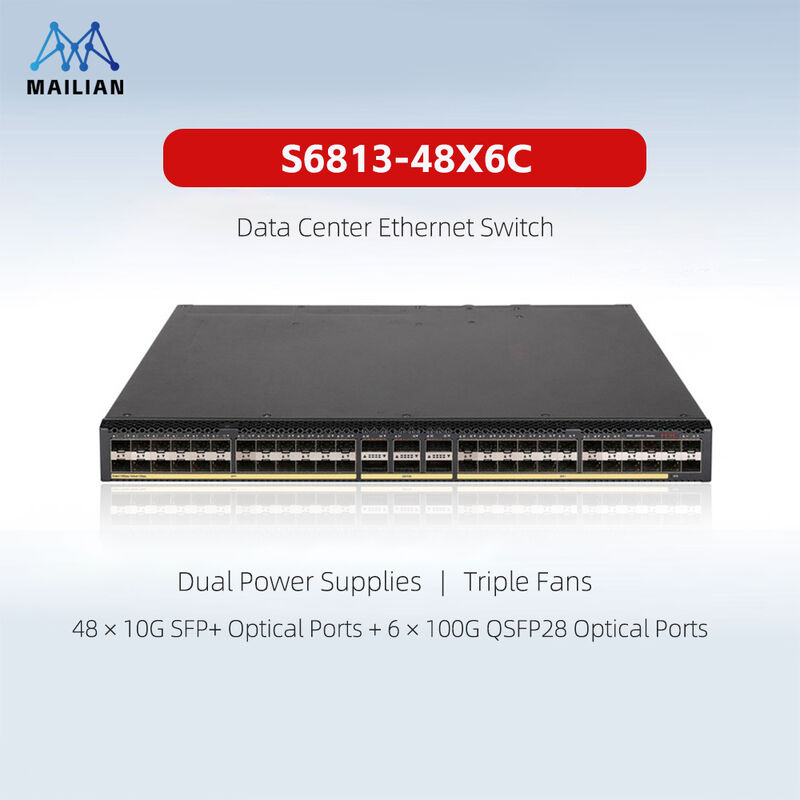

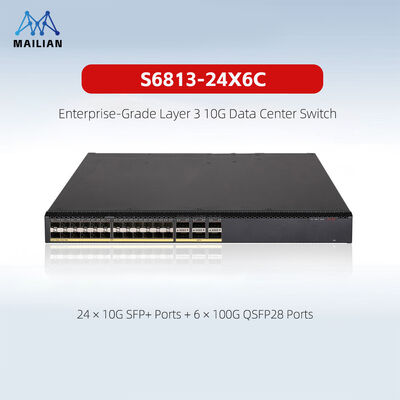

| Item | S6813-24X6C | S6813-48X6C |
|---|---|---|
| Chassis Form Factor | 2U Rack-mount | 2U Rack-mount |
| Overall Dimension (H × W × D) | 44 × 440 × 360 mm | 44 × 440 × 360 mm |
| Full Weight | ≤ 6 kg | ≤ 6.5 kg |
| Port Layout | 24 × 10G SFP+ + 6 × 100G QSFP28 | 48 × 10G SFP+ + 6 × 100G QSFP28 |
| Switching Capacity | 1680 Gbps | 2160 Gbps |
| Packet Forwarding Rate | 1050 Mpps | 1050 Mpps |
| Forward Latency | < 1 μs | < 1 μs |
| Shared Packet Buffer | 12 MB | 12 MB |
| CPU Specification | Quad-core 2.0 GHz | Quad-core 2.0 GHz |
| Storage Configuration | 1GB Flash + 4GB SDRAM | 1GB Flash + 4GB SDRAM |
| Management Interfaces | 1 Serial Console, 1 Mini USB, 1 USB, 1 GE OOB port | 1 Serial Console, 1 Mini USB, 1 USB, 1 GE OOB port |
| Power Slots | 2 hot-swappable redundant PSU slots | 2 hot-swappable redundant PSU slots |
| Input Voltage | AC 90~264V / DC -36~-72V | AC 90~264V / DC -36~-72V |
| Fan Configuration | 3 hot-swappable fans, bidirectional airflow | 3 hot-swappable fans, bidirectional airflow |
| Single AC Min Power Consumption | 38 W | 36 W |
| Single AC Max Power Consumption | 143 W | 176 W |
| MTBF | 63.4 Years | 60.8 Years |
| MTTR | 1 Hour | 1 Hour |
| Operating Temperature | 0°C ~ 45°C | 0°C ~ 45°C |
| Operating Humidity | 5%~95% non-condensing | 5%~95% non-condensing |
