| Brand Name: | H3C |
| Model Number: | H3C S6812 Series |
| MOQ: | 1 |
| Price: | $2858(According to the Model and configuration requirements) |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 500 |
The S6812/S6813 switch series has four models:

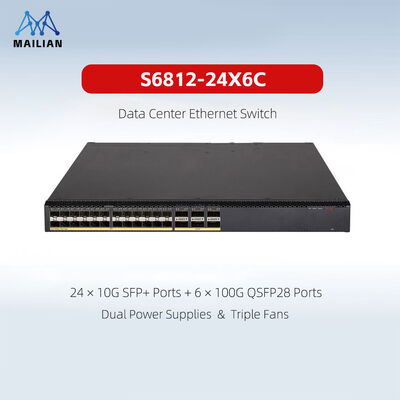

The switch provides 24 × 10G SFP Plus ports, 6 × 100G QSFP28 ports.

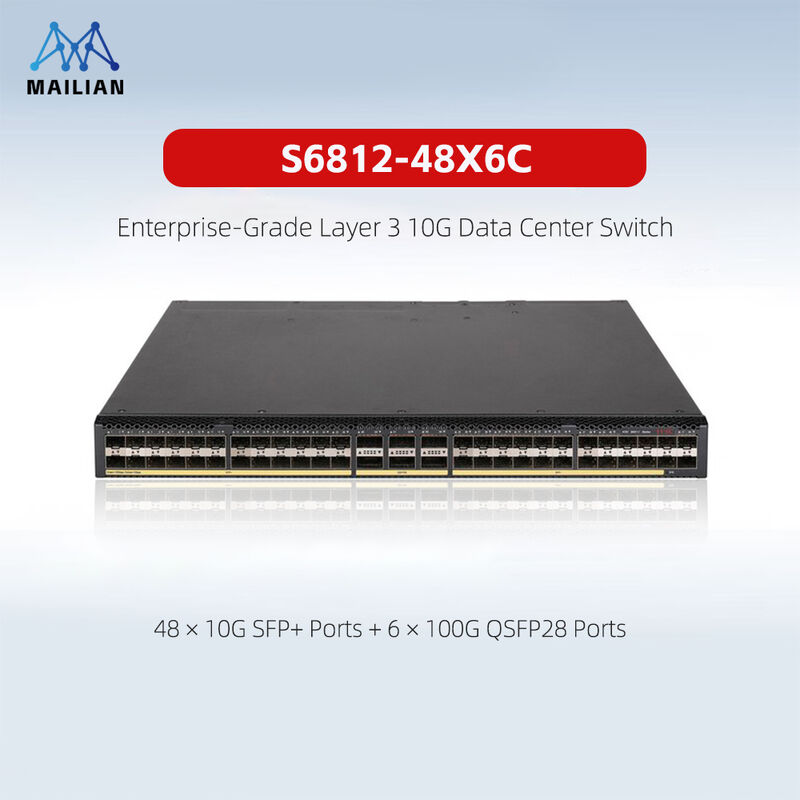

The switch provides 48 × 10G SFP Plus ports, 6 × 100G QSFP28 ports.
| Item | S6812-24X6C | S6812-48X6C |
|---|---|---|
| Chassis Form Factor | 2U Rack-mount | 2U Rack-mount |
| Dimensions (H × W × D) | 44 × 440 × 360 mm | 44 × 440 × 360 mm |
| Full Weight | ≤5.5 kg | ≤6 kg |
| Port Layout | 24 × 10G SFP+ + 6 × 100G QSFP28 | 48 × 10G SFP+ + 6 × 100G QSFP28 |
| Switching Capacity | 1680 Gbps | 2160 Gbps |
| Packet Forwarding Rate | 600 Mpps | 600 Mpps |
| Forwarding Latency | ＜1 μs | ＜1 μs |
| Shared Packet Buffer | 10 MB | 10 MB |
| CPU Configuration | Quad-core 2.0 GHz | Quad-core 2.0 GHz |
| Storage | 1GB Flash + 4GB SDRAM | 1GB Flash + 4GB SDRAM |
| Management Interfaces | 1 Serial Console, 1 Mini USB, 1 USB, 1 GE out-of-band copper port | 1 Serial Console, 1 Mini USB, 1 USB, 1 GE out-of-band copper port |
| Power Slots | 2 hot-swappable redundant PSU slots | 2 hot-swappable redundant PSU slots |
| Power Input Range | AC:90~264V; DC:-36~-72V | AC:90~264V; DC:-36~-72V |
| Fan Module | 3 hot-swappable fans, bidirectional airflow (front-to-rear / rear-to-front) | 3 hot-swappable fans, bidirectional airflow |
| Min Power Consumption (Single AC) | 29 W | 29 W |
| Max Power Consumption (Single AC) | 131 W | 143 W |
| MTBF | 63.4 Years | 60.8 Years |
| MTTR | 1 Hour | 1 Hour |
| Operating Temperature | 0°C ~ 45°C | 0°C ~ 45°C |
| Operating Humidity | 5%~95% non-condensing | 5%~95% non-condensing |
| Lossless Network Suite | RoCEv2, PFC, ECN, DCBX, ETS | RoCEv2, PFC, ECN, DCBX, ETS |
| Virtualization Protocols | IRF2, DRNI(M-LAG), EVPN-VXLAN | IRF2, DRNI(M-LAG), EVPN-VXLAN |
| SDN Support | OpenFlow 1.3, NETCONF, Python/Ansible API | OpenFlow 1.3, NETCONF, Python/Ansible API |
| Traffic Monitoring | sFlow, ERSPAN Remote Mirror, gRPC Telemetry | sFlow, ERSPAN Remote Mirror, gRPC Telemetry |
| Security Features | uRPF, ARP/DDoS defense, multi-layer ACL, IP-MAC-Port binding | uRPF, ARP/DDoS defense, multi-layer ACL, IP-MAC-Port binding |
