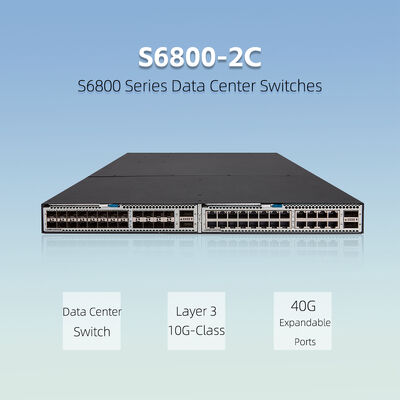

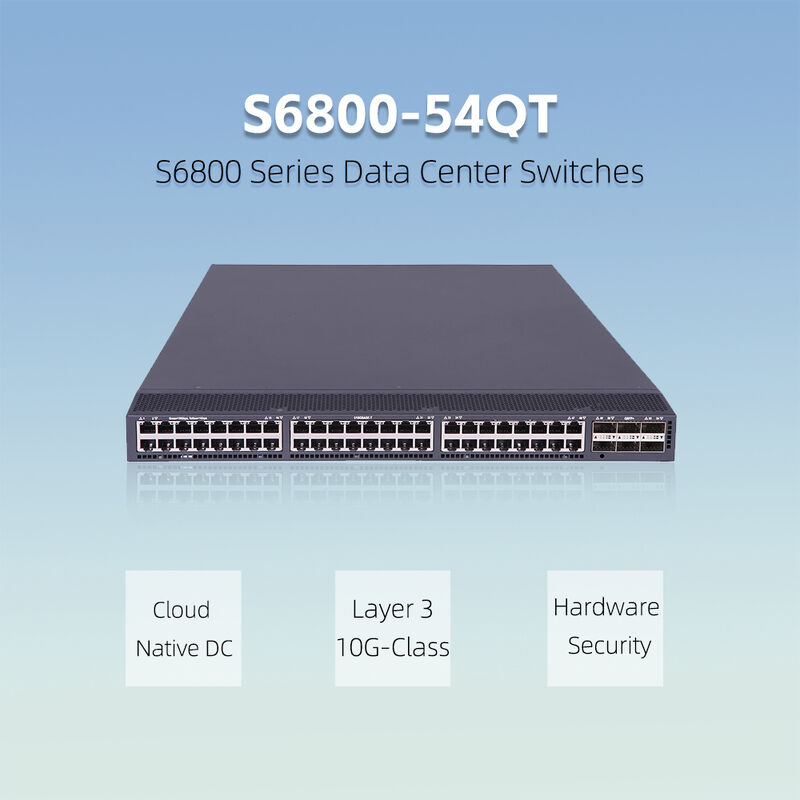

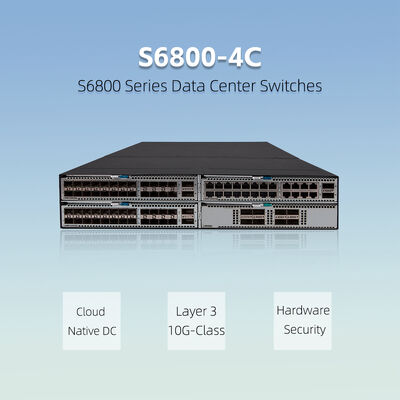

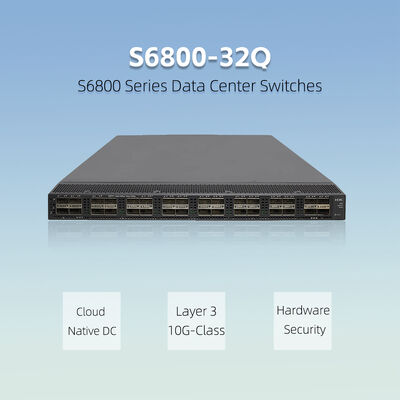

H3C S6800 Series 10G/40G/100G Modular TOR Switches EVPN Lossless Cloud Data Center Access & Aggregation Switches

Dimensions

(H * W * D)

44*440*460mm

1.73*17.32*18.11in

43.6*440*660mm

1.72*17.32*18.11in

44.2*440*660mm

1.74*17.32*18.11in

88.1*440*660mm

3.4*17.32*18.11in

Weight

≤13kg (28.66 lb)

≤13kg (28.66 lb)

≤16Kg (35.27 lb)

≤27Kg (59.52 lb)

Serial console port

1

1

1

1

Out-of-band management port

One GE copper port and one GE fiber port

One GE copper port and one GE fiber port

One GE copper port and one GE fiber port

One GE copper port and one GE fiber port

Mini USB console port

1

1

1

1

USB port

1

1

1

1

QSFP+ port

6

32

2

-

SFP port

-

-

-

-

1/10GBASE-T port

48

-

-

-

Expansion slot

-

-

2

4

CPU

1GHz@2Core

1GHz@2Core

1GHz@2Core

1GHz@2Core

Flash/SDRAM

1GB/4GB

1GB/4GB

1GB/4GB

1GB/4GB

Latency

<1μs

<1μs

<1μs

<1μs

Switching capacity

1.44Tbps

2.56Tbps

1.44Tbps

2.56Tbps

Forwarding capacity

1080Mpps

1440Mpps

1080Mpps

1440Mpps

Buffer(byte)

16M

16M

16M

16M

Related voltage range

100V to 240V AC, 50/60Hz Maximum voltage range: 90V to 290V AC,

100V to 240V AC, 50/60Hz Maximum voltage range: 90V to 290V AC,

100V to 240V AC, 50/60Hz Maximum voltage range: 90V to 290V AC,

100V to 240V AC, 50/60Hz Maximum voltage range: 90V to 290V AC,

DC-input voltage

Related voltage range: -38.4V to -72V DC

Related voltage range: -38.4V to -72V DC

Related voltage range: -38.4V to -72V DC

Related voltage range: -38.4V to -72V DC

Power module slot

2

2

2

4

Fan tray slot

Five hot-swappable fan

Two hot-swappable fan

Air flow direction

From front to rear or from rear to front

From front to rear or from rear to front

From front to rear or from rear to front

From front to rear or from rear to front

Static power consumption

Single AC:103W

Dual AC:109W

Single DC:107W

Dual DC:113W

Single AC: 132W

Dual AC: 145W

Single DC: 128W

Dual DC: 142W

Single AC: 95W

Dual AC: 110W

Single DC: 91W

Dual DC: 105W

Dual AC: 135W

Three AC: 150W

Four AC: 165W

Dual DC: 131W

Three DC: 145W

Four DC: 155W

Typical power consumption

Single AC:103W

Dual AC:109W

Single DC:107W

Dual DC:113W

Single AC: 291W

Dual AC: 301W

Single DC: 291W

Dual DC: 299W

Single AC:439W

Dual AC: 450W

Single DC:443W

Dual DC: 445W

Dual AC: 827W

Three AC: 837W

Four AC: 856W

Dual DC: 823W

Three DC: 825W

Four DC: 828W

Maximum heat consumption

(BTU/hour)

Single AC:351W

Dual AC:372W

Single DC:365W

Dual DC:385W

Single AC: 993W

Dual AC: 1027W

Single DC: 993W

Dual DC: 1020W

Single AC:1498W

Dual AC:1535W

Single DC:1511W

Dual DC: 1518W

Dual AC: 2822W

Three AC: 2856W

Four AC: 2920W

Dual DC: 2808W

Three DC: 2815W

Four DC: 2825W

Operating temperature

0°C to 45°C (32°F to 113°F)

0°C to 45°C (32°F to 113°F)

0°C to 45°C (32°F to 113°F)

0°C to 45°C (32°F to 113°F)

Operating humidity

5% to 95%, noncondensing

5% to 95%, noncondensing

5% to 95%, noncondensing

5% to 95%, noncondensing

MTBF(year)

46.93

41.1

47.2

45.96

MTTR(hour)

1

1

1

1
