| Brand Name: | H3C |
| Model Number: | S6805-54HF/S6805-54HT |
| MOQ: | 1 |
| Price: | $4052(According to the Model and configuration requirements) |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 500 |
S6805 high-density intelligent switch series is developed for data centers and cloud computing networks. It provides powerful hardware forwarding capacity and abundant data center features. The switch supports modular power modules and fan trays. By using different fan trays, the switch can provide field-changeable airflows.
|
Model |

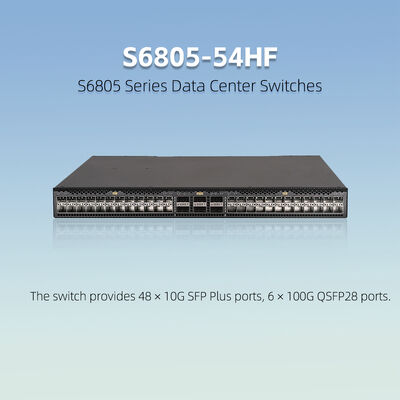

S6805-54HF |

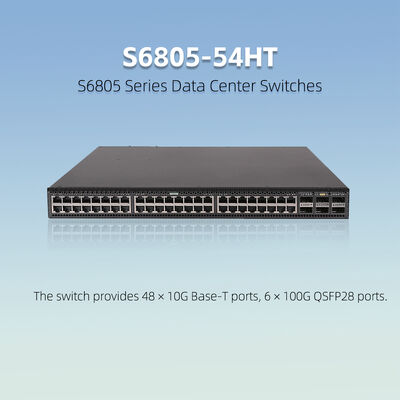

S6805-54HT |
|---|---|---|
|
PID |
LS-6805-54HF-H2 |
LS-6805-54HT-H2 |
|
Dimensions (H * W * D) |
44* 440 * 400 mm (1.74*17.32*15.74 in) |
44 * 440 * 460 mm (1.74*17.32*18.11 in) |
|
Weight |
≤ 10 kg (22.04 lb) |
≤ 10 kg (22.04 lb) |
|
Serial console port |
1 |
|
|
Out-of-band management port |
One GE copper port and one GE fiber port |
|
|
Mini USB console port |
1 |
|
|
USB port |
1 |
|
|
100G QSFP28/40G QSFP+ port |
6 |
|
|
10G SFP+/ 1G SFP port |
48 |
N/A |
|
1G/10G Base-T port |
N/A |
48 |
|
CPU |
LS-6805-54HF: C2000,2.4 GHz@4 Cores LS-6805-54HF-H2: C3000,2.2GHz@4Core |
LS-6805-54HT:C2000, 2.4 GHz@4 Cores LS-6805-54HT-H2: C3000,2.2GHz@4Core |
|
Flash/ SDRAM |
4G/8G |
|
|
Latency |
< 800 ns (64 byte) |
|
|
Switching capacity |
2.16 Tbps |
|
|
Forwarding capacity |
1001.7 Mpps |
|
|
Buffer |
32M |
|
|
AC-input voltage |
90v AC to 290v AC |
|
|
DC-input voltage |
–36v DC to –72v DC |
|
|
Power module slot |
2 |
|
|
Fan tray slot |
5 Hot-swappable fan, fan speed adjustable and wind invertible. (3+2 redundancy) |
|
|
Air flow direction |
From front to rear or from rear to front |
|
|
Typical power consumption |
PSR250-12A/PSR250-12A1: · Single AC input: 120 W · Dual AC inputs: 127 W PSR450-12A/PSR450-12A1: · Single AC input: 120 W · Dual AC inputs: 127 W PSR450-12D: · Single DC input: 130 W · Dual DC inputs: 135 W |
PSR450-12A/PSR450-12A1: · Single AC input: 174 W · Dual AC inputs: 181 W PSR450-12D: · Single DC input: 177 W · Dual DC inputs: 188 W |
|
Maximum power consumption |
PSR250-12A/PSR250-12A1: · Single AC input: 208 W · Dual AC inputs: 213 W PSR450-12A/PSR450-12A1: · Single AC input: 208 W · Dual AC inputs: 213 W PSR450-12AHD: · Single DC input: 202 W · Dual DC inputs: 214 W PSR450-12D: · Single DC input: 207 W · Dual DC inputs: 217 W |
PSR450-12A/PSR450-12A1: · Single AC input: 222 W · Dual AC inputs: 229 W PSR450-12AHD: · Single DC input: 225 W · Dual DC inputs: 233 W PSR450-12D: · Single DC input: 230 W · Dual DC inputs: 236 W |
|
MTBF(years) |
35.4 |
|
|
MTTR(hours) |
1 |
|
|
Operating temperature |
0°C to 45°C (32°F to 113°F) |
|
|
Operating humidity (noncondensing) |
5% RH to 95% RH, noncondensing |
|
