H3C S6800 Series Data Center Switch with 10GE/40GE/100GE/FC/FCoE/Ethernet Ports and 1.44Tbps~2.56Tbps Switching Capacity Featuring VXLAN and EVPN Support

All Category

Optical Modules

Mr. vincentwei

vincentwei@mailian-it.com

+86 13094125588

Vincentwei_mailian

Chat Now

H3C S6800 Series Data Center Switch with 10GE/40GE/100GE/FC/FCoE/Ethernet Ports and 1.44Tbps~2.56Tbps Switching Capacity Featuring VXLAN and EVPN Support

Brand Name:	H3C
Model Number:	S6800 Series
MOQ:	1
Price:	depending on order quantity and specific model
Payment Terms:	T/T
Supply Ability:	Up to 30 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE/FCC/ISED/VCCI/RCM/CCC

Document:

1GHz@2Core

Flash/SDRAM:

1GB/4GB

Switching Capacity:

1.44Tbps~2.56Tbps

Forwarding Capacity:

1080Mpps~1440Mpps

Buffer(byte):

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Supply Ability:

Up to 30 days

Highlight:

H3C S6800 data center switch

10GE 40GE 100GE network switch

VXLAN EVPN support switch

Product Description

H3C S6800 Series Data Center Switch

H3C S6800 series switch is H3C self-developed cloud ready data center intelligent switches. The S6800 series switch delivers cloud ready features, such as VXLAN, OpenFlow and EVPN, providing a rich set of features for data centers. As the most compact formed 10G/40G/100G solution in the industry, the S6800 series switch is perfectly matched for high density 10GE access or 40G/100G aggregation in intelligent data centers and cloud computing networks. The S6800 series switch can also fit nicely as the TOR switch of overlay networks.

Hardware Specifications

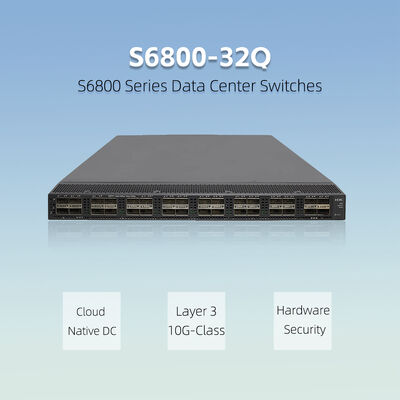

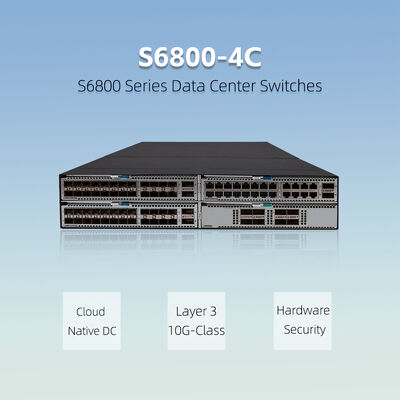

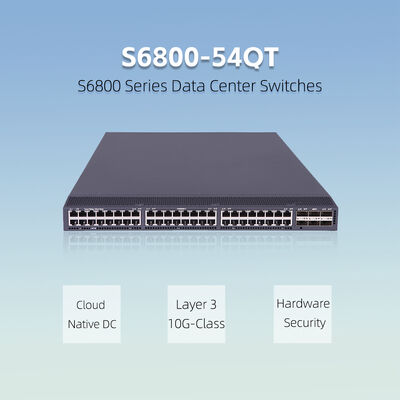

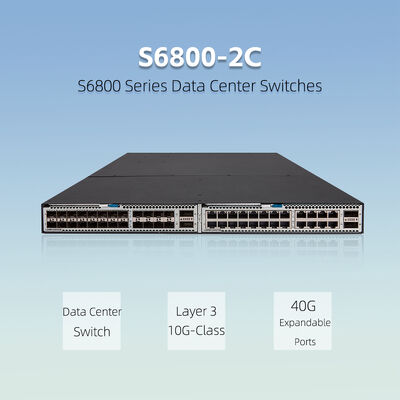

Item	S6800-54QT	S6800-32Q	S6800-2C	S6800-4C
Dimensions (H × W × D)	44×440×460mm 1.73×17.32×18.11in	43.6×440×660mm 1.72×17.32×18.11in	44.2×440×660mm 1.74×17.32×18.11in	88.1×440×660mm 3.4×17.32×18.11in
Weight	≤13kg (28.66 lb)	≤13kg (28.66 lb)	≤16Kg (35.27 lb)	≤27Kg (59.52 lb)
Serial console port	1	1	1	1
Out-of-band management port	One GE copper port and one GE fiber port	One GE copper port and one GE fiber port	One GE copper port and one GE fiber port	One GE copper port and one GE fiber port
Mini USB console port	1	1	1	1
USB port	1	1	1	1
QSFP+ port	6	32	2	-
SFP port	-	-	-	-
1/10GBASE-T port	48	-	-	-
Expansion slot	-	-	2	4
CPU	1GHz@2Core	1GHz@2Core	1GHz@2Core	1GHz@2Core
Flash/SDRAM	1GB/4GB	1GB/4GB	1GB/4GB	1GB/4GB
Latency	<1μs	<1μs	<1μs	<1μs
Switching capacity	1.44Tbps	2.56Tbps	1.44Tbps	2.56Tbps
Forwarding capacity	1080Mpps	1440Mpps	1080Mpps	1440Mpps
Buffer(byte)	16M	16M	16M	16M
AC voltage range	100V to 240V AC, 50/60Hz Maximum: 90V to 290V AC	100V to 240V AC, 50/60Hz Maximum: 90V to 290V AC	100V to 240V AC, 50/60Hz Maximum: 90V to 290V AC	100V to 240V AC, 50/60Hz Maximum: 90V to 290V AC
DC-input voltage	-38.4V to -72V DC	-38.4V to -72V DC	-38.4V to -72V DC	-38.4V to -72V DC
Power module slot	2	2	2	4
Fan tray slot	Five hot-swappable fan	Two hot-swappable fan	Two hot-swappable fan	Two hot-swappable fan
Air flow direction	From front to rear or from rear to front	From front to rear or from rear to front	From front to rear or from rear to front	From front to rear or from rear to front
Static power consumption	Single AC:103W Dual AC:109W Single DC:107W Dual DC:113W	Single AC: 132W Dual AC: 145W Single DC: 128W Dual DC: 142W	Single AC: 95W Dual AC: 110W Single DC: 91W Dual DC: 105W	Dual AC: 135W Three AC: 150W Four AC: 165W Dual DC: 131W Three DC: 145W Four DC: 155W
Typical power consumption	Single AC:103W Dual AC:109W Single DC:107W Dual DC:113W	Single AC: 291W Dual AC: 301W Single DC: 291W Dual DC: 299W	Single AC:439W Dual AC: 450W Single DC:443W Dual DC: 445W	Dual AC: 827W Three AC: 837W Four AC: 856W Dual DC: 823W Three DC: 825W Four DC: 828W
Maximum heat consumption (BTU/hour)	Single AC:351W Dual AC:372W Single DC:365W Dual DC:385W	Single AC: 993W Dual AC: 1027W Single DC: 993W Dual DC: 1020W	Single AC:1498W Dual AC:1535W Single DC:1511W Dual DC: 1518W	Dual AC: 2822W Three AC: 2856W Four AC: 2920W Dual DC: 2808W Three DC: 2815W Four DC: 2825W
Operating temperature	0°C to 45°C (32°F to 113°F)	0°C to 45°C (32°F to 113°F)	0°C to 45°C (32°F to 113°F)	0°C to 45°C (32°F to 113°F)
Operating humidity	5% to 95%, noncondensing	5% to 95%, noncondensing	5% to 95%, noncondensing	5% to 95%, noncondensing
MTBF(year)	46.93	41.1	47.2	45.96
MTTR(hour)	1	1	1	1

Software Specifications

Item	Feature Description
Device virtualization	IRF M-LAG(DRNI) S-MLAG
Network virtualization	BGP-EVPN VxLAN EVPN ES
VXLAN	L2 VxLAN gateway L3 VxLAN gateway Distributed VxLAN gateway Centrilized VxLAN gateway EVPN VxLAN manual configured VxLAN IPv4 VxLAN tunnel QinQ VxLAN access
SDN	H3C SeerEngine-DC
Lossless network	PFC and ECN DCBX RDMA and ROCE PFC deadlock watchdog
Traffic analysis	Sflow
Programmability	Ansible Python//TCL/Restful API to realize DevOps automated operation and maintenance
Programmability	Openflow1.3 Netconf
VLAN	Port-based VLANs Mac-based VLAN, Subnet-based VLAN and Protocol VLAN VLAN mapping QinQ MVRP(Multiple VLAN Registration Protocol) Super VLAN PVLAN
MAC address	Dynamic learning and aging of mac address entries Dynamic,static and blackhole entries Mac address limiting on ports
IPv4 routing	Static routing and default routing RIP(Routing Information Protocol) v1/2 OSPF (Open Shortest Path First) v1/v2 ISIS(Intermediate System to Intermediate system) BGP (Border Gateway Protocol) Routing policy VRRP PBR
IPv6 routing	Static routing and default routing RIPng OSPF v3 IPv6 IS IS BGP4+ Routing policy VRRP PBR
MPLS/VPLS	Support L3 MPLS VPN Support L2 VPN: VLL (Martini, Kompella) Support MCE Support MPLS OAM Support VPLS, VLL Support hierarchical VPLS and QinQ+VPLS access Support P/PE function Support LDP protocol
MPLS/VPLS	IGMP snooping MLD snooping IPv4 and IPv6 multicast VLAN IPv4 and IPv6 PIM snooping IGMP and MLD PIM and IPv6 PIM MSDP Muticast vlan Muticast VPN
Reliability	LACP STP/RSTP/MSTP protocol, PVST compatible STP Root Guard and BPDU Guard RRPP and ERPS Ethernet OAM Smartlink DLDP BFD for OSPF/OSPFv3, BGP/BGP4, IS-IS/IS-ISv6, PIM/IPM for IPv6 and Static route VRRP and VRRPE
FC/FOCE	FC, FC subcard is supported on S6800-2C/S6800-4C FCOE
QoS	Weighted Random Early Detection (WRED) and tail drop Flexible queue scheduling algorithms based on port and queue, including strict priority (SP), Weighted Deficit Round Robin (WDRR), Weighted Fair Queuing (WFQ), SP + WDRR, and SP + WFQ. Traffic shaping Packet filtering at L2 (Layer 2) through L4 (Layer 4); flow classification based on source MAC address, destination MAC address, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, port, protocol, and VLAN to apply qos policy,including mirroring,redirection,priority remark etc. Committed access rate (CAR) Account by packet and byte COPP
Telemetry	gRPC ERSPAN Packet capture
Configuration and maintenance	Console telnet and SSH terminals SNMPv1/v2/v3 ZTP System log File upload and download via FTP/TFTP BootRom update and remote update NQA ping,tracert NTP PTP(1588v2) GIR Graceful Insertion and Removal
Security and management	Macsec, Macsec subcard is supported on S6800-2C/4C, and only 100G macsec subcard can support 256-bit AES encryption Hierarchical management and password protection of users Authentication methods,including AAA,RADIUS and HWTACACS Support DDos, ARP attack and ICMP attack function IP-MAC-port binding and IP Source Guard SSH 2.0 HTTPS SSL PKI Boot ROM access control (password recovery) RMON
EMC	FCC Part 15 Subpart B CLASS A ICES-003 CLASS A VCCI CLASS A CISPR 32 CLASS A EN 55032 CLASS A AS/NZS CISPR32 CLASS A CISPR 24 EN 55024 EN 61000-3-2 EN 61000-3-3 ETSI EN 300 386 GB/T 9254 YD/T 993
IEEE standard	802.3x/802.3ad/802.3AH/802.1P/802.1Q/802.1X/802.1D/802.1w/802.1s/802.1AG 802.1x/802.1Qbb/802.1az/802.1Qaz
Safety	UL 60950-1 CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1 AS/NZS 60950-1 FDA 21 CFR Subchapter J GB 4943.1

Flexible Port Combination

H3C S6800-2/4C support various types of interface cards, enabling mixed configuration of high-density 10GE optical and copper port / 40GE / 100GE/MACsec/FC interface. For S6800-4C, it can support up to 96 10GE ports and 8 40GE ports, or 32 40GE high-speed interfaces.

Data Center-Oriented Features

VXLAN Support

Provides higher scalability of Layer 2 segmentation and better utilization of available network paths.

MP-BGP EVPN

Runs as VXLAN control plane to simplify configuration, eliminate traffic flooding and reduce full mesh requirements between VTEPs.

FCoE Support

Permits storage, data, and computing services transmission on one network, reducing construction and maintenance costs.

Fiber Channel Interface

S6800-2C/4C support FC interface cards, with ports switchable to FC for interoperability with FC SAN.

Data Center Bridging

Supports PFC, ETS and DCBX to ensure low latency and zero packet loss for FC storage and high-speed computing services.

TRILL Technology

Enables building large, high-performance, scalable cloud data center networks supporting live virtual machines.

H3C Distributed Resilient Network Interconnection (DRNI)

H3C S6800 series switch support DRNI, which enables links of multiple switches to aggregate into one to implement device-level link backup. DRNI is applicable to servers dual-homed to a pair of access devices for node redundancy.

Streamlined topology: DRNI simplifies the network topology and spanning tree configuration by virtualizing two physical devices into one logical device.
Independent upgrading: The DR member devices can be upgraded independently one by one to minimize the impact on traffic forwarding.
High availability: The DR system uses a keepalive link to detect multi-active collision to ensure that only one member device forwards traffic after a DR system splits.

RoCE (RDMA over Converged Ethernet)

Remote Direct Memory Access (RDMA) directly transmits user application data to the storage space of servers, using the network to fast transmit data from local system to remote system storage. RDMA eliminates multiple data copying and context switching operations, reducing CPU load.

RoCE supports RDMA on standard Ethernet infrastructures. H3C S6800 switch support RoCE and can be used to build a lossless Ethernet network to ensure zero packet loss. RoCE includes key features: PFC (Priority based Flow Control), ECN (Explicit Congestion Notification), DCBX (Data Center Bridging Capability Exchange Protocol), and ETS (Enhanced Transmission Selection).

Powerful SDN Capacity

H3C S6800 series switch adopt next-generation chip with flexible OpenFlow, more resources and accurate ACL matching, greatly improving software-defined network (SDN) capabilities to meet data center SDN network demands.

H3C S6800 series switch support standard OpenFlow protocol, which can be integrated and managed by H3C VCFC controller, H3C cloud, mainstream cloud platforms, or third-party controllers to support flexible network customization and automated management. Users and third-party controllers can use standard interfaces to develop and deploy dedicated network management strategies for rapid business deployment, functional expansion, and intelligent device management.

MACsec Security

H3C S6800 series switch supports hardware level encryption technology MACsec (802.1ae), an industry-standard security technology that provides secure communication for all traffic on Ethernet links. Compared with traditional application-based software encryption, MACsec provides point-to-point security on Ethernet links between directly connected nodes and is capable of identifying and preventing most security threats.

Outstanding Security Control Policies

H3C S6800 series switch supports AAA, RADIUS and user account based authentication, IP, MAC, VLAN, port-based user identification, dynamic and static binding. When working with the H3C iMC platform, it can conduct real-time management, instant diagnosis and crackdown on illicit network behavior.

Enhanced ACL control logic enables enormous amounts of inbound and outbound ACL, and delegate VLAN based ACL, simplifying user deployment and avoiding ACL resource wastage. S6800 switch series also supports Unicast Reverse Path Forwarding (uRPF), performing reverse checks to verify packet source addresses and dropping packets if paths don't exist, curbing originating address spoofing.

Flexible Airflow Design

To cope with data center cooling aisle design, the H3C S6800 series switch comes with flexible airflow design, featuring bi-cooling aisles in the front and back. Users may choose airflow direction (from front to back or vice versa) by selecting different fan trays.

Multiple Reliability Features

H3C S6800 series switch provides multiple reliability protection at both switch and link levels. With overcurrent, overvoltage, and overheat protection, all models have redundant pluggable power modules, enabling flexible configuration of AC or DC power modules based on actual needs. The entire switch supports fault detection and alarm for power supply and fan, allowing fan speed to change to suit different ambient temperatures.

Excellent Manageability

H3C S6800 series switch provides rich management interfaces, including console, external network and USB. Management protocols such as SNMPv1/v2/v3 are supported aside from iMC Management Console. Network administrators may activate control through CLI, TELNET, SSH, SNMP, RESTful API, providing maximum flexibility in accessing and managing devices. Administrators may also choose SSH2.0 and SSL encryption to shield management sessions.
