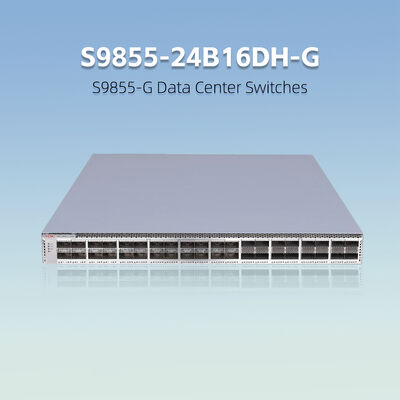

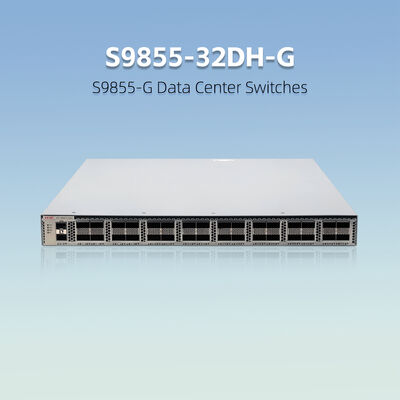

H3C S9855-G Series 400G 200G High-Density Lossless Data Center Switches for AI Compute Spine Backbone

All Category

Network Switch

Network Rack Server

Network Router

Wireless Access Point

Enterprise Storage

Network Storage

Network Firewall

Optical Modules

Ms. Helen

Helen@mailian-it.com

+86 15217068581

+86 15217068581

Chat Now

H3C S9855-G Series 400G 200G High-Density Lossless Data Center Switches for AI Compute Spine Backbone

Brand Name:	H3C
Model Number:	S9855-24B16DH-G/S9855-32DH-G
MOQ:	1
Price:	$5850(According to the Model and configuration requirements)
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	500

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

H3C_S9855-G__Data_Center_Sw...et.pdf

Switching Capacity:

22.4T-25.6T

Console Ports:

Products Status:

Order

Warranty:

3 Years

Management Ethernet Ports:

Forwarding Capacity:

5.6Bpps

Communication Mode:

Full-Duplex & Half-Duplex

Dimensions (W×D×H, Mm):

44*442 * 550

Products Item:

Data Center Switches - Aggregation Switch

USB Port:

Packaging Details:

Original packaging

Supply Ability:

500

Highlight:

H3C S9855-G Series data center switch

400G high-density network switch

AI compute spine backbone switch

Product Description

H3C S9855-G Series 400G 200G High-Density Lossless Data Center Switches for AI Compute Spine Backbone

Overview

High-performance data center switches designed for AI and high-performance computing environments, featuring ultra-large bandwidth and comprehensive lossless networking capabilities.

Ultra-large 22.4T/25.6T non-blocking bandwidth with native 400G/200G ports for AI & HPC spine backbone
Complete data center lossless suite with RoCEv2 zero packet loss and ultra-low latency for RDMA computing clusters
Standard EVPN-VXLAN Fabric + M-LAG device redundancy with hitless batch device upgrade capability
Full-link telemetry: INT real-time monitoring + PTP high-precision clock for fast fault diagnosis
Programmable ASIC supporting OpenFlow/Ansible/NETCONF for SDN automatic deployment
Full hardware redundancy: hot-swappable PSUs & fans with bidirectional airflow for data center cooling
Multi-layer security: uRPF, MACsec, ARP/ND defense, and multi-level ACL to isolate malicious traffic

Product Specifications

Item	S9855-24B16DH-G	S9855-32DH-G
Dimensions (H * W * D) /mm	44 * 442 * 550
Weight	≤12.3kg
Console port	1
Out-of-band management port	10M/100M/1000M Base-T port: 1
USB port	1
CPU	2.2GHz
Flash/SDRAM	NAND FLASH: SSD 128G RAM: 16G
Latency	1μs
Buffer	64MB
Switching capacity	22.4T (bidirection)	25.6T (bidirection)
Forwarding capacity	5.6Bpps
AC-input voltage	100V-240V AC; 50/60Hz
DC-input voltage	240V DC
Power module slot	2
Fan tray slot	6
Air flow direction	Port Panel and Fan Panel Side Exhaust Airflow
Static power consumption	Single power: 232W / Dual power: 247W	Single power: 258W / Dual power: 272W
Typical power consumption (full cables, 50% load)	Single power: 320W / Dual power: 331W	Single power: 344W / Dual power: 350W
Typical power consumption (full transceivers, 100% load)	Single power: 907W / Dual power: 909W	Single power: 980W / Dual power: 939W
MTBF (years)	67.7	45.07
MTTR (hour)	0.5
Operating temperature	0ºC～40ºC
Storage temperature	-40ºC～70ºC
Operating humidity	5%～95%
