Good price online

products details

Home > Products >
Network Switch
>
H3C S5580S-24T6X-EI Network Switch with 168Gbps Switching Capacity 125Mpps Forwarding and 10G/25G High-Speed Uplink
All Category

Network Switch

Network Rack Server

Network Router

Wireless Access Point

Enterprise Storage

Network Storage

Network Firewall

Optical Modules
Contact Us
Ms. Helen
Helen@mailian-it.com
+86 15217068581
wechat
+86 15217068581
Chat Now

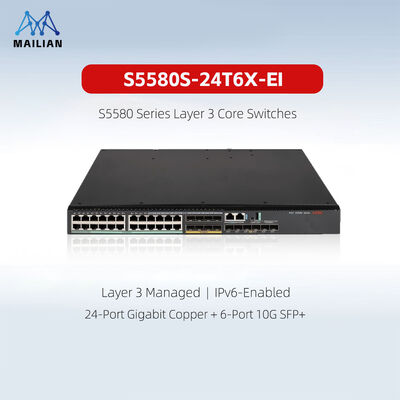

H3C S5580S-24T6X-EI Network Switch with 168Gbps Switching Capacity 125Mpps Forwarding and 10G/25G High-Speed Uplink

H3C S5580S-24T6X-EI Network Switch with 168Gbps Switching Capacity 125Mpps Forwarding and 10G/25G High-Speed Uplink

Brand Name: H3C
Model Number: S5580S-24T6X-EI
MOQ: 1
Price: $5850(According to the Model and configuration requirements)
Payment Terms: L/C,T/T,Western Union
Supply Ability: 500
Detail Information
Product Description
Detail Information
Place of Origin:
China
Document:
H3C S5580X-EI_S5580S-EI Ser...1).pdf
Products Item:
Campus - Aggregation Switch
Communication Mode:
Full-Duplex & Half-Duplex
Switching Capacity:
168Gbps
Forwarding Capacity:
125Mpps
Dimensions (W×D×H, Mm):
440×360×43.6
Console Ports:
1
Management Ethernet Ports:
1
Warranty:
3 Years
Products Status:
Order
Packaging Details:
Original packaging
Supply Ability:
500
Product Description
1.Overview
  • High-performance Hardware: 2.4Tbps switching capacity, 10G/25G high-speed uplink, low-latency wire-speed forwarding for heavy workloads.
  • Full Protocol Support: IPv4/IPv6 dual stack, MPLS, EVPN, VXLAN, Layer 3 routing and multicast for cloud networks.
  • Virtualization Technology: IRF2 and M-LAG for device & link redundancy, simplified topology and high reliability.
  • Comprehensive Security: Equipped with EAD, 802.1X, anti-attack mechanisms and ACL for full security protection.
  • Intelligent O&M: Comware V9 OS, SmartMC, Telemetry and iNQA realize visualized management & fast troubleshooting.
  • Robust Hardware: Modular fans and power modules, 10KV lightning protection, wide temperature adaptability.
  • Powerful Expansion: Reserved expansion slot, compatible with various interface cards and integrated services.
2.Product Specifications
Feature S5580S-24T6X-EI
CPU Dual Core, 1.6GHz
Flash/SDRAM 4G/2G
Port Switching Capacity 168Gbps
Packet Forwarding Rate 125Mpps
Dimensions (W*D*H) (unit: mm) 440*360*43.6
Weight ≤4.5kg
Console Port 1
Ethernet Port for Management 10/100/1000Base-T electrical port: 1
USB Port 1
10/100/1000BASE-T auto-sensing Ethernet Port 24
Combo SFP port 8
10G SFP+ port 6
25G SFP28 port -
Latency (64byte/μs) GE: < 5μs
10G/25G < 3μs
Fan 2 Embedded Fans
Power supply 2 Modular Power Supply
Input Voltage AC:
Rated voltage range: 100 to 240V AC 50/60Hz
Maximum voltage range: 90V~290V AC, 47~63Hz
DC:
Rated voltage range: -48V~-60V DC
Maximum voltage range: -36V~-72V
