H3C S5130S-MP-EI Series Next-Generation Multi-Rate Enterprise Managed Ethernet Switch High-Performance Gigabit Network Switch for Office, Campus and Data Center

Brand Name:	H3C
Model Number:	H3C S5130S-MP-EI Series
MOQ:	1
Price:	Subject to the specific model and configuration
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Exchange Capacity:

672Gbps/6.72Tbps

Packet Forwarding Rate:

126Mpps | 166Mpps | 126Mpps

Dimensions:

440×160×43.6mm | 440×230×43.6mm | 440×260×43.6mm

Weight:

≤2.5kg | ≤3.5kg | ≤5.0kg

Input Voltage:

100V~240V A.C., 50/60Hz

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Product Description

H3C S5130S-MP-EI Series Next-Generation Multi-Rate Enterprise Managed Ethernet Switch

The H3C S5130S-MP-EI switch is a high-performance gigabit network switch designed for office, campus, and data center environments requiring high performance, high port density, and easy installation.

Product Overview

The H3C S5130S-MP-EI series Ethernet switches offer 10/100/1000 Base-T adaptive Ethernet ports or SFP optical ports, as well as 1G/2.5G/5G Ethernet ports. These switches serve as access devices in enterprise networks for gigabit-to-desktop applications and provide gigabit access in metropolitan area networks or for industrial users.

The series supports innovative IRF (Intelligent Resilient Framework) technology, allowing connection of up to 9 switches into a logically independent entity for high reliability, easy scalability, and simplified management.

Technical Specifications

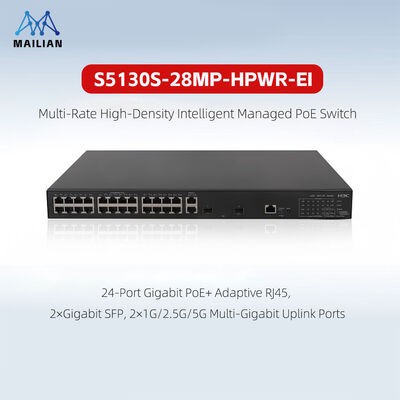

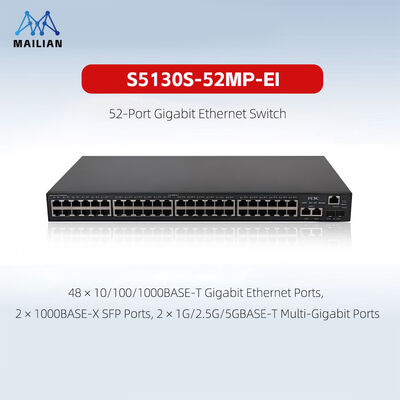

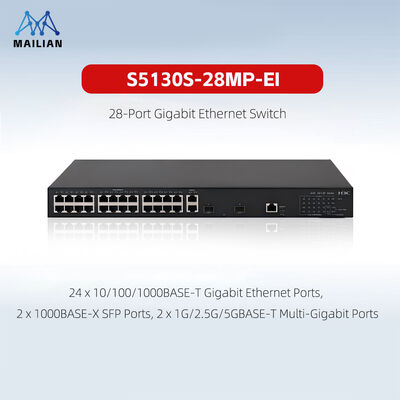

Supported Features	S5130S-28MP-EI	S5130S-52MP-EI	S5130S-28MP-HPWR-EI
Exchange Capacity (Full duplex)	672Gbps/6.72Tbps
Packet Forwarding Rate	126Mpps	166Mpps	126Mpps
Dimensions (W×D×H) mm	440×160×43.6	440×230×43.6	440×260×43.6
Weight	≤2.5kg	≤3.5kg	≤5.0kg
Manage Ports	1 Console port
Business Port Description	24 10/100/1000BASE-T ports, 2 1000BASE-X SFP ports, 2 1G/2.5G/5G BASE-T ports	48 10/100/1000BASE-T ports, 2 1000BASE-X SFP ports, 2 1G/2.5G/5G BASE-T ports	24 10/100/1000BASE-T ports (POE+), 2 1000BASE-X SFP ports, 2 1G/2.5G/5G BASE-T ports
Input Voltage	AC: 100V~240V A.C., 50/60Hz		AC: 100V~240V A.C., 50/60Hz DC: -54V~-57V DC
Overall Power Consumption	AC MIN:14W MAX:28W	AC: MIN:22W MAX:46W	AC MIN:26W MAX: 466W (POE is 370W) DC: MIN:39W MAX: 834W (POE is 740W)
Operating Temperature	-5℃～45℃
Operating Humidity	5%～95% (non-condensation)

Key Features

Link Aggregation: Supports GE/10GE port aggregation, static/dynamic aggregation, cross-device aggregation
Flow Control: 802.3x flow control and half-duplex backpressure flow control
Jumbo Frame: Supports maximum frame length of 10K
MAC Address Table: Static, dynamic, and black hole MAC addresses with source MAC filtering
SDN/OpenFlow: OpenFlow 1.3 standard with multi-controller support
VLAN: 802.1Q VLAN, 4K VLAN support, QinQ, Guest VLAN, Voice VLAN
Routing: Dual-stack IPv4/IPv6, static routing, RIPv1/RIPv2/RIPng, OSPF v1/v2/v3
Multicast: IGMPv1/v2/v3 Snooping, MLD Snooping, multicast VLAN
QoS/ACL: 802.1p/DSCP priority, packet filtering, 8 queues per port, SP/WRR/SP+WRR scheduling
Security: Hierarchical user management, AAA/RADIUS/HWTACACS, SSH 2.0, 802.1X, port security
Management: CLI, Telnet, SNMP, web management, syslog, Python script management

SmartMC Intelligent Management

SmartMC solves centralized management challenges for distributed network devices through four major business segments:

Intelligent Management: Device role selection, FTP server configuration, global configuration
Intelligent Operations: Group management, backup and upgrades, monitoring, device replacement
Visualization: Network topology visualization, device list management
Smart Business: User management with one-click network access

IRF2 Intelligent Resilient Architecture

IRF2 technology virtualizes multiple physical devices into a single logical device, providing significant benefits:

Simplified Management: Single point of management for entire system
Simplified Operations: Unified control protocols and cross-device link aggregation
Elastic Scalability: Flexible scaling with hot-swapping capability
High Reliability: Link, device, and protocol-level redundancy with 1:N backup
High Performance: Combined performance and port density of all devices

IRF3.1 Vertical Virtualization

IRF3.1 technology extends I/O port capabilities through vertical virtualization:

Unified Management: Centralized configuration through master device
Unified Security Policy: Network-wide security configuration from single point
Simplified Network Layers: Three-layer to two-layer network simplification
Easy Maintenance: Hot-swapping and zero-configuration for device changes

Advanced Security Features

The S5130S-MP-EI series provides comprehensive security control:

Single-port multi-authentication (Triple functionality) for diverse client environments
Guest VLAN functionality for controlled resource access
SSH V2 for secure information protection
ARP attack protection with ARP Detection and speed limiting
EAD (Terminal Access Control) for integrated endpoint security

Quality of Service

Comprehensive QoS strategies including:

L2-L4 packet filtering with flexible classification
SP, WRR, and SP+WRR scheduling algorithms
Bidirectional ACL and traffic monitoring CAR function
Port/stream mirroring for network detection
sFlow functionality for precise traffic monitoring

Professional Lightning Protection

The S5130S-MP-EI series features built-in professional lightning protection technology with 10KV service port protection capability, ensuring reliable operation even in harsh working environments.
