H3C S5170-EI Series Gigabit Ethernet Switches – Enterprise-Class High‑Reliability Access/Aggregation with Dual Redundant Power and Smart O&M

All Category

Optical Modules

Ms. Helen

Helen@mailian-it.com

+86 15217068581

+86 15217068581

Chat Now

H3C S5170-EI Series Gigabit Ethernet Switches – Enterprise-Class High‑Reliability Access/Aggregation with Dual Redundant Power and Smart O&M

Brand Name:	H3C
Model Number:	H3C S5170-EI Series
MOQ:	1
Price:	According to the Model and configuration requirements
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	500

Detail Information

Product Description

Detail Information

Place of Origin:

China

Products Item:

Campus - Access Switch

Communication Mode:

Full-Duplex & Half-Duplex

Switching Capacity:

960Gbps-2160Gbps

Forwarding Capacity:

171Mpps-207Mpps

Dimensions (W×D×H, Mm):

440 × 320 × 43.6/440 × 260 × 43.6

Console Ports:

Management Ethernet Ports:

Warranty:

3 Years

Products Status:

Order

Packaging Details:

Original packaging

Supply Ability:

Product Description

1.Overview

The H3C S5170-EI switch is a new-generation, high-performance, high-port-density, highly secure, and easy-to-install intelligent manageable Gigabit Ethernet switch developed by New H3C Technologies Co., Ltd. (hereinafter referred to as H3C) using industry-leading ASIC technology. It supports IPv4/IPv6 dual-stack management and forwarding, static routing protocols as well as dynamic routing protocols such as RIP and OSPF, and offers rich management and security features.

The H3C S5170-EI series is primarily positioned at the access and aggregation layers of enterprise and campus networks. It delivers high-density Gigabit access, features fixed 10G uplink ports, supports PoE+, and works together with other H3C products to build high-performance end-to-end IP network solutions.

2.Product Specifications

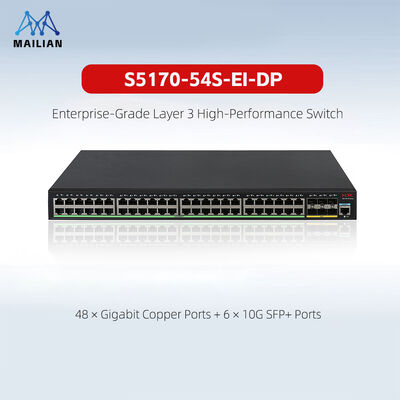

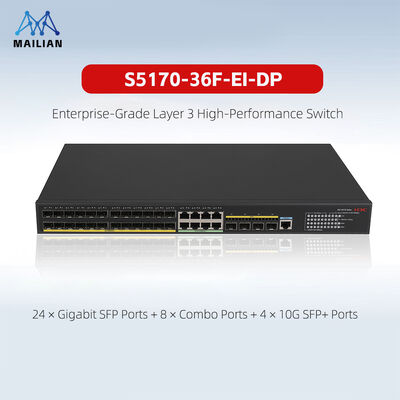

Item	S5170-54S-EI-DP	S5170-36F-EI-DP
Switching Capacity	672 Gbps / 6.72 Tbps	171 Mbps
Packet Forwarding Rate	207 Mpps	-
Port Description*	48 x 10/100/1000Base-T auto-sensing Ethernet ports, 6 x 1/10GE SFP+ ports	24 x 100/1000 SFP optical ports, 8 x 10/100/1000Base-T auto-sensing Ethernet ports, 4 x 1/10GE SFP+ ports
Dimensions (WDH, mm)	440 * 320 * 43.6	440 * 260 * 43.6
Console Port	1	1
Input Voltage	AC • Rated voltage range: 100V~240V AC, 50/60Hz • Maximum voltage range: 90V~264V AC, 47~63Hz	AC • Rated voltage range: 100V~240V AC, 50/60Hz • Maximum voltage range: 90V~264V AC, 47~63Hz
Weight	≤ 4.3 kg	≤ 3.6 kg
Power Consumption (Static)	Single AC: 23.5W Dual AC: 24W	Single AC: 24.5W Dual AC: 25W
Power Consumption (Full Load)	Single AC: 61.5W Dual AC: 62W	Single AC: 60.5W Dual AC: 61W
Operating Temperature	-5°C ~ 45°C	-5°C ~ 45°C
Operating Relative Humidity (Non-condensing)	5% ~ 95%	5% ~ 95%
