H3C Mini S1510FX 8-Port 2.5G + 2-Port 10G SFP+ Unmanaged Desktop Switch Plug and Play for Enterprise NAS Home Office Network

H3C Mini S1510FX 8-Port 2.5G + 2-Port 10G SFP+ Unmanaged Desktop Switch Plug and Play for Enterprise NAS Home Office Network

Brand Name: H3C
Model Number: H3C Mini S1510FX
MOQ: 1
Price: 56$
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Document:
S1510FX.pdf
Dimensions:
200*124.8*28mm
Fixed Ports:
8 X 10/100/1000/2500Base-T, 2 X 1G/2.5G/10Gbps SFP+
Exchange Capacity:
80Gbps
Forwarding Capabilities:
59.52Mpps
Power Consumption:
≦ 13.2W
Packaging Details:
See the hardware specification sheet for details based on the specific model.
Product Description

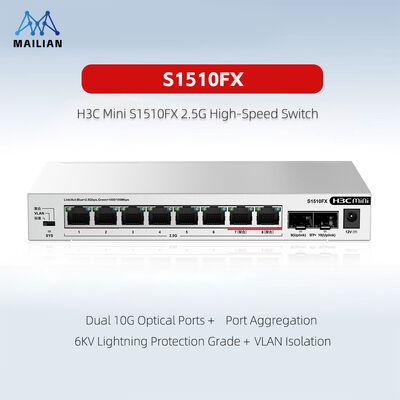

H3C Mini S1510FX 8-Port 2.5G + 2-Port 10G SFP+ Unmanaged Desktop Switch

The H3C Mini S1510FX is a next-generation green energy-saving high-speed unmanaged desktop switch featuring 8×2.5G electrical ports and 2×10G SFP+ optical ports. Designed for easy installation with robust business features, it's ideal for small-to-micro enterprises, commercial chains, hotels, campuses, and various networking scenarios.

Technical Specifications
Dimensions (W×D×H) 200 × 124.8 × 28 mm
Fixed Ports 8 × 10/100/1000/2500Base-T ports
2 × 1G/2.5G/10Gbps SFP+ optical ports
Switching Capacity 80 Gbps
Forwarding Capability 59.52 Mpps
MAC Address Capacity 16K
Maximum Frame Length 10240 bytes
Power Supply 12V 1.5A
Heat Dissipation Natural convection
Lightning Protection 6KV
Weight ≤ 0.55 kg
Operating Temperature 0°C to 40°C
Storage Temperature -40°C to 70°C
Operating/Storage Humidity 5% to 95% (non-condensing)
Certifications CQC certification, network access license
Power Consumption ≤ 13.2W
Installation Desktop
Mounting Ears Included No
Key Features
  • DIP Switch with standard switching, port isolation, port aggregation, and one-click mode switching for versatile work scenarios
  • Dual 10G SFP+ ports compatible with CAT sticks, optical modules, and backward compatible with 2.5G/1G electrical ports
  • Green Ethernet technology automatically reduces power consumption when ports are unused or connected with short cables
  • 6KV lightning protection with reinforced port protection for enhanced durability
  • All-metal enclosure with professional thermal design for superior heat dissipation and stable operation
