H3C S7500X Series High-end Multiservice Core Routing Switch Enterprise Layer 3 Network Switch for Data Center Campus Network Infrastructure

Brand Name:	H3C
Model Number:	H3C S7500X series
MOQ:	1
Price:	Subject to the specific model and configuration
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Exchange Capacity:

51.2Tbps/201.6Tbps (S7503X), 102.4Tbps/403.2Tbps (S7506X), 204.8Tbps/806.4Tbps (S7510X)

Package Forwarding:

38400Mpps (S7503X), 57600Mpps (S7506X), 115200Mpps (S7510X)

Power Supply:

DC: –48V～–60V, AC: 100V～240V

Dimensions:

216mm*436mm*420mm (5U), 575mm*436mm*420mm (13U), 708mm*436mm*420mm (16U)

Operating Temperature:

0°C~45°C

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Product Description

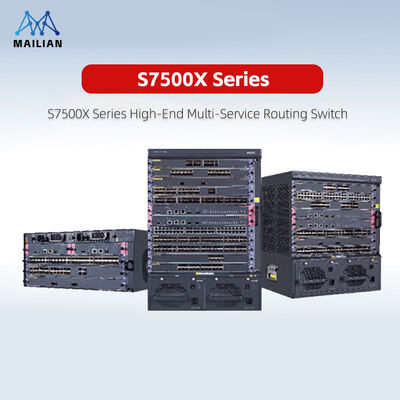

H3C S7500X Series High-end Multiservice Core Routing Switch

The H3C S7500X series are high-end multi-service convergence switches from H3C Technology Co., Ltd., designed for converged service networks. These products deliver strong performance and rich service convergence features based on H3C's Comware V7 operating system, supporting IRF2 and IRF3 technologies.

Product Overview

The S7500X series integrates MPLS VPN, IPv6, firewall, intrusion prevention (IPS), wireless capabilities, and provides various high-reliability technologies including uninterrupted forwarding, uninterrupted upgrades, elegant restart, and ring network protection. This ensures maximum network uptime while reducing total cost of ownership (TCO). The series fully supports MDC and VXLAN technologies required in the cloud digital era and SDN solutions, with comprehensive Ethernet interface support including gigabit, 10-gigabit, 25G, 40G, and 100G interfaces.

Technical Specifications

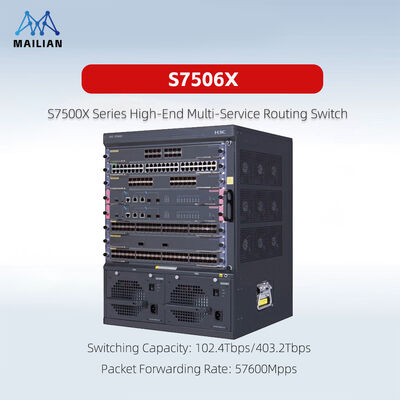

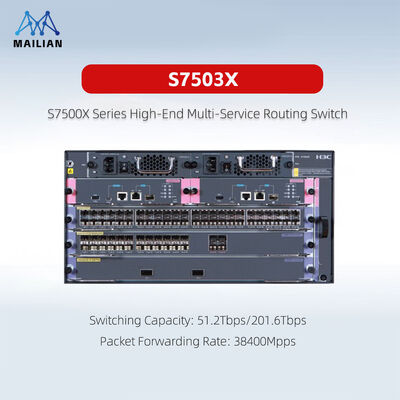

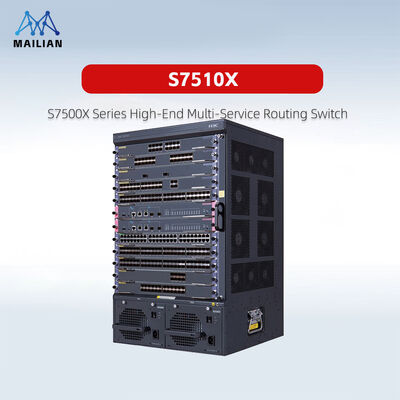

Nature	S7503X	S7506X(-S)/S7506X-S-MF	S7510X
Exchange capacity	51.2Tbps/201.6Tbps	102.4Tbps/403.2Tbps	204.8Tbps/806.4Tbps
Package forwarding capabilities	38400Mpps	57600Mpps	115200Mpps
Number of business slots	3	6	10
Dimensions (HWD) (mm)	216mm436mm420mm (5U)	575mm436mm420mm (13U)	708mm436mm420mm (16U)
Full Weight (kg)	<35kg	<75kg	<95kg

Key Features

Layer 2 Characteristics

Supports IEEE 802.1P (CoS priority) and IEEE 802.1Q (VLAN)
Support for IEEE 802.1d(STP)/802.1w(RSTP)/802.1s(MSTP)/BPDU protection
Supports IEEE 802.1ad (QinQ), flexible QinQ and VLAN mapping
Supports IEEE 802.3x flow control and IEEE 802.3ad link aggregation
Support for RRPP (Fast Ring Network Protection Protocol)
Cross-board port/stream mirroring and storm suppression
Support for static MAC, dynamic MAC, and black hole MAC
Jumbo Frame and multiple VLAN division methods supported

IPv4 Routing Characteristics

ARP Proxy, DHCP Relay, and DHCP Server support
Static routing, RIPv1/v2, OSPFv2, IS-IS, and BGPv4 support
Support for OSPF/IS-IS/BGP GR (Graceful Restart)
Equivalent routing and policy routing capabilities

IPv6 Routing Characteristics

ICMPv6 and DHCPv6 support
OSPFv3, RIPng, BGP4+, and IS-ISv6 support
Multiple tunneling technologies including manual tunneling, ISATAP, and 6to4 tunnels
IPv6 and IPv4 dual stack support with SAVI function

Multicast Capabilities

IGMPv1/v2/v3 and MLDv2/MLDv2 Snooping support
PIM-SM/PIM-DM/PIM-SSM and MSDP support
AnyCast-RP and multicast querier capabilities

ACL/QoS Features

Standard and extended ACLs with VLAN-based ACL support
Ingress/Egress ACL with CAR granularity up to 8Kbps
Traffic Shaping and hierarchical QoS (H-QoS) support
Multiple queue scheduling mechanisms including SP, WRR, SP+WRR, and WFQ

SDN/OpenFlow Support

OpenFlow 1.3 standard compliance
Multiple controller support with multi-meter pipelines
Group table and two-level meter capability

VXLAN Technology

VXLAN Layer 2 switching and routing switching
VXLAN gateway and BGP EVPN feature support
Distributed control plane with IS-IS+ENDP
Centralized control plane with OpenFlow+Netconf

MPLS/VPLS Capabilities

L3 MPLS VPN and L2 VPN: VLL (Martini, Kompella)
MCE and MPLS OAM support
VPLS, VLL, and hierarchical VPLS capabilities
P/PE function with LDP protocol support

Advanced Capabilities

Multi-service Integration

Integrated wireless AC function without separate AC service board
Professional wireless AC service board support
Eagle Vision functions and converged SDN functions integration

Security Mechanisms

EAD security solutions and Portal authentication
MAC authentication and IEEE 802.1x support
AAA/Radius and HWTACACS with command-line authentication
SSHv1.x/SSHv2 and ACL flow filtering
IP Source Guard with protection against various attacks
Secure boot and microsegmentation capabilities

System Management

FTP, TFTP, and Xmodem support
SNMP v1/v2/v3 and sFlow traffic statistics
NTP clock and PTP (1588V2) clock support
NetStream traffic statistics and intelligent power management
Telemetry traffic visualization and INQA function
Built-in intelligent management with one-click deployment

Programmability

Ansible automatic configuration for batch distribution
Automated network orchestration through Python, NETCONF, TCL

Reliability Features

1+1 redundant backup of main control board
Power supply 1+1 redundant backup
Passive backplane design with hot-swappable boards
CPU protection technology and lightning protection
VRRP and Ethernet OAM (802.1ag and 802.3ah) support
ISSU technology for uninterrupted online upgrades

Environmental Requirements

Temperature range: 0°C~45°C
Relative humidity: 5%~95% (non-condensing)

Power Supply

DC: –48V～–60V
AC: 100V～240V

Green Design

The H3C S7500X adopts a green design concept and complies with the "Restriction of Hazardous Substances Standard for Electronic Equipment (RoHS)", making it a green and environmentally friendly high-end switch.
