| Brand Name: | H3C |
| Model Number: | MS4520V2 Series |
| MOQ: | 1 |
| Price: | depending on order quantity and specific model |
| Payment Terms: | T/T |
| Supply Ability: | Up to 30 days |
| H3C MS4520V2 Series Switch Specification & Feature Table | |||||
|---|---|---|---|---|---|

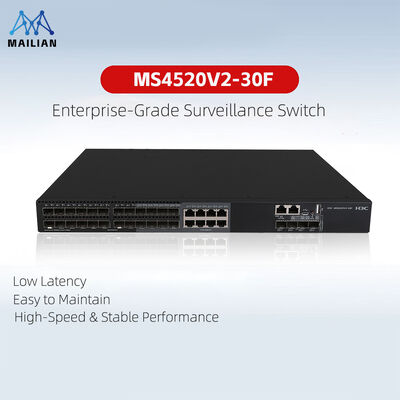

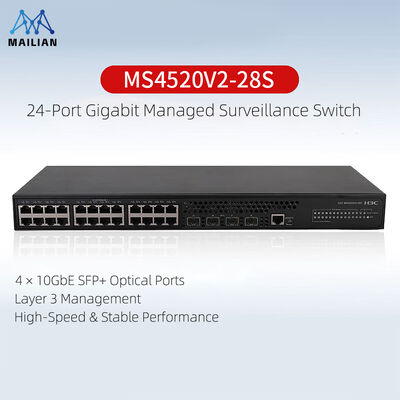

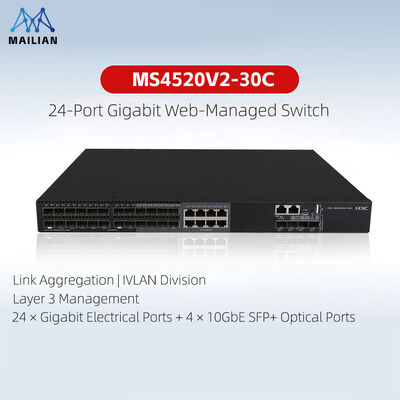

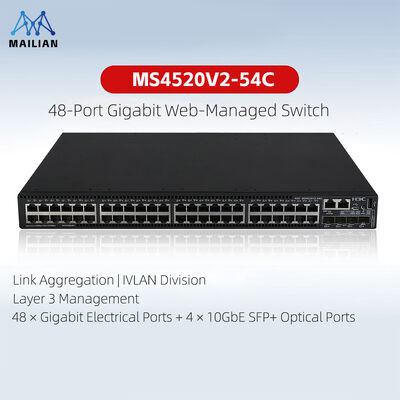

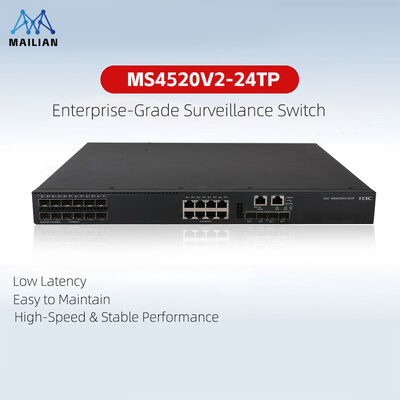

| Item | MS4520V2-28S | MS4520V2-24TP | MS4520V2-30F | MS4520V2-30C | MS4520V2-54C |
| Switching Capacity | 758Gbps/7.58Tbps | 758Gbps/7.58Tbps | 758Gbps/7.58Tbps | 758Gbps/7.58Tbps | 758Gbps/7.58Tbps |
| Packet Forwarding Rate | 222Mpps | 222Mpps | 252Mpps | 252Mpps | 252Mpps |
| Front Panel Port Configuration | 24×10/100/1000Base-T RJ45 Ports, 4×10G BASE-X SFP+ Ports | 12×SFP Ports, 8×10/100/1000Base-T Ports, 4×10G SFP+ Ports | 24×SFP Ports, 8×10/100/1000Base-T (Combo) Ports, 4×10G SFP+ Ports | 24×10/100/1000Base-T Ports (8 Combo), 4×10G BASE-X SFP+ Ports | 48×10/100/1000Base-T Ports, 4×10G BASE-X SFP+ Ports |
| Expansion Slot | None | None | 1 Slot | 1 Slot | 1 Slot |
| IP Routing | Static Route, RIPv1/v2, RIPng, OSPFv2/v3, VRRP/VRRPv3 | ||||
| Link Aggregation | Dynamic Aggregation, Cross-device Aggregation | ||||
| Port Features | IEEE 802.3x Flow Control, Storm Suppression by Port Rate Percentage/PPS/BPS | ||||
| IRF2 | Support IRF2, Standard Ethernet Stacking, Local & Remote Stacking, Distributed Management & Link Aggregation | ||||
| Embedded Monitoring Management Component | Supported | ||||
| SDN / OpenFlow | OpenFlow 1.3, Multi-controller, Multi-table Pipeline, Group Table, Meter | ||||
| VLAN | Port-based/MAC-based/Protocol-based VLAN, QinQ & Flexible QinQ, VLAN Mapping, Voice VLAN, Guest VLAN, Super VLAN, PVLAN, MVRP | ||||
| ACL | L2~L4 Packet Filtering, Time-range ACL, Global/VLAN/Port-based ACL Ingress, Bidirectional ACL | ||||
| QoS | Rate Limiting, Packet Redirection, CAR, 8 Output Queues per Port, SP/WRR/SP+WRR Scheduling, 802.1p/DSCP Remarking | ||||
| DHCP | DHCP Client/Snooping/Relay/Server, Option 82, Zero Configuration | ||||
| Multicast | IGMP Snooping / MLD Snooping, Multicast VLAN | ||||
| Layer 2 Ring Protocol | STP/RSTP/MSTP/PVST, Smart Link, RRPP | ||||
| OAM | IEEE 802.1ag, IEEE 802.3ah | ||||
| Port Mirroring | Local Mirroring, RSPAN, Flow Mirroring | ||||
| Security Features | Hierarchical User Management, 802.1X/MAC Authentication, RADIUS, SSH 2.0, Port Isolation, ARP Anti-attack, IP+MAC+Port Binding, EAD | ||||
| Management & Maintenance | CLI/Telnet/Console, SNMPv1/v2/v3, Web Management, iMC, NTP, BFD, DLDP, VCT, Loopback Detection, Fan/Power/Temperature Alarm | ||||
| Port Lightning Protection | 10KV | ||||
| Green Energy Saving | EEE (802.3az), Auto Power Down, Scheduled Port Shutdown | ||||
| Operating Temperature | -10℃～50℃ | ||||
