The H3C MS4100-LI series security switches are widely applied to network construction in scenarios such as security surveillance.

Brand Name:	H3C
Model Number:	MS4100-LI Series
MOQ:	1
Price:	depending on order quantity and specific model
Payment Terms:	T/T
Supply Ability:	Up to 30 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Packaging Details:

See the hardware specification sheet for details based on the specific model

Supply Ability:

Up to 30 days

Highlight:

H3C MS4100-LI security switch

network surveillance security switch

H3C MS4100-LI network switch

Product Description

Rich Port Types

Available in 10/18/24 port configurations. All ports support wire-speed Gigabit forwarding to meet diverse user requirements.

Enhanced Expansion Capability

The MS4100-LI lightweight management series supports up to 12K MAC addresses, reserving sufficient expansion space for enterprise networks and greatly facilitating subsequent upgrades and applications.

Reliable Security Policies

Supports blackhole MAC address configuration to filter illegal access and ensure network security.

User‑Friendly Network Management

Features LiteWare-based web lightweight management with visualized port configuration. The intuitive interface simplifies operation and reduces O&M costs.

PoE+ Capability

HPWR models of the H3C MS4100-LI series support enhanced PoE+ power supply. The maximum total power budget reaches 370W, with up to 30W output per port.

Green & Energy‑Saving Design

Optimized energy-saving design effectively reduces power consumption and potential failure points, while lowering radiation to household appliance standards for human safety.
The whole product complies with the EU RoHS directive for environmental protection and material safety.

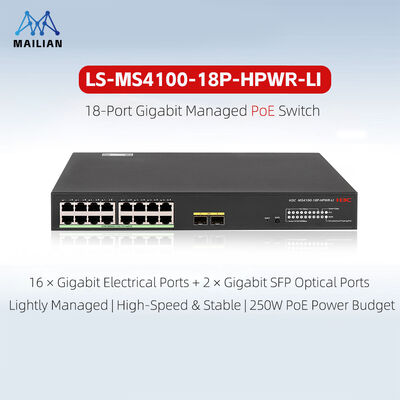

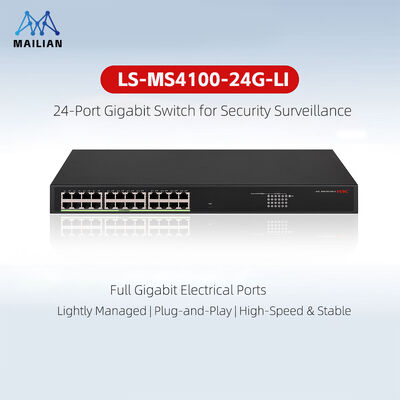

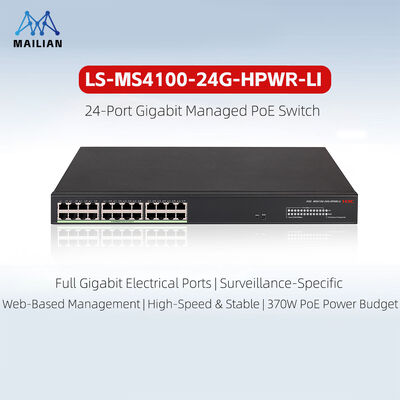

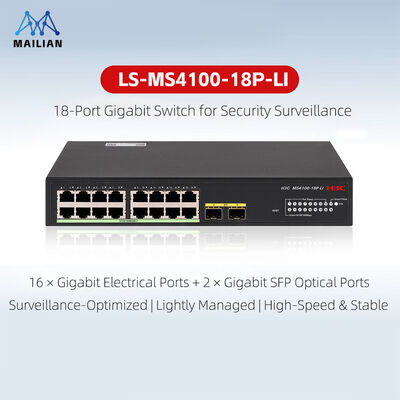

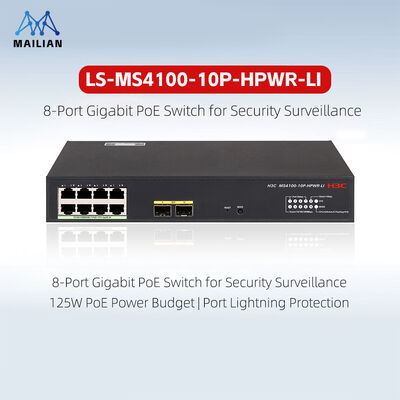

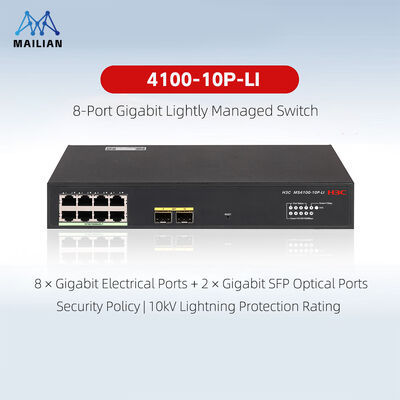

Attribute	MS4100-10P-LI	MS4100-18P-LI	MS4100-24G-LI	MS4100-10P-HPWR-LI	MS4100-18P-HPWR-LI	MS4100-24G-HPWR-LI
MS4100-LI Series Specifications
Switching Capacity	40Gbps	78Gbps	96Gbps	40Gbps	78Gbps	96Gbps
Packet Forwarding Rate	28Mpps	54Mpps	72Mpps	28Mpps	54Mpps	72Mpps
Fixed Ports	810/100/1000 BASE-T ports,2100/1000 BASE-X SFP ports	1610/100/1000 BASE-T ports,2100/1000 BASE-X SFP ports	24*10/100/1000 BASE-T ports	810/100/1000 PoE+ BASE-T ports,2100/1000 BASE-X SFP ports	1610/100/1000 PoE+ BASE-T ports,2100/1000 BASE-X SFP ports	24*10/100/1000 PoE+ BASE-T ports
Ethernet Port Features	Supports half-duplex, full-duplex and auto-negotiation modes;Supports MDI/MDI-X	Supports half-duplex, full-duplex and auto-negotiation modes;Supports MDI/MDI-X	Supports half-duplex, full-duplex and auto-negotiation modes;Supports MDI/MDI-X	Supports half-duplex, full-duplex and auto-negotiation modes;Supports MDI/MDI-X	Supports half-duplex, full-duplex and auto-negotiation modes;Supports MDI/MDI-X	Supports half-duplex, full-duplex and auto-negotiation modes;Supports MDI/MDI-X
Ethernet Functions	Static MAC configuration;MAC address learning limit (max. 12K MAC entries);IPv4;DHCP Client	Static MAC configuration;MAC address learning limit (max. 12K MAC entries);IPv4;DHCP Client	Static MAC configuration;MAC address learning limit (max. 12K MAC entries);IPv4;DHCP Client	Static MAC configuration;MAC address learning limit (max. 12K MAC entries);IPv4;DHCP Client	Static MAC configuration;MAC address learning limit (max. 12K MAC entries);IPv4;DHCP Client	Static MAC configuration;MAC address learning limit (max. 12K MAC entries);IPv4;DHCP Client
Security Features	Password protection;Blackhole MAC address support	Password protection;Blackhole MAC address support	Password protection;Blackhole MAC address support	Password protection;Blackhole MAC address support	Password protection;Blackhole MAC address support	Password protection;Blackhole MAC address support
Management Features	LiteWare-based web lightweight management;DNS Client	LiteWare-based web lightweight management;DNS Client	LiteWare-based web lightweight management;DNS Client	LiteWare-based web lightweight management;DNS Client	LiteWare-based web lightweight management;DNS Client	LiteWare-based web lightweight management;DNS Client
Operating Temperature	-10℃～50℃	-10℃～50℃	-10℃～50℃	-10℃～50℃	-10℃～50℃	-10℃～50℃
Humidity	Operating: 5%～95%RH, non-condensing;Storage: 5%～95%RH, non-condensing	Operating: 5%～95%RH, non-condensing;Storage: 5%～95%RH, non-condensing	Operating: 5%～95%RH, non-condensing;Storage: 5%～95%RH, non-condensing	Operating: 5%～95%RH, non-condensing;Storage: 5%～95%RH, non-condensing	Operating: 5%～95%RH, non-condensing;Storage: 5%～95%RH, non-condensing	Operating: 5%～95%RH, non-condensing;Storage: 5%～95%RH, non-condensing
Lightning Protection	10KV	10KV	10KV	10KV	10KV	10KV
PoE	Not supported	Not supported	Not supported	PoE+ supported,Max single-port output: 30W	PoE+ supported,Max single-port output: 30W	PoE+ supported,Max single-port output: 30W
Power Consumption	Min AC: 2WMax AC: 6W	Min AC: 4WMax AC: 11W	Min AC: 5WMax AC: 14W	Min AC: 4WMax AC: 140W (PoE: 125W)	Min AC: 9WMax AC: 283W (PoE: 250W)	Min AC: 8WMax AC: 410W (PoE: 370W)
Weight (Full Configuration)	≤0.9kg	≤1.1kg	≤1.8kg	≤1.4kg	≤2.4kg	≤3.5kg
Input Voltage	AC: 90Vac~264Vac	AC: 180–264V	AC: 180–264V	AC: 90Vac~264Vac	AC: 90Vac~264Vac	AC: 180–264V
Dimensions (LWH, mm)	26616043.6	26616043.6	44017343.6	26616043.6	33023043.6	44023043.6
Heat Dissipation	Fanless, natural heat dissipation	Fanless, natural heat dissipation	Fanless, natural heat dissipation	Fanless, natural heat dissipation	2 independent fan trays with 2-speed adjustment	2 independent fan trays with 2-speed adjustment
