| Brand Name: | H3C |
| Model Number: | IE4520 Series |
| MOQ: | 1 |
| Price: | depending on order quantity and specific model |
| Payment Terms: | T/T |
| Supply Ability: | Up to 30 days |
| IE4520 Series System Specifications | ||||

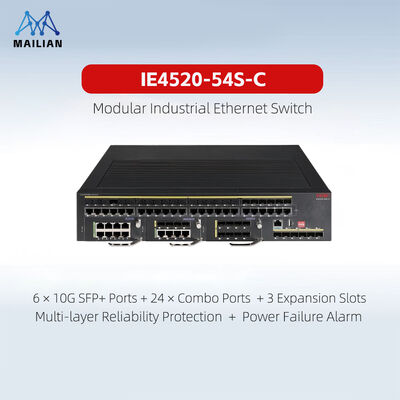

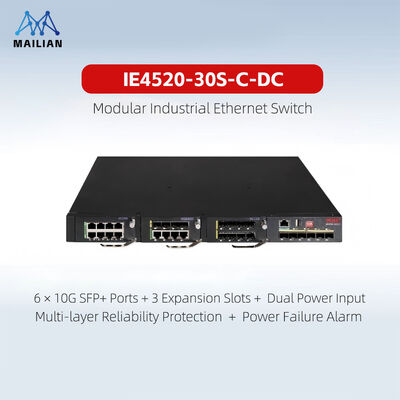

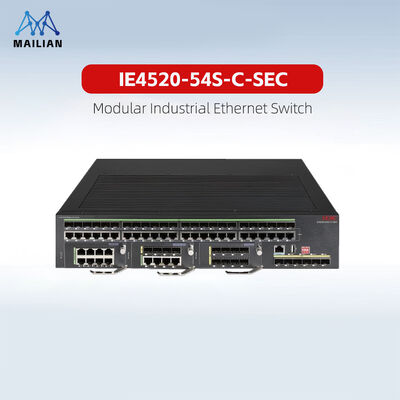

| Item | IE4520-30S-C | IE4520-30S-C-DC | IE4520-54S-C | IE4520-54S-C-SEC |
|---|---|---|---|---|
| Switching Capacity | 756Gbps/7.56Tbps | 756Gbps/7.56Tbps | 756Gbps/7.56Tbps | 756Gbps/7.56Tbps |
| Packet Forwarding Rate | 222Mpps | 222Mpps | 252Mpps | 252Mpps |
| Dimensions(W*D*H, mm) | 440*360*43.61U Rack-mount | 440*360*43.61U Rack-mount | 440*360*87.22U Rack-mount | 440*360*87.22U Rack-mount |
| Weight | ≤5.5kg | ≤5.5kg | ≤10.0kg | ≤10.0kg |
| Power Interface | AC: IEC 60320 C13;DC: Phoenix Terminal | AC: IEC 60320 C13;DC: Phoenix Terminal | AC: IEC 60320 C13;DC: Phoenix Terminal | AC: IEC 60320 C13;DC: Phoenix Terminal |
| USB Interface | 1 * USB Port | 1 * USB Port | 1 * USB Port | 1 * USB Port |
| Configuration Port | 1 * RJ45 Console Port | 1 * RJ45 Console Port | 1 * RJ45 Console Port | 1 * RJ45 Console Port |
| DIP Switch | 4-way DIP switch for quick configuration | 4-way DIP switch for quick configuration | 4-way DIP switch for quick configuration | 4-way DIP switch for quick configuration |
| DI/DO | 1 * DI, 1 * DO | 1 * DI, 1 * DO | 1 * DI, 1 * DO | 1 * DI, 1 * DO |
| IP Rating | IP40 | IP40 | IP40 | IP30 |
| Fixed Service Ports | 6 * 1G/10G BASE-X SFP+ ports | 6 * 1G/10G BASE-X SFP+ ports | 24 * Gigabit Combo ports(Optical port compatible with 100M rate),6 * 1G/10G BASE-X SFP+ ports | 24 * Gigabit Combo ports(Optical port compatible with 100M rate),6 * 1G/10G BASE-X SFP+ ports |
| Expansion Slots | 3 expansion slots | 3 expansion slots | 3 expansion slots | 3 expansion slots |
| Expansion Service Cards | LS5M1IEGP8: 8 * 100/1000BASE-X SFP ports (universal for 3 slots)LS5M1IEGT4GP4: 4 * 10/100/1000BASE-T ports, 4 * 100/1000BASE-X SFP ports (universal for 3 slots)LS5M1IEGT8: 8 * 10/100/1000BASE-T ports (universal for 3 slots)LS5M1IEXG4: 4 * 1G/10G BASE-X SFP+ ports (only for Slot 3) | Same as left | Same as left | Same as left |
| Expansion Function Cards | Not supported | Not supported | LSWM2-iMC: H3C Intelligent Management Module (only for Slot 3)LSWM2EC: H3C Eagle Vision Scanner Module (only for Slot 3)LSWM3EC: H3C Industrial Control Security Card (only for Slot 3)LSPM6FWD: H3C Next-Generation Firewall Module (only for Slot 3) | Same as left |
| Power Input | Dual redundant backup power inputAC: 100~240VAC, 50/60Hz;Max: 85~264VACDC: 192~288VDC | Dual redundant backup power inputDC24-48V (18~60V) | Dual redundant backup power inputAC: 100~240VAC, 50/60Hz;Max: 85~264VACDC: 192~288VDC | Dual redundant backup power inputAC: 100~240VAC, 50/60Hz;Max: 85~264VACDC: 192~288VDC |
| Static Power Consumption | Single AC: ≤15.0WDual AC: ≤16.0W | Single DC: ≤16.0WDual DC: ≤19.5W | Single AC: ≤22.0WDual AC: ≤26.0W | Single AC: 24.0WDual AC: 28.0W |
| Full-load Power Consumption | Single AC: ≤46.0WDual AC: ≤48.0W | Single DC: ≤55.0WDual DC: ≤57.6W | Single AC: ≤68.0WDual AC: ≤72.0W | Single AC: ≤98.0WDual AC: ≤102.0W |
| Heat Dissipation | Fanless, natural heat dissipation | Fanless, natural heat dissipation | Fanless, natural heat dissipation | Fan-cooled |
| Operating Humidity | 5%~95% (Non-condensing) | 5%~95% (Non-condensing) | 5%~95% (Non-condensing) | 5%~95% (Non-condensing) |
| Operating Temperature | -40℃~70℃ | -40℃~70℃ | -40℃~70℃ | -40℃~70℃ |
| Storage Temperature | -40℃~85℃ | -40℃~85℃ | -40℃~85℃ | -40℃~85℃ |
