| Brand Name: | H3C |
| Model Number: | IE4320 Series |
| MOQ: | 1 |
| Price: | depending on order quantity and specific model |
| Payment Terms: | T/T |
| Supply Ability: | Up to 30 days |

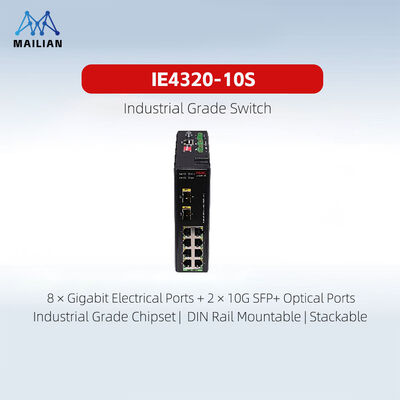

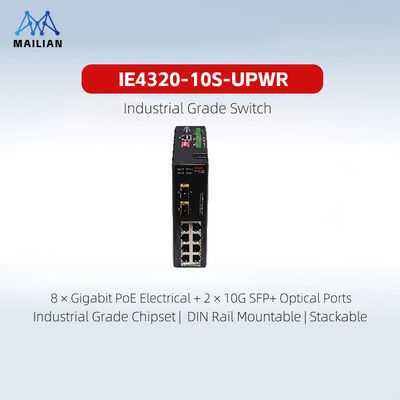

| Item | IE4320-10S | IE4320-10S-UPWR |
|---|---|---|
| Switching Capacity | 3.3Tbps | 3.3Tbps |
| Packet Forwarding Rate | 102Mpps | 102Mpps |
| Dimensions (W*D*H) (mm) | 44*130*150 | 44*130*150 |
| Weight | ≤1.0kg | ≤1.0kg |
| Installation Method | DIN-Rail Mounting | DIN-Rail Mounting |
| Power Connector | Phoenix Terminal Block | Phoenix Terminal Block |
| Configuration Port | 1*RJ45 Console Port | 1*RJ45 Console Port |
| DIP Switch | 4-channel DIP switch for fast configuration | 4-channel DIP switch for fast configuration |
| DI/DO | 1*DI, 1*DO | 1*DI, 1*DO |
| IP Rating | IP41 | IP41 |
| Service Ports | 8*10/100/1000BASE-T ports, 2*1G/10G SFP+ ports | 8*10/100/1000BASE-T (PoE++) ports, 2*1G/10G SFP+ ports |
| Power Input | Dual redundant input: 24~48VDC (18~55VDC) | Dual redundant input: 18~57VDC18~48V for non-PoE48V~57V for PoE52V~57V for PoE+54V~57V for PoE++ |
| Static Power Consumption | Single DC: 10WDual DC: 11W | Single DC: 11WDual DC: 12W |
| Full-Load Power Consumption | Single DC: 15WDual DC: 16W | Single power: 200W (PoE: 160W)Dual power: 400W (PoE: 360W) |
| PoE | N/A | Standard: 802.3af, 802.3at, 802.3btMax power per port: 60WTotal power: 360W |
| Heat Dissipation | Fanless, Natural Cooling | Fanless, Natural Cooling |
| Operating Humidity | 5%~95% (Non-condensing) | 5%~95% (Non-condensing) |
