| Brand Name: | H3C |
| Model Number: | IE4300U Series |
| MOQ: | 1 |
| Price: | depending on order quantity and specific model |
| Payment Terms: | T/T |
| Supply Ability: | Up to 30 days |

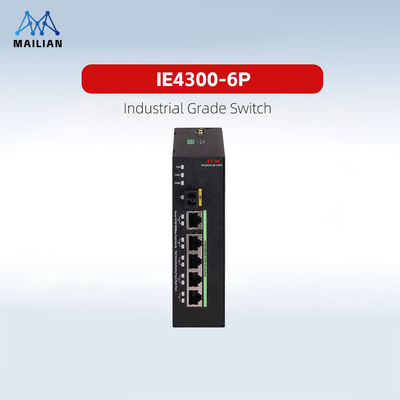

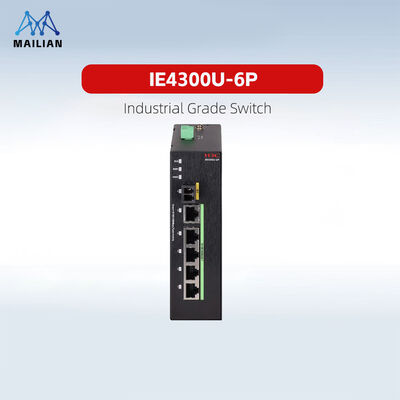

The IE4300U Series is a new-generation industrial switch developed in strict compliance with industrial specifications. Built on an industrial-grade hardware platform, the components across the entire series offer significantly higher reliability compared to commercial-grade components under equivalent conditions.
Featuring a fanless thermal energy loop design, the switch incorporates multiple heat dissipation structures such as built-in heat sinks and thermally conductive gels. This ensures consistent performance in even the harshest environments, supporting a wide operating temperature range of -40°C to 85°C.
The series is shock-resistant, dustproof, and anti-corrosion, complying with the IP41 protection standard.
Equipped with a full-metal casing, the switch supports 10KV lightning protection.
The power supply supports isolated power design, reverse connection protection, and overcurrent protection.
| System Specifications of IE4300U Series | ||
|---|---|---|
| Item | IE4300U-6P | IE4300U-6P-PWR |
| Switching Capacity | 672Gbps/6.72Tbps | 672Gbps/6.72Tbps |
| Packet Forwarding Rate | 128Mpps | 128Mpps |
| Dimensions(W*D*H) (mm) | 44*131*150 | 44*131*150 |
| Weight | ≤0.55kg | ≤0.65kg |
| Installation | DIN-Rail Mounting | DIN-Rail Mounting |
| Power Connector | Terminal Block | Terminal Block |
| Ports | 5*10/100/1000BASE-T ports1*optical port (built-in industrial-grade 1000M LC single-mode dual-core optical module, 1310nm, 20km) | 5*10/100/1000BASE-T PoE+ ports1*optical port (built-in industrial-grade 1000M LC single-mode dual-core optical module, 1310nm, 20km) |
| IP Rating | IP41 | IP41 |
| Power Input | Single input: AC220V/DC220VInput range: 100–240VAC, 50/60HzMax range: 85–264VAC or DC220V (192–288VDC) | Dual redundant input: 48–57VDC |
| Static Power Consumption | ≤1.2W | ≤104W (PoE: 100W) |
| Full-Load Power Consumption | ≤2.9W | ≤104W (PoE: 100W) |
| Heat Dissipation | Fanless, natural cooling | Fanless, natural cooling |
| Operating Humidity | 5%–95% (non-condensing) | 5%–95% (non-condensing) |
| Operating Temperature | -40°C to 85°C | -40°C to 85°C |
| Storage Temperature | -40°C to 85°C | -40°C to 85°C |
