H3C S5560S-EI Series Layer 3 Gigabit Enterprise Switch, 10G SFP+ Uplink, IRF2 Stacking, IPv4 IPv6 Dual Stack, Reliable Convergence Network Equipment For Business Campus

Brand Name:	H3C
Model Number:	H3C S5560S-EI Series
MOQ:	1
Price:	Subject to the specific model and configuration
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Exchange Capacity:

826Gbps/8.26Tbps

Package Forwarding Rate:

228Mpps To 264Mpps

Dimensions:

440×360×43.6 Mm

Weight:

≤8kg To ≤9.5kg

Input Voltage:

100V~240V AC, 50/60Hz Or -36V~-72V DC

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Product Description

H3C S5560S-EI Series Layer 3 Gigabit Enterprise Switch

High-performance Ethernet switch with 10G SFP+ uplink, IRF2 stacking, IPv4/IPv6 dual stack, designed for reliable convergence network equipment in business campus environments.

Product Overview

H3C S5560S-EI series switches are H3C's new high-performance Ethernet switch products, based on the industry's professional high-performance hardware architecture and H3C's advanced Comware V7 software platform. These switches achieve high port density in 1U devices and feature a pluggable dual power supply structure design.

Key Specifications

Model	Exchange Capacity	Package Forwarding Rate	Dimensions (W×D×H mm)	Weight

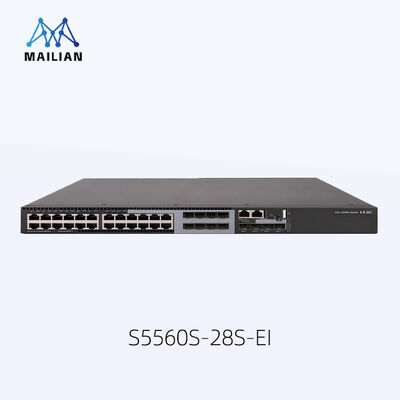

S5560S-28S-EI	826Gbps/8.26Tbps	228Mpps	440×360×43.6	≤8kg

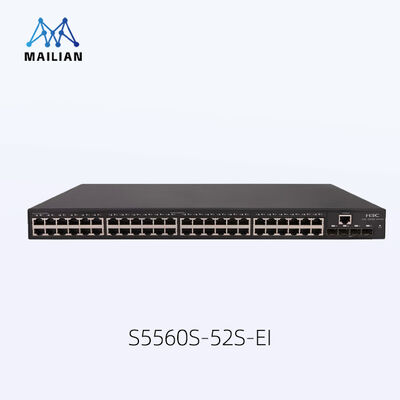

S5560S-52S-EI	826Gbps/8.26Tbps	264Mpps	440×360×43.6	≤8.5kg

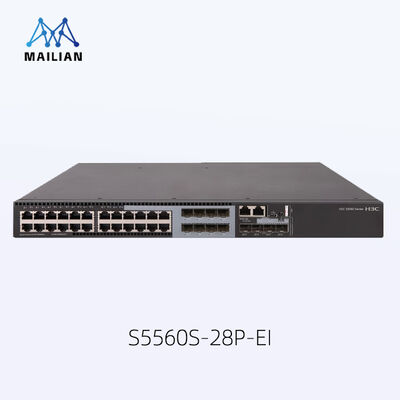

S5560S-28P-EI	826Gbps/8.26Tbps	126Mpps	440×360×43.6	≤8kg

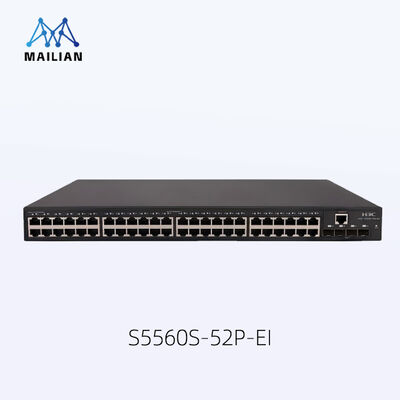

S5560S-52P-EI	826Gbps/8.26Tbps	166Mpps	440×360×43.6	≤8.5kg

Port Configuration

Manage network ports: 1
Manage serial ports: 1 x RJ-45 Console port, 1 x USB and MICRO USB port
Front panel configurations vary by model with combinations of 10/100/1000Base-T ports and SFP ports
Service port: 4 Gigabit SFP+ or SFP ports depending on model

Advanced Features

SDN/OpenFlow 1.3 standard support
Port aggregation support for GE, 10GE, and 40G
IRF2 intelligent elastic architecture for distributed device management
IPv4/IPv6 dual-stack routing with comprehensive protocol support
Advanced multicast capabilities including IGMP, MLD, and PIM
Comprehensive security features including 802.1X, RADIUS, and SSH 2.0
Rich QoS strategies with L2-L4 packet filtering
PoE capabilities with Fast PoE and Perpetual PoE features

Management & Maintenance

Support for CLI, Telnet, and console ports
SNMPv1/v2/v3 and RMON support
iMC Intelligent Management Center compatibility
Telemetry visualization and NETCONF protocol support
Python script management and O&M capabilities

Environmental Specifications

Operating temperature: -5℃ to 45℃
Relative humidity: 5% to 95% (non-condensing)
Input voltage: AC 100V-240V or DC -36V to -72V
Professional 10KV service port lightning protection
