H3C S5560-EI-G Series High Performance Enterprise Ethernet Switch, 10G Uplink Ports, IRF2 Virtual Stacking, IPv4&IPv6 Dual Stack, Stable Layer 3 Gateway For Campus & Office Networking

Brand Name:	H3C
Model Number:	H3C S5560-EI-G series
MOQ:	1
Price:	Subject to the specific model and configuration
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Exchange Capacity:

1.36Tbps/13.6Tbps

Package Forwarding Rate:

228Mpps To 264Mpps

Dimensions:

440×360×44mm Or 440×260×44mm

Weight:

3.15kg To 4.40kg

Power Consumption:

23W To 83W

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Product Description

H3C S5560-EI-G Series High Performance Enterprise Ethernet Switch

H3C S5560-EI-G series switches are the latest secure and controllable Ethernet switches launched by H3C Technology Co., Ltd. The host is solidified with 4-port 10,000 gigabit optical ports and supports multiple authentication methods and encryption technologies for secure and reliable operation.

Technical Specifications

Properties	S5560-30C-EI-G	S5560-54C-EI-G	S5560-30F-EI-G	S5560-54F-EI-G	S5560-28S-EI-G	S5560-52S-EI-G	S5560-28F-EI-G	S5560-52F-EI-G
Exchange capacity	1.36Tbps/13.6Tbps
Package forwarding rate	228Mpps	264Mpps	228Mpps	264Mpps	228Mpps	264Mpps	228Mpps	264Mpps
Dimensions (W×D×H mm)	440×360×44				440×260×44
Weight	4.1kg	4.40kg	4.00kg	4.25kg	3.15kg	3.40kg	3.20kg	3.55kg
Power Consumption (Static)	23W	32W	32W	37W	24W	31W	23W	29W
Power Consumption (Full Load)	42W	50W	48W	64W	44W	60W	53W	83W

Port Configuration

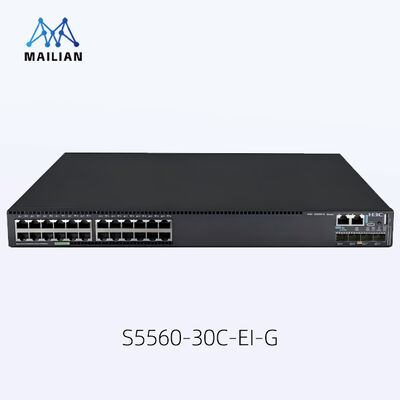

S5560-30C-EI-G: 24 x 10/100/1000BASE-T electrical ports, 4 x 1G/10G BASE-X SFP+ ports
S5560-54C-EI-G: 48 x 10/100/1000BASE-T electrical ports, 4 x 1G/10G BASE-X SFP+ ports

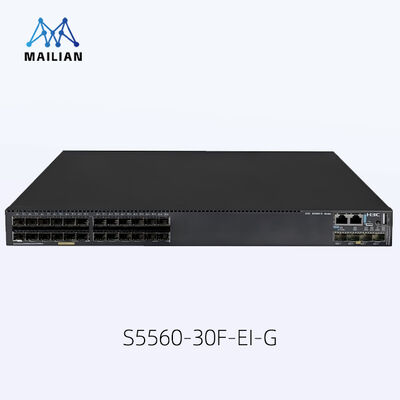

S5560-30F-EI-G: 24 x 1000BASE-X SFP ports, 4 x 1G/10G BASE-X SFP+ ports

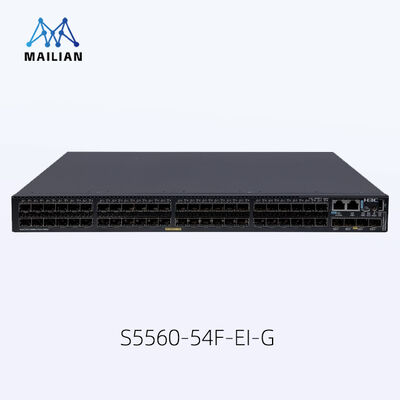

S5560-54F-EI-G: 48 x 1000BASE-X SFP ports, 4 x 1G/10G BASE-X SFP+ ports

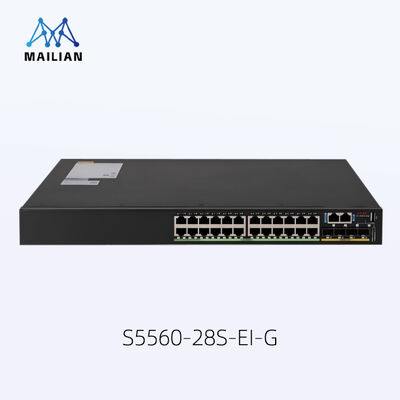

S5560-28S-EI-G: 24 x 10/100/1000BASE-T electrical ports, 4 x 1G/10G BASE-X SFP+ ports

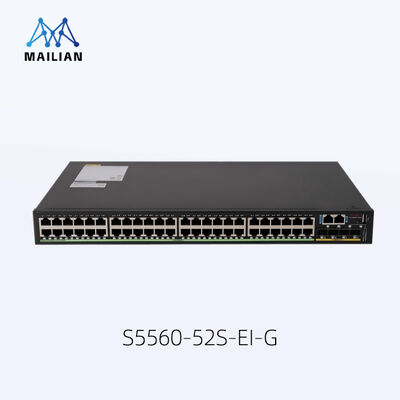

S5560-52S-EI-G: 48 x 10/100/1000BASE-T electrical ports, 4 x 1G/10G BASE-X SFP+ ports

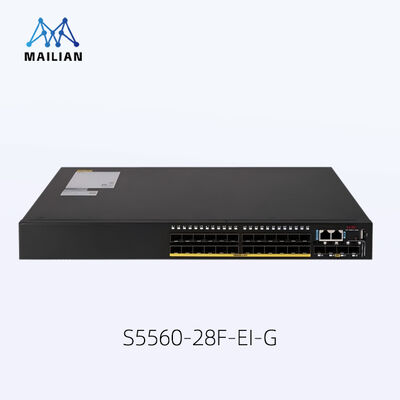

S5560-28F-EI-G: 24 x 1000BASE-X SFP ports, 4 x 1G/10G BASE-X SFP+ ports

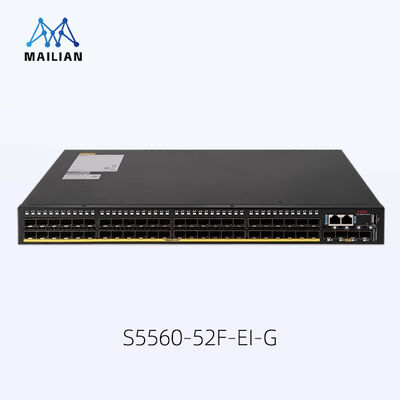

S5560-52F-EI-G: 48 x 1000BASE-X SFP ports, 4 x 1G/10G BASE-X SFP+ ports

Key Features

IRF2 Virtual Stacking Technology
IPv4 & IPv6 Dual Stack Support
10G Uplink Ports
Stable Layer 3 Gateway
SDN/OpenFlow 1.3 Support
Advanced Security Features
Comprehensive QoS Strategies
Multiple Management Interfaces

IRF2 Intelligent Elastic Architecture Benefits

Simplified Management: Unified logical device management through any port
Streamlined Operations: Single device configuration manages entire system
Elastic Expansion: Hot-swappable device addition without service interruption
High Reliability: Link, device, and protocol-level redundancy with 1:N backup
Enhanced Performance: Scalable switching capacity and port density

Security & Reliability

Multiple authentication methods (802.1x, Portal, MAC address)
Enhanced ACL control with VLAN-based deployment
Unicast Reverse Path Finding (uRPF) for source address validation
Power supply and fan fault detection with automatic adjustment
Comprehensive link-level reliability protocols (STP/RSTP/MSTP/Smart Link/RRPP)

Environmental Specifications

Operating Temperature: 0℃～45℃
Relative Humidity: 5%～95% (non-condensing)
Input Voltage: AC 100V~240V or DC -48V~-60V (depending on model)
Green Energy Saving: Supports EEE (802.3az) and Port Schedule Down
