H3C S7000X Next-Generation Campus Core Modular Enterprise Switch, High Capacity Stable Network Core Device, Support 10G/25G Ports & IRF Stacking Reliable Data Center Ethernet Switch

Brand Name:	H3C
Model Number:	H3C S7000X
MOQ:	1
Price:	Subject to the specific model and configuration
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Exchange Capacity:

68.2/307.2 Tbps (LS-7003X), 102.4/460.8 Tbps (LS-7006X)

Package Forwarding Rate:

51200 Mpps (LS-7003X), 76800 Mpps (LS-7006X)

Maximum GE Ports:

120 (LS-7003X), 288 (LS-7006X)

Operating Temperature:

0℃～45℃

Dimensions:

175mm*436mm*420mm (LS-7003X), 575mm*436mm*420mm (LS-7006X)

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Product Description

H3C S7000X Next-Generation Campus Core Modular Enterprise Switch

The H3C S7000X is a high-capacity, stable network core device supporting 10G/25G ports and IRF stacking. This reliable data center Ethernet switch is designed for high-performance, high port density, high-speed, and easily expandable network environments.

Product Overview

The H3C S7000X series Ethernet switches provide 10/100/1000Base-T adaptive Ethernet ports, SFP, and SFP+ optical ports. In enterprise networks, it serves as core equipment providing high-density 1000 gigabit downlink access and large capacity uplink bandwidth. In metropolitan area networks or industrial applications, it delivers gigabit access to end users or low-end switches while aggregating traffic to wide area networks through 10,000 gigabit fiber or link aggregation.

Technical Specifications

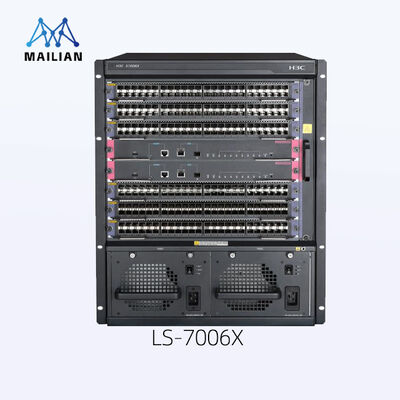

Project	LS-7003X	LS-7006X
Exchange capacity	68.2/307.2 Tbps	102.4/460.8 Tbps
Package forwarding rate	51200 Mpps	76800 Mpps
Number of slots on main control board	1~2	2
Number of slots on business board	1~3	6
Maximum number of 10GE ports	108	288
Maximum number of GE ports	120	288
Redundant backups of main console	1+1	1+1
Number of fan frames	1	1
Number of power module slots	2	2
Dimensions (H * W * D)	175mm436mm420mm	575mm436mm420mm
Weight of full machine	<30kg	<75kg
Operating ambient temperature	0℃～45℃
Relative humidity in working environment	5%~95%, no condensation
Storage ambient temperature	-40℃～70℃
Relative humidity of storage environment	5%~95%, no condensation
Working altitude	-60m～5000m

Note: From zero altitude, the maximum working ambient temperature reduces by 0.33°C for every 100 meters of altitude increase.

Key Features

Ethernet Characteristics

Support for 802.1Q
LLDP supported
Static MAC configuration
Supports MAC address learning limit
Supports port mirroring and stream mirroring
Port isolation supported
Support 802.1d (STP) / 802.1w (RSTP) / 802.1s (MSTP)
PVST+ supported
IEEE 802.3ad (dynamic link aggregation), static link aggregation, and cross-board link aggregation supported

Routing Characteristics

Static routing, RIP, OSPF, IS-IS, and BGP4 supported
Equivalent routing supported
Support policy routing
Support for routing strategies
Supports IPv4 and IPv6 dual protocol stacks
Supports IPv6 static routing, RIPng, OSPFv3, IS-ISv6, and BGP4+
VRRPv3 supported
Supports Pingv6, Telnetv6, FTPv6, TFTPv6, DNSv6, and ICMPv6
Transition technologies from IPv4 to IPv6 supported
IPv6 equivalent routing supported
IPv6 policy routing supported
IPv6 routing policy supported

Multicast

Supports PIM-DM, PIM-SM, PIM-SSM, MSDP, MBGP, Any-RP
IGMP V1/V2/V3 and IGMP V2/V3 Snooping supported
Supports PIM6-DM, PIM6-SM, and PIM6-SSM
MLD V1/V2 and MLD V1/V2 Snooping supported
Multicast policies supported

ACL/QoS

Support standard and extended ACLs
Ingress/Egress ACL supported
VLAN ACL supported
Support for global ACLs
Diff-Serv QoS supported
Supports queue scheduling mechanisms including SP, WRR, WFQ, PQ
Support traffic shaping
Support congestion avoidance
Priority marks supported
Support 802.1p, TOS, DSCP, EXP priority mapping

Security Mechanisms

Support EAD security solutions
Portal authentication supported
Support MAC authentication
Supports IEEE 802.1x and IEEE 802.1x SERVER
AAA/Radius supported
HWTACACS supported with command-line authentication
SSHv1.5/SSHv2 supported
Supports ACL flow filtering mechanism
Supports plaintext and MD5 authentication for OSPF, RIPv2, and BGPv4 packets
Support hierarchical command line protection
Supports Telnet login and password mechanisms with restricted IP addresses
Supports various combination bindings including IP address, VLAN ID, MAC address, and port
Support uRPF
Support backup mechanism of primary and standby data
Support alarm and self-recovery after failure
Data logs supported
Support IEEE802.3AE

Advanced Technologies

IRF2 (Second Generation Intelligent Elastic Architecture)

The H3C S7000X series switches support IRF2 technology, which connects multiple physical devices to virtualize them as a single logical device. This provides simplified management, streamlined business operations, elastic expansion, high reliability, enhanced performance, and ease of management.

Distributed Multi-Engine Design

Innovative hardware design with fully distributed independent control engine, detection engine, and maintenance engine provides strong control capabilities and millisecond-level high reliability:

Distributed control engine - All business boards provide powerful control processing for protocol packets with anti-attack capabilities
Distributed detection engine - Performs fast fault detection with millisecond-level response for uninterrupted services
Distributed maintenance engine - Supports intelligent power management and device online status checking

Comprehensive IPv6 Solution

The S7000X series fully supports IPv6 protocol family including IPv6 static routing, RIPng, OSPFv3, IS-ISv6, BGP4+, and other IPv6 routing protocols.

Three-Plane Security Guarantee

Comprehensive security protection mechanism ensuring network security from control, management, and forwarding planes with built-in protocol packet attack identification, secure management protocols, and advanced forwarding security features.
