| Brand Name: | H3C |
| Model Number: | S5130V2-LI Series |
| MOQ: | 1 |
| Price: | depending on order quantity and specific model |
| Payment Terms: | T/T |
| Supply Ability: | Up to 30 days |
The H3C S5130V2-LI switch is a new-generation intelligent managed Gigabit Ethernet switch developed with industry-leading ALIC technology, featuring high performance, high port density, and high security.
SmartMC is primarily designed to solve the centralized management of numerous distributed network devices. It aims to address switch-dominated operation and maintenance tasks for small enterprises. By adopting a built-in mode and graphical user interface, SmartMC realizes unified operation, maintenance and management of the entire network.
Provides Gigabit access for small and medium-sized enterprise network users, supporting multimedia services such as VOD, and delay-sensitive voice services such as VoIP. Offers multicast-enabled audio and video service capabilities with Gigabit port access and uplinks.
Adopts professional built-in lightning protection technology with industry-leading 10KV lightning protection capability on service ports, greatly reducing equipment damage caused by lightning strikes even in harsh working environments.
Utilizes the latest energy-saving chips and innovative architectural design to achieve ultra-low power consumption for Gigabit switches, delivering users a new green, eco-friendly and energy-efficient network access solution while lowering maintenance costs.

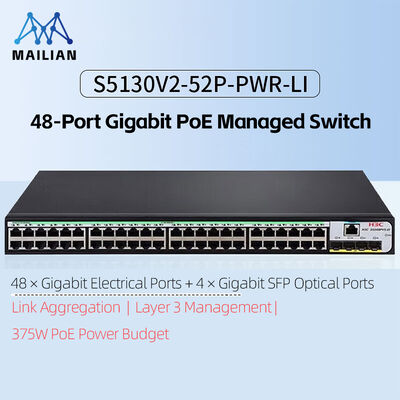

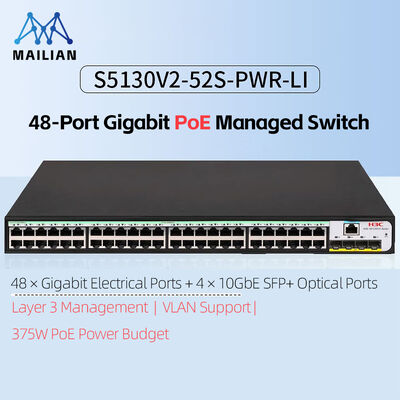

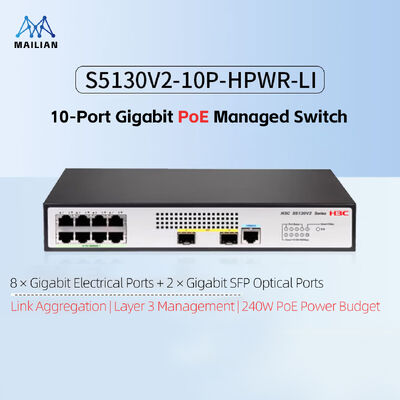

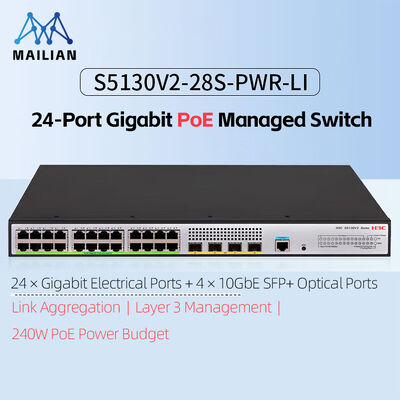

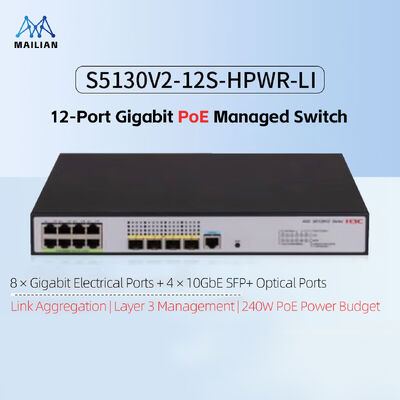

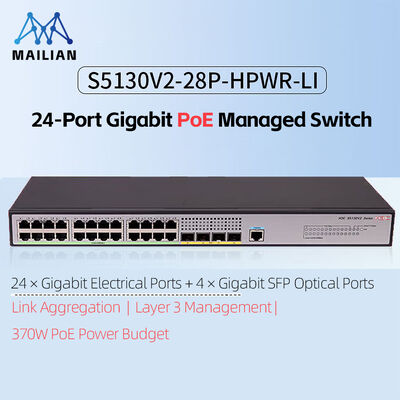

| Item | S5130V2-10P-HPWR-LI | S5130V2-12S-HPWR-LI | S5130V2-28P-PWR-LI | S5130V2-28P-HPWR-LI | S5130V2-28S-PWR-LI | S5130V2-28S-HPWR-LI | S5130V2-52P-PWR-LI | S5130V2-52S-PWR-LI |
|---|---|---|---|---|---|---|---|---|
| Switching Capacity | 672Gbps/6.72Tbps | 672Gbps/6.72Tbps | 672Gbps/6.72Tbps | 672Gbps/6.72Tbps | 672Gbps/6.72Tbps | 672Gbps/6.72Tbps | 672Gbps/6.72Tbps | 672Gbps/6.72Tbps |
| Packet Forwarding Rate | 108 Mpps | 108 Mpps | 126 Mpps | 126 Mpps | 126 Mpps | 126 Mpps | 166 Mpps | 166 Mpps |
| Port Description | 8×10/100/1000BASE-T (PoE+) + 2×1000BASE-X SFP | 8×10/100/1000BASE-T (PoE+) + 4×1G/10G BASE-X SFP+ | 24×10/100/1000BASE-T (PoE+) + 4×1000BASE-X SFP | 24×10/100/1000BASE-T (PoE+) + 4×1000BASE-X SFP | 24×10/100/1000BASE-T (PoE+) + 4×1G/10G BASE-X SFP+ | 24×10/100/1000BASE-T (PoE+) + 4×1G/10G BASE-X SFP+ | 48×10/100/1000BASE-T (PoE+) + 4×1000BASE-X SFP | 48×10/100/1000BASE-T (PoE+) + 4×1G/10G BASE-X SFP+ |
| Stacking | Max 9 units | Max 9 units | Max 9 units | Max 9 units | Max 9 units | Max 9 units | Max 9 units | Max 9 units |
| Dimensions (W×D×H, mm) | 330×230×43.6 | 330×230×43.6 | 440×260×43.6 | 440×260×43.6 | 440×260×43.6 | 440×260×43.6 | 440×260×43.6 | 440×260×43.6 |
| Weight | ≤2.3 kg | ≤2.3 kg | ≤3.7 kg | ≤3.7 kg | ≤3.7 kg | ≤3.7 kg | ≤4.1 kg | ≤4.1 kg |
| Input Voltage | AC: 90-264V, 47-63Hz | AC: 90-264V, 47-63Hz | AC: 90-264V, 47-63Hz | AC: 90-264V, 47-63Hz | AC: 90-264V, 47-63Hz | AC: 90-264V, 47-63Hz | AC: 90-290V, 47-63Hz | AC: 90-290V, 47-63Hz |
| Idle Power Consumption | AC: 13W | AC: 13W | AC: 21W | AC: 18W | AC: 21W | AC: 18W | AC: 27W | AC: 27W |
| Full Load Power Consumption | AC: 157W (PoE: 125W) | AC: 161W (PoE: 125W) | AC: 300W (PoE: 240W) | AC: 449W (PoE: 375W) | AC: 303W (PoE: 240W) | AC: 451W (PoE: 375W) | AC: 473W (PoE: 375W) | AC: 476W (PoE: 375W) |
| Operating Temperature | -5℃～45℃ | -5℃～45℃ | -5℃～45℃ | -5℃～45℃ | -5℃～45℃ | -5℃～45℃ | -5℃～45℃ | -5℃～45℃ |
| Features | Feature Description |
|---|---|
| Link Aggregation | Supports GE port aggregation, static aggregation, dynamic aggregation, and cross-device aggregation |
| Flow Control | Supports 802.3x flow control and half-duplex backpressure flow control |
| MAC Address Table | Supports blackhole MAC address and setting the maximum number of MAC addresses learned per port |
| VLAN | Supports port-based VLAN, QinQ and flexible QinQ, Voice VLAN, protocol-based VLAN, and MAC-based VLAN |
| ARP | Supports gratuitous ARP, ARP Detection, and ARP rate limiting |
| ND | Supports ND and ND Snooping |
| VLAN Interface | Supports VLAN virtual interfaces |
| DHCP | Supports DHCP Client, DHCP Snooping, DHCP Relay, DHCP Server, and DHCP Option 82 |
| Unicast Routing | Supports IPv4/IPv6 static routing, RIP/RIPng, OSPF v2/v3 |
| Multicast | Supports IGMP Snooping, MLD Snooping, and multicast VLAN |
| Storm Control | Supports broadcast/multicast/unicast storm control based on port rate percentage, PPS, and bps |
| Layer 2 Ring Network | Supports STP/RSTP/MSTP, STP Root Protection, BPDU Protection, and G.8032 Ethernet Ring Protection Switching |
| QoS / ACL | Supports 802.1p/DSCP priority marking, packet filtering, SP/WRR/SP+WRR queue scheduling, port-based rate limiting, flow-based redirection, and time-range |
| Mirroring | Supports port mirroring, flow mirroring, and remote mirroring |
| Security Features | Supports user hierarchical management, password protection, AAA authentication, RADIUS authentication, HWTACACS, SSH 2.0, port isolation, 802.1X, port security, MAC address authentication, IP Source Guard, HTTPS, and EAD |
| 802.1X | Supports 802.1X authentication, port-based and MAC-based authentication, Guest VLAN, authentication on trunk ports, and dynamic QoS/ACL/VLAN assignment |
| Loading & Upgrade | Supports loading and upgrade via XModem, FTP, and TFTP |
| Management | Supports CLI, Telnet, Console port, SNMP, RMON, iMC network management, Web management, system logging, hierarchical alarms, NTP, and power/fan/temperature alarms |
| Maintenance | Supports debug information output, Ping, Tracert, Telnet remote maintenance, NQA, 802.1ag, 802.3ah, DLDP, and VCT |
