H3C S6520-SI Series Next-Generation 10G Multi-Rate Intelligent Ethernet Switches with High-Density Ports, IRF Virtualization, IPv6, Advanced Security and QoS for Enterprise Core and Campus Aggregation

Brand Name:	H3C
Model Number:	H3C S6520-SI series
MOQ:	1
Price:	Subject to the specific model and configuration
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Port Types:

1GE/10GE/40GE Optical Ports

Dimensions:

440*260*43.6 Mm

Power Consumption:

AC:15W-81W, DC:15W-81W

Operating Temperature:

0ºC～45ºC

Forwarding Rate:

240Mpps-540Mpps

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Highlight:

H3C S6520-SI 10G Ethernet switch

multi-rate intelligent network switch

high-density port enterprise switch

Product Description

H3C S6520-SI Series Next-Generation 10G Multi-Rate Intelligent Ethernet Switches

H3C S6520-SI series is a new generation of 10,000 gigabit multi-rate switches designed for high-performance and easy-to-install network environments. These third-layer Ethernet switches provide 1GE/10GE/40GE optical ports, making them ideal for enterprise core and campus aggregation applications.

Available Models

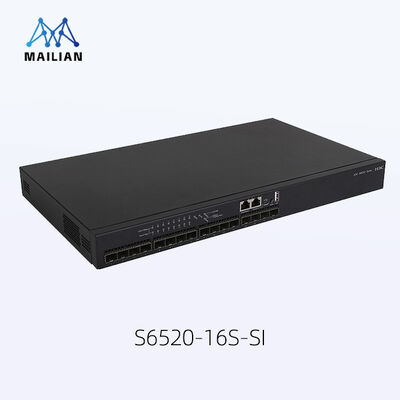

H3C S6520-16S-SI: 16 x 1/10G SFP Plus ports

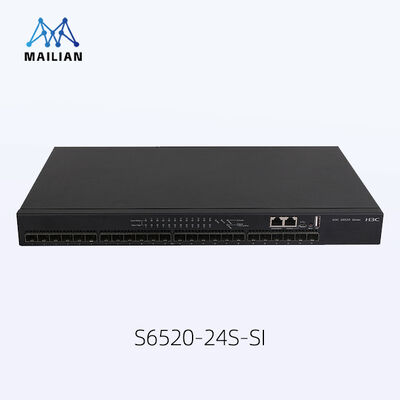

H3C S6520-24S-SI: 24 x 1/10G SFP Plus ports

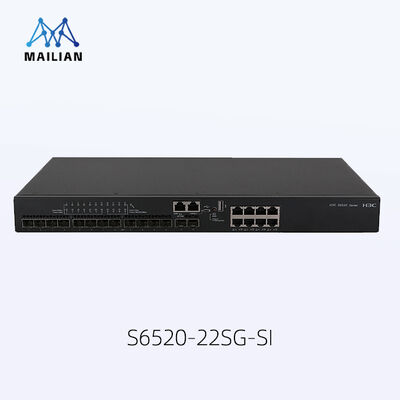

H3C S6520-22SG-SI: 8 GE ports + 14 1/10G SFP Plus ports

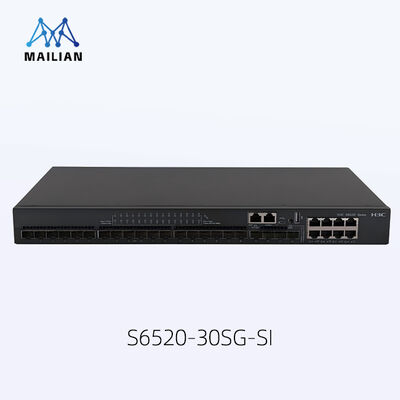

H3C S6520-30SG-SI: 8 GE ports + 22 1/10G SFP Plus ports

Technical Specifications

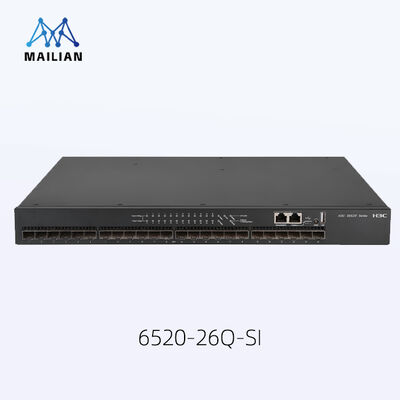

Feature	S6520-16S-SI	S6520-24S-SI	S6520-22SG-SI	S6520-30SG-SI	S6520-26Q-SI
Dimensions (W×D×H mm)	440×260×43.6	440×260×43.6	440×260×43.6	440×260×43.6	440×360×43.6
Weight	≤3.3kg	≤3.4kg	≤3.3kg	≤3.4kg	≤5kg
Port Configuration	16×1/10G SFP+	24×1/10G SFP+	8 GE + 14×1/10G SFP+	8 GE + 22×1/10G SFP+	24×1/10G SFP+ + 2×QSFP+
AC Power Consumption (Static)	15W	17W	15W	15W	15W (single)
AC Power Consumption (Full Load)	51W	67W	45W	62W	81W (single)
Switching Capacity	2.56Tbps/23.04Tbps	2.56Tbps/23.04Tbps	2.56Tbps/23.04Tbps	2.56Tbps/23.04Tbps	2.56Tbps/23.04Tbps
Forwarding Rate	240Mpps	360Mpps	220Mpps	340Mpps	540Mpps

Key Features

High-Density 10G Access

Provides optical ports from gigabit to 40G with powerful forwarding performance and large-capacity switching services.

IRF2 Virtualization

Supports Intelligent Elastic Architecture 2 technology for scalability, reliability, distribution, and availability across multiple devices.

Advanced Security

Comprehensive security features including AAA/RADIUS authentication, ACL control, IP+MAC+port binding, and SSH/SSL encryption.

IPv6 Support

Full IPv6 protocol support including ND, PMTU, ICMP v6, SNMP v6, BFD v6, VRRP v3, and IPv6 tunnels.

QoS & ACL

Advanced quality of service with 8 output queues per port, flexible scheduling algorithms, and comprehensive packet filtering capabilities.

Management & Maintenance

Multiple management interfaces including CLI, Telnet, SNMP, iMC network management, and support for ISSU non-disruptive upgrades.

Advanced Capabilities

Software Defined Networking

Supports Openflow 1.3 and VXLAN technology, enabling flexible network traffic control and virtual machine migration across data centers.

Reliability & Protection

Multiple reliability protections including over-current, over-voltage, over-temperature protection, power fault detection, and automatic fan speed adjustment.

Environmental Specifications

Operating Temperature: 0ºC～45ºC | Relative Humidity: 10%～90% (non-condensing)
