H3C S5130V2-SI Series Green Intelligent Gigabit Ethernet Switches with Energy-Saving, High Reliability and Easy Management for Enterprise Campus Networks

The H3C S5130V2-SI is a new generation of high-performance, high-port density, high-security intelligent managed Gigabit Ethernet switch developed by H3C Technology using industry-leading ASIC technology. It supports IPv4/IPv6 dual-stack management and forwarding, static routing protocols, RIP and OSPF routing protocols, and offers rich management and security features.

These switches are primarily positioned at the access and aggregation layers of enterprise and campus networks, meeting high-density gigabit access requirements with fixed gigabit uplinks, and building high-performance end-to-end IP network solutions together with other H3C products.

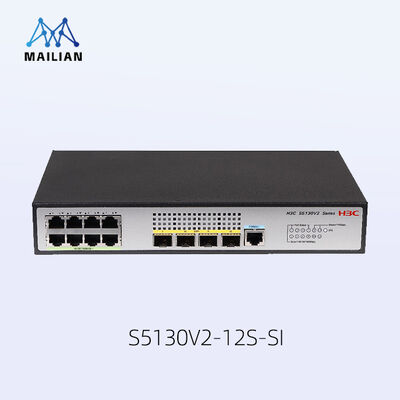

• S5130V2-12S-SI: 8×10/100/1000BASE-T ports + 4×1G/10G BASE-X SFP+ ports

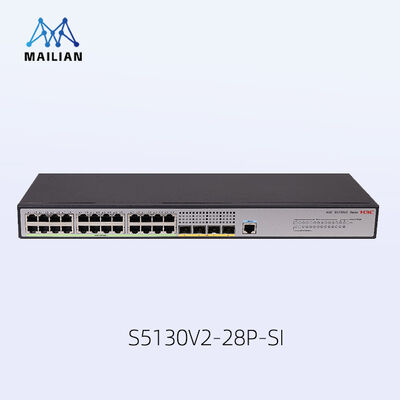

• S5130V2-28P-SI: 24×10/100/1000BASE-T ports + 4×1000BASE-X SFP ports

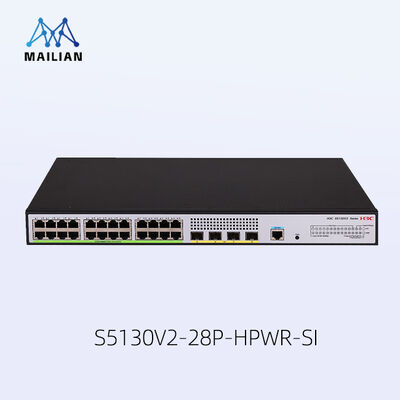

• S5130V2-28P-HPWR-SI: 24×10/100/1000BASE-T ports + 4×1000BASE-X SFP ports

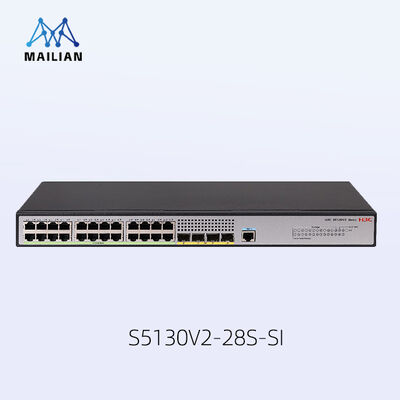

• S5130V2-28S-SI: 24×10/100/1000BASE-T ports + 4×1G/10G BASE-X SFP+ ports
• S5130V2-28S-HPWR-SI: 24×10/100/1000BASE-T ports + 4×1G/10G BASE-X SFP+ ports

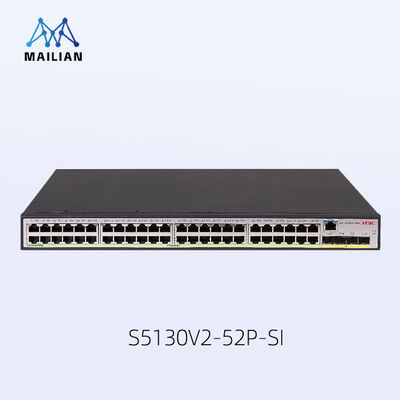

• S5130V2-52P-SI: 48×10/100/1000BASE-T ports + 4×1000BASE-X SFP ports

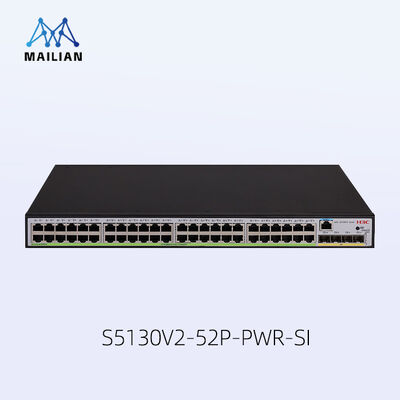

• S5130V2-52P-PWR-SI: 48×10/100/1000BASE-T ports + 4×1000BASE-X SFP ports

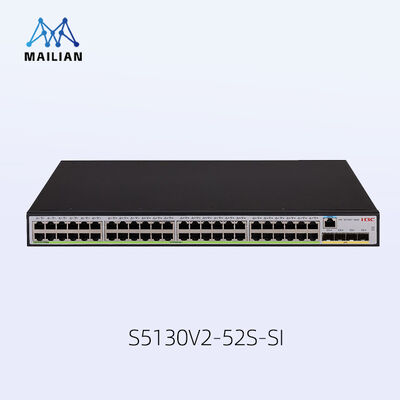

• S5130V2-52S-SI: 48×10/100/1000BASE-T port + 4×1G/10G BASE-X SFP+ port

SmartMC solves the problem of centralized management for large numbers of scattered network devices, providing unified network operation and management through built-in equipment and graphical operations.

Four Major Business Segments:

• Intelligent Management: Device role selection, FTP server configuration, global configuration, and network management port configuration
• Intelligent O&M: Group management, device/group upgrade backup, monitoring, and device fault replacement
• Visualization: Networking topology visualization and device list display
• Smart Business: User management with one-click armed port access

The S5130V2-SI series switches can function as managed devices within SmartMC networks for easy maintenance.

IRF2 technology allows multiple S5130V2-SI switches to form a logically independent entity, building networks with high reliability, easy scalability, and simplified management.

Key Benefits:

• Simplified Management: Single logical device management across all member devices
• Simplified Business: Single routing protocol computation and cross-device link aggregation
• Elastic Expansion: Hot-swappable device addition/removal without service interruption
• High Reliability: Link, device, and protocol-level redundancy with 1:N backup
• High Performance: Scalable switching capacity and port density

Comprehensive Security: Supports unified multi-authentication deployment, Guest VLAN, SSH V2 encryption, ARP defense functions, and EAD terminal access control for proactive network security.

Rich QoS Strategies: Layer 2-4 packet filtering, flexible queue scheduling, bidirectional ACL, traffic supervision, and sFlow for accurate network traffic monitoring.

Excellent Management: Supports SNMPv1/v2/v3, CLI, web management, Telnet, SSH2.0, VLAN-based MAC address management, and BIMS protocol for zero-configuration deployment.

High Reliability: Multiple device-level and link-level reliability protections including over-current/over-voltage/over-temperature protection, power/fan/temperature monitoring, and comprehensive link protection protocols.

Professional Lightning Protection: Built-in 10KV service port lightning protection capability for harsh working environments.

Green Energy Saving: Energy-efficient chip design with auto-power-down functionality, port energy-saving modes, and compliance with EU RoHS environmental standards.
