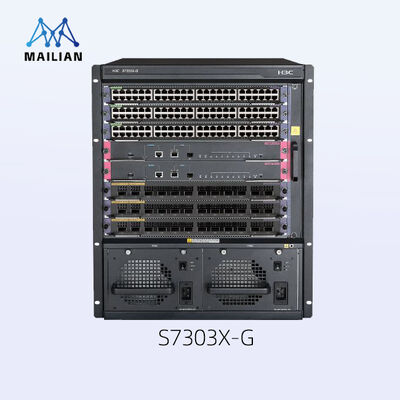

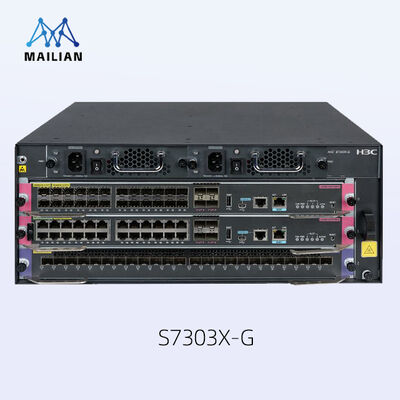

H3C S7300X-G Series Intelligent Routing Switch – High-Density 10G/40G/100G, IRF2 Virtualization, Comprehensive Security & IPv6 for Enterprise Campus & Data Center Aggregation

H3C S7300X-G series intelligent routing switches are Ethernet switch products independently developed by H3C Technology Co., Ltd., designed for network environments requiring high performance, high port density, high speed, and easy installation and expansion.

The series provides 10/100/1000Base-T adaptive Ethernet ports, SFP, SFP+, QSFP+, QSFP28 optical ports, suitable for various network applications.

• Support for 802.1Q, LLDP, static MAC configuration
• MAC address learning limit support
• Port mirroring and stream mirroring support
• Port isolation support
• Support 802.1d (STP) / 802.1w (RSTP) / 802.1s (MSTP)
• PVST+ support
• IEEE 802.3ad (dynamic link aggregation), static link aggregation, and cross-board link aggregation

• Static routing, RIP, OSPF, IS-IS, and BGP4 support
• Equivalent routing and policy routing support
• Routing strategy support
• IPv4 and IPv6 dual protocol stacks
• IPv6 static routing, RIPng, OSPFv3, IS-ISv6, and BGP4+
• VRRPv3 support
• Pingv6, Telnetv6, FTPv6, TFTPv6, DNSv6, and ICMPv6 support
• IPv4 to IPv6 transition technologies including manual tunneling, 6to4, ISATAP, and GRE tunneling

• PIM-DM, PIM-SM, PIM-SSM, MSDP, MBGP, Any-RP routing protocols
• IGMP V1/V2/V3 and IGMP V2/V3 Snooping
• PIM6-DM, PIM6-SM, and PIM6-SSM support
• MLD V1/V2 and MLD V1/V2 Snooping
• Multicast policy support

• Standard and extended ACLs support
• Ingress/Egress ACL and VLAN ACL support
• Global ACL and ACL outbound expansion support
• Diff-Serv QoS support
• SP, WRR, WFQ, PQ queue scheduling mechanisms
• Traffic shaping and congestion avoidance
• Priority marks and 802.1p, TOS, DSCP, EXP priority mapping

• EAD security solutions support
• Portal, MAC, and IEEE 802.1x authentication
• AAA/Radius and HWTACACS support
• SSHv1.5/SSHv2 support
• ACL flow filtering mechanism
• OSPF, RIPv2, and BGPv4 packet authentication
• Hierarchical command line protection
• IP address, VLAN ID, MAC address, and port binding combinations
• uRPF and primary/standby data backup mechanisms
• Alarm, self-recovery, and data logs support
• IEEE802.3AE and micro-segmentation support

The H3C S7300X-G series switches support IRF2 technology, connecting physical devices to virtualize them as a single logical device for unified management.

• Simplify Management: Single point of management for entire system
• Simplify Business: Single device routing protocol computation and cross-device link aggregation
• Elastic Expansion: Hot-swappable device addition/removal without service interruption
• High Reliability: Link, device, and protocol-level redundancy with 1:N backup
• High Performance: Scalable switching capacity and port density
• Ease of Management: Single IP management simplifies network topology and reduces maintenance costs

The S7300X-G series fully supports IPv6 protocol family including IPv6 static routing, RIPng, OSPFv3, IS-ISv6, and BGP4+.

Comprehensive security protection mechanism across control, management, and forwarding planes:

• Control Plane: Protocol packet attack identification, MD5 verification for routing protocols
• Management Plane: SNMPv3, SSH V2, 802.1x authentication, AAA/Radius, hierarchical user permissions
• Forwarding Plane: IP/VLAN/MAC/port binding, uRPF, longest matching forwarding for virus protection

• 1+1 redundant main control board and power supply backup
• Hot-swappable components
• Real-time hot backup of configuration data
• Online hot patch upgrades
• NSF/GR support for OSPF/BGP/IS-IS
• Port and cross-board link aggregation
• BFD support with <50ms fault detection
• RRPP, VCT, and Smart-Link support
