H3C S1850V3-EI Series Gigabit Web-Managed Switch with IPv6, QoS and Security for Enterprise Networks

Brand Name:	H3C
Model Number:	H3C S1850V3-EI series
MOQ:	1
Price:	Subject to the specific model and configuration
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Exchange Capacity:

502Gbps/5.02Tbps

Package Forwarding Rate:

78 Mpps To 112 Mpps

Fixed Port:

8-48 X 10/100/1000Base-T Ports + 2-4 X 1000Base-X SFP Optical Ports

PoE+ Power Supply:

125W To 400W

Operating Temperature:

-5~50°C

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Highlight:

H3C S1850V3-EI Gigabit switch with IPv6

Web-managed network switch with QoS

Enterprise security switch with warranty

Product Description

H3C S1850V3-EI Series Gigabit Web-Managed Switch with IPv6, QoS and Security for Enterprise Networks

H3C S1850V3-EI series Ethernet switches are fully Gigabit WEB management switches independently developed, designed and launched by H3C Technology Co., Ltd. to build high-performance network requirements. They provide downlink 8 gigabit (PoE/non-PoE), 24-port gigabit (PoE/non-PoE), and 48-port gigabit (PoE/non-PoE) configurations, which can be widely used in network construction scenarios in multiple industries such as government, small and medium-sized enterprises, and general vocational education.

Technical Specifications

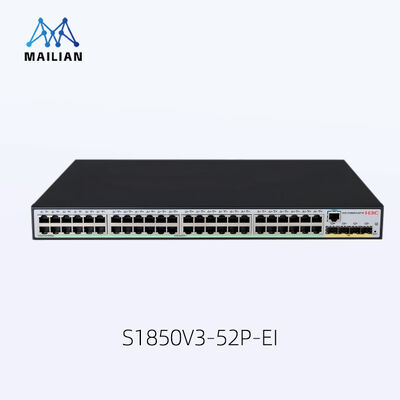

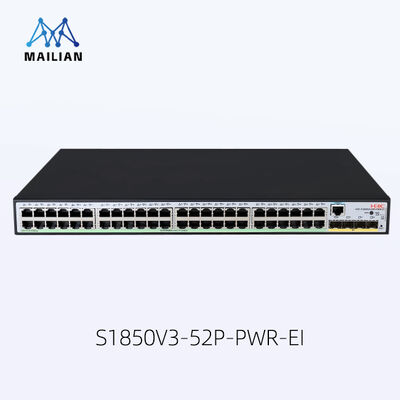

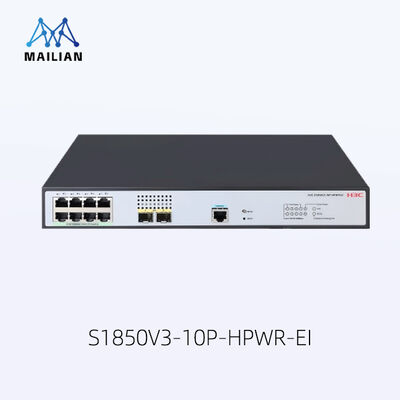

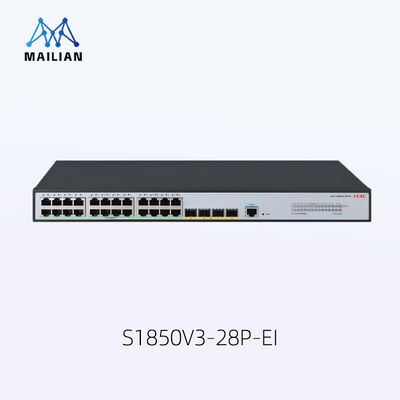

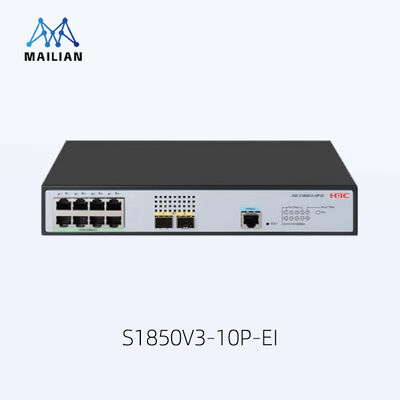

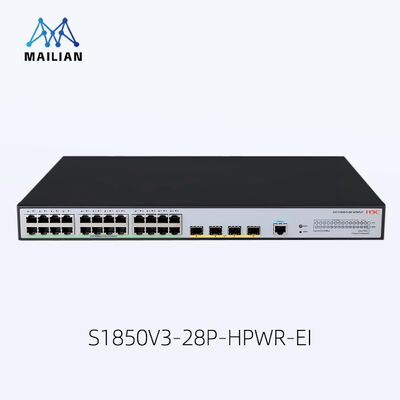

Properties	S1850V3-10P-EI	S1850V3-28P-EI	S1850V3-52P-EI	S1850V3-10P-HPWR-EI	S1850V3-28P-HPWR-EI	S1850V3-52P-PWR-EI
Exchange capacity	502Gbps/5.02Tbps
Package forwarding rate	78 Mpps	96 Mpps	112 Mpps	78 Mpps	96 Mpps	112 Mpps
Manage ports	1 Console port
Fixed port	8 x 10/100/1000Base-T ports + 2 x 1000Base-X SFP optical ports	24 x 10/100/1000Base-T ports + 4 x 1000Base-X SFP optical ports	48 x 10/100/1000Base-T ports + 4 x 1000Base-X SFP optical ports	8 x 10/100/1000Base-T ports + 2 x 1000Base-X SFP optical ports	24 x 10/100/1000Base-T ports + 4 x 1000Base-X SFP optical ports	48 x 10/100/1000Base-T ports + 4 x 1000Base-X SFP optical ports
PoE+ power supply	/	/	/	125W	400W	395W
Weight	≤ 1.2kg	≤ 2.1kg	≤ 3.1kg	≤ 2.3kg	≤ 3.7kg	≤ 4.1kg
Device power consumption	≤ 15W	≤ 22W	≤ 43W	MAX:153W (POE:125W)	MAX:449W (POE:400W)	MAX:473W (POE:395W)
Input voltage	* Rated voltage range: 100V~240V AC, 50/60Hz * Maximum voltage range: 90V~264V AC, 47~63Hz		* Rated voltage range: 100V~240V AC, 50/60Hz * Maximum voltage range: 90V~290V AC, 47~63Hz
Overall dimensions (L×W×H) (unit: mm)	266×160×43.6	440×160×43.6	440×260×43.6	330×230×43.6	440×260×43.6	440×260×43.6

Key Features

Multi-type ports: Equipped with full gigabit "electrical port + optical port" as standard for complex networking environments and network expansion
Convenient WEB management: Provides intelligent web management with visual port configuration and simple operation
Rich functional features: Supports VLAN segmentation, 802.3x, link aggregation, and IGMP snooping
High reliability design: Supports STP/RSTP/MSTP link protection technology with built-in loopback testing, cable detection, and remote loopback detection
Comprehensive security strategy: Supports DoS attack detection, ARP attack prevention, TCP attack prevention, and port security functions
Green and energy-saving design: Built-in intelligent port speed limiting and hibernation energy-saving mechanisms; complies with EU RoHS standard
Power over Ethernet Capability (PoE+): PWR models support enhanced PoE+ with maximum output power of 35W per port
AI POE features: Supports intelligent PD power supply management, power management, alarm log, PoE security, fast reboot, perpetual PoE, and long-distance PoE functions
PoE Watchdog function: Automatically detects port device connection status and restarts PoE when communication failures occur

Additional Specifications

Electrical port attributes: Supports half-duplex, full-duplex, and self-negotiation work modes; Supports MDI/MDI-X
Ethernet characteristics: Flow Control (802.3x), Green Ethernet (EEE), Dynamic link aggregation (802.3ad), 802.1p, 802.1Q, Cable diagnostics, TC snooping, MAC address learning limit
IPv4: ARP, DHCP Client
Multicast: Support for quick exit mechanisms
QoS: Diff-Serv QoS, SP/WRR/SP+WRR, Flow rate limiting, 802.1p/DSCP priority mapping
Security: User hierarchical management, Black hole MAC, Port MAC address learning limit, SSL
Network management and monitoring: WEB page configuration, FTP, TFTP, and Xmodem file download and management
System management: Supports FTP, TFTP, Xmodem, and SFTP file upload management, SNMP V1/V2C/V3, NTP clock, system work logs, cluster management
Lightning protection level: 6KV
Operating temperature: -5°C to 50°C

* Built-in network management software supports unified network management for wireless, switches, routers, etc., providing free operation and maintenance capabilities for small CT scenarios.
