H3C S5000X-EI Series 10G Uplink Managed Switch: High-Density Gigabit Access, IRF2 Virtualization, Enterprise-Grade Security

Brand Name:	H3C
Model Number:	H3C S5000X-EI series
MOQ:	1
Price:	Subject to the specific model and configuration
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Exchange Capacity:

502Gbps/5.02Tbps

Package Forwarding Rate:

126Mpps/144Mpps

Port Configuration:

24/48*10/100/1000TX + 4 SFP+

Operating Temperature:

-5°C~45°C

Input Voltage:

AC:100V～240V, 50/60Hz

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Highlight:

H3C S5000X-EI 10G uplink switch

managed gigabit access network switch

enterprise security IRF2 virtualization switch

Product Description

H3C S5000X-EI Series 10G Uplink Managed Switch

High-density gigabit access switches with 10G uplink capabilities, IRF2 virtualization technology, and enterprise-grade security features for reliable network performance.

Product Overview

The H3C S5000X-EI series represents a new generation of 10,000 Gigabit uplink Ethernet switches designed for high-performance, high port density networks with easy installation. These third-generation intelligent managed switches provide 10/100/1000Base-T adaptive Ethernet ports and 10G SFP+ uplink optical ports.

Available Models

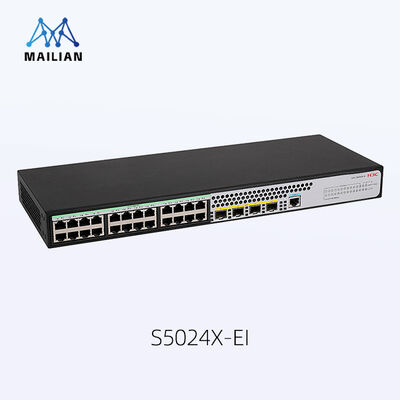

S5024X-EI: 24×10/100/1000TX Ethernet ports + 4 SFP+ ports
S5048X-EI: 48×10/100/1000TX Ethernet ports + 4 SFP+ ports

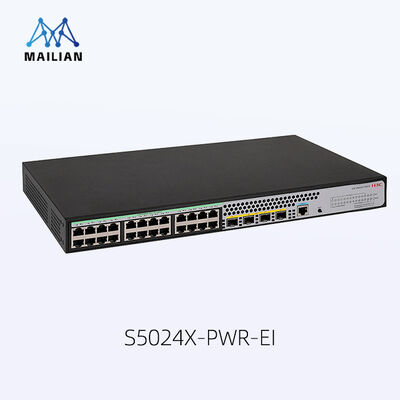

S5024X-PWR-EI: 24×10/100/1000TX Ethernet ports + 4 SFP+ ports

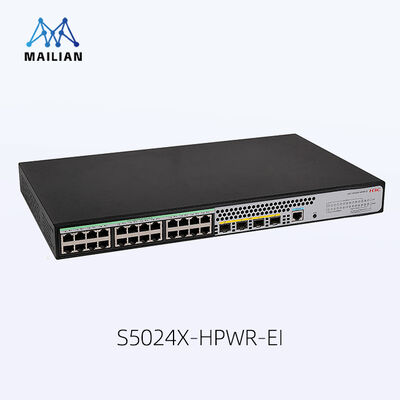

S5024X-HPWR-EI: 24×10/100/1000TX Ethernet ports + 4 SFP+ ports

Technical Specifications

Feature	S5024X-EI	S5048X-EI	S5024X-PWR-EI	S5024X-HPWR-EI
Exchange Capacity	502Gbps/5.02Tbps (Full Duplex)
Package Forwarding Rate	126Mpps	144Mpps	126Mpps	144Mpps
Maximum Power	≤24W	≤44W	≤294W	≤448W
Weight	≤2.5kg	≤3.5kg	≤4kg	≤6kg
Dimensions (L×W×H)	440×160×43.6mm	440×230×43.6mm	440×260×43.6mm	440×400×43.6mm

Key Features

IRF2 Virtualization: Connect up to 9 switches to form a single logical entity for high reliability, scalability, and simplified management.

Ethernet Capabilities:

IRF2 technology support
Port aggregation (up to 8 ports per group)
STP/RSTP/MSTP support
Port isolation and mirroring
Jumbo Frame support

Security Features:

Hierarchical user management and password protection
802.1X, MAC address authentication
SSH2.0 and HTTPS support
Port security and IP Source Guard
ARP detection and rate limiting

Management & Maintenance:

CLI, WEB, and Telnet management
SNMP and RMON support
FTP/TFTP loading and upgrading
System logs and hierarchical alarms
Virtual Cable Test and debugging support

Environmental Specifications

Operating Temperature: -5°C to 45°C

Storage Temperature: -40°C to 70°C

Operating Humidity: 5% to 95% (non-condensing)

Storage Humidity: 5% to 95% (non-condensing)

Input Voltage: AC 100V-240V, 50/60Hz

Business Performance

The H3C S5000X-EI series provides cost-effective 10G uplink capabilities with high-density gigabit access. Supports multiple authentication methods including 802.1X, WEB, and MAC authentication, along with comprehensive security and IPv6 functionality.
