H3C US600S Series 24/48-Port Gigabit L3 Managed Switch with 10G SFP+ Uplink, IPv6 & IRF2 Stacking for Enterprise Network

Brand Name:	H3C
Model Number:	H3C US600S Series
MOQ:	1
Price:	Subject to the specific model and configuration
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Exchange Capacity:

758Gbps/7.58Tbps

Package Forwarding Rate:

162Mpps/222Mpps | 207Mpps/269Mpps | 171Mpps/237Mpps

Service Ports:

24 X 10/100/1000BASE-T Ports, 4 X 1/10G SFP+ | 48 X 10/100/1000BASE-T Ports, 6 X 1/10G SFP+ | 24 X 100/1000BASE-X SFP, 8 X 10/100/1000BASE-T, 4 X 1/10G SFP+

Dimensions:

440*360*43.6 Mm

Power Consumption:

Single AC: 16W-29W | Dual AC: 18W-35W

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Highlight:

24-port Gigabit L3 managed switch

48-port enterprise network switch with 10G SFP+

IPv6 stacking managed switch with IRF2

Product Description

H3C US600S Series 24/48-Port Gigabit L3 Managed Switch with 10G SFP+ Uplink, IPv6 & IRF2 Stacking for Enterprise Network

H3C US600S is a new generation of high-performance, high-port density, high-security, and easy-to-install intelligent managed Gigabit Ethernet switch developed by H3C using industry-leading ASIC technology, supporting IPv4/IPv6 dual-stack management and forwarding, supporting static routing protocols and RIP, OSPF, BGP, ISIS and other routing protocols.

Technical Specifications

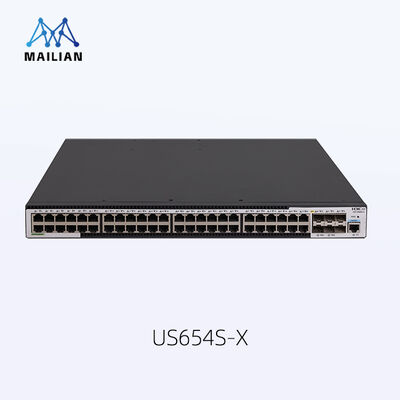

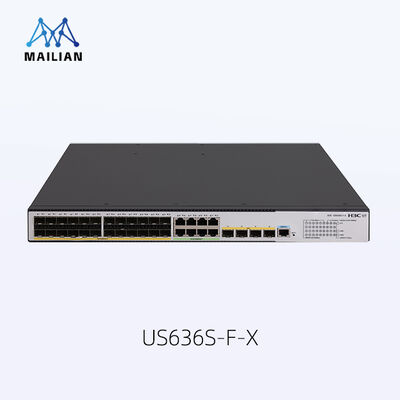

Model	US628S-X	US654S-X	US636S-F-X
Exchange capacity	758Gbps/7.58Tbps
Package forwarding rate	162Mpps/222Mpps	207Mpps/269Mpps	171Mpps/237Mpps
Service port description	24 x 10/100/1000BASE-T ports, supporting 4 x 1/10G BASE-X SFP Plus optical ports	48 x 10/100/1000BASE-T ports, supporting 6 x 1/10G BASE-X SFP Plus ports	24 x 100/1000BASE-X SFP ports, 8 x 10/100/1000BASE-T electrical ports, and support 4 x 1/10G BASE-X SFP Plus optical ports
Dimensions (WDH, mm)	44036043.6
Weight	≤5.6kg	≤6.0kg	≤4.5KG
Management port	1 Console port
Power Consumption (Static)	Single AC: 16W Single DC: 22W Dual AC: 18W Dual DC: 27W	Single AC: 18W Single DC: 23W Dual AC: 23W Dual DC: 29W	Single AC: 29W Single DC: 30W Dual AC: 35W Dual DC: 35W
Power consumption (at full load)	Single AC: 37W Single DC: 41W Dual AC: 39W Dual DC: 45W	Single AC: 55W Single DC: 56W Dual AC: 57W Dual DC: 61W	Single AC: 52W Single DC: 54W Dual AC: 58W Dual DC: 60W
Fan	2	2	3
Port lightning protection	6KV
Operating ambient temperature	-5~45℃
Relative humidity in working environment	5~95%RH, no condensation

Key Features

Port Aggregation: GE port aggregation, 10GE port aggregation, static and dynamic aggregation, cross-device link aggregation
Port Characteristics: IEEE802.3x flow control, unknown unicast/multicast/broadcast suppression
MAC Address Table: 32K MAC addresses, static/dynamic/blackhole MAC, source MAC filtering
VLAN: 802.1Q VLAN, 4K VLAN, port-based VLAN, QinQ, Guest VLAN, STP/RSTP/MSTP/PVST, MVRP, Voice VLAN
Layer 2 Ring Network Protocol: STP/RSTP/MSTP/PVST, SmartLink, RRPP ring topology
DHCP: DHCPv4/v6 Client/Snooping/Relay/Server, DHCP Snooping option82
Stacking: IRF2 intelligent elastic architecture, up to 9 stacks
IP Routing: IPv4/IPv6 static routing, RIPv1/v2, RIPng, OSPFv1/v2, OSPFv3, BGP4, BGP4+, IS-IS, VRRP/VRRPv3
IPv6: ND (Neighbor Discovery), ND Snooping, PMTU
Multicast: IGMP Snooping, MLD Snooping, PIM Snooping, Multicast VLAN, IGMP v1/v2/v3, MLD v1/v2
Mirroring: Port mirroring, stream mirroring, remote mirroring
OAM: 802.1ag, 802.3ah
ACL/QoS: Bidirectional ACL strategies, VLAN-based ACL, rate limiting, packet redirection, 802.1p, flexible queue scheduling
Safety Features: Hierarchical user management, 802.1X authentication, MAC authentication, Guest VLAN, RADIUS, TACACS, SSH2.0, port isolation/security, PORTAL authentication, EAD, MFF, DHCP Snooping, SAVI, Dynamic ARP Detection, DOS/ARP/ICMP attack protection, CPU protection
Management & Maintenance: FTP/TFTP loading, CLI, Telnet, SNMPv1/v2/v3, RMON, iMC, NTP, power/fan/temperature alarms, VCT, DLDP, LLDP, Loopback-detection
Green & Energy Saving: EEE (802.3az), port auto power-down, port schedule down function

High-Performance IPv4/IPv6 Service Capabilities

The H3C US600S series switches implement a hardware-based IPv4/IPv6 dual-stack platform that supports rich IPv4 and IPv6 Layer 3 routing protocols, multicast technologies, and policy routing mechanisms, providing users with a complete IPv4/IPv6 solution.

IRF2 (Second Generation Intelligent Elastic Architecture)

The H3C US600S series switches support IRF2 technology, which connects multiple physical devices to each other and virtualizes them as a logical device, enabling users to manage and use these devices as a single unit.

IRF2 Benefits:

Simplify Management: Unified logical device management through any port
Simplify Business: Single device routing protocol computation with cross-device link aggregation
Elastic Expansion: Hot-swappable device addition/removal without service interruption
High Reliability: Link, device, and protocol-level redundancy with 1:N backup
High Performance: Scalable switching capacity and port density

Complete Security Control Strategy

H3C US600S series switches support EAD (Terminal Access Control) function, integrating terminal security measures with network access control to create a comprehensive security system. Supports centralized MAC address authentication, 802.1x authentication, PORTAL authentication, and dynamic policy issuance. Provides enhanced ACL control logic with VLAN-based ACL issuance.

Multiple Reliability Protections

Supports pluggable AC and DC power modules, LACP/STP/RSTP/MSTP/Smart Link/RRPP protection protocols, IRF2 architecture with 1:N redundant backup, cross-device link aggregation, and comprehensive network protection mechanisms including ARP protection and attack behavior isolation.

Rich QoS Strategies

Supports L2-L4 packet filtering with stream classification based on MAC addresses, IP addresses, TCP/UDP port numbers, protocol types, and VLAN. Flexible queue scheduling algorithms including SP, WRR, WFQ, and SP+WRR modes. Bidirectional port mirroring for network monitoring and troubleshooting.

Excellent Management

Supports SNMPv1/v2/v3, iMC intelligent management center, CLI command line, TELNET, SSH2.0 encryption, SPAN/RSPAN mirroring, and remote management via Xiaobei APP for network status monitoring, parameter configuration, and troubleshooting.

Green and Energy Saving

Utilizes energy-saving chips and innovative architecture design for lower power consumption. Features auto-power-down function, port energy-saving modes, and meets EU RoHS standards for environmental protection and safety.

Fast Network Deployment

Automatic IP address acquisition from gateway without configuration. Supports automatic networking between switches via Xiaobei APP serial number scanning to quickly add all switches to the project.
