H3C US500 Series Layer 3 Managed Gigabit Ethernet Switches with 10G SFP+ Uplink, IRF Stacking, IPv6 & Advanced Security for Enterprise & SMB Networks

Brand Name:	H3C

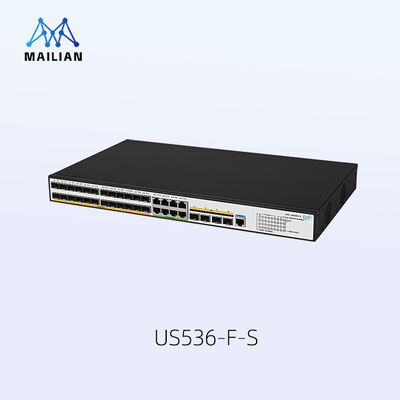

Model Number:	H3C US536-F-S
MOQ:	1
Price:	540$
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

H3C US500 Series Ethernet S...es.pdf

Exchange Capacity:

598Gbps/5.98Tbps

Forwarding Rate:

148Mpps/222Mpps

Port Configuration:

8*10/100/1000Base-T + 24 SFP + 4 SFP+

Maximum Stacking Units:

Port Lightning Protection:

6KV

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Highlight:

H3C US500 Layer 3 managed switch

Gigabit Ethernet switch with 10G SFP+

Enterprise network switch with IRF stacking

Product Description

H3C US500 Series Layer 3 Managed Gigabit Ethernet Switches

H3C US500 Series Ethernet Switches are third-generation intelligent network management switches designed for high performance, high port density, high uplink rate, and easy installation networks. These switches feature 10G SFP+ uplink, IRF stacking, IPv6 support, and advanced security capabilities for enterprise and SMB networks.

Key Specifications

Feature	US536-F-S Specification
Exchange Capacity (Full Duplex)	598Gbps/5.98Tbps
Package Forwarding Rate	148Mpps/222Mpps
Port Configuration	8×10/100/1000Base-T Ethernet ports + 24 SFP ports + 4 SFP+ ports
Stacking Capability	Maximum of 9 stacking units

Technical Features

Ethernet Capabilities

Static MAC configuration
Port and stream mirroring
Port aggregation (up to 8 ports)
10GE port aggregation
Port isolation
STP/RSTP/MSTP support
IEEE 802.3ad LACP
Jumbo Frame support
Port self-loop detection

VLAN & ARP

Port-based VLANs
MAC VLAN support
Guest VLAN support
ARP Detection function
ARP speed limiting

IPv6 & DHCP

IPv6 static routing and dual protocol stacks
DHCPv6 Client and Snooping
ND and PMTU support
IPv6 Ping, Telnet, SSHv2
DHCP Server/Client/Relay
DHCP Snooping and Option82

Routing & QoS

IPv4/IPv6 static routing
RIPv1, RIPv2, and OSPF support
Storm suppression capabilities
Package filtering
SP/WRR/SP+WRR queue scheduling
Bidirectional ACLs
Port-based rate limiting

Security Features

Hierarchical user management and password protection
SSH2.0 encryption
Port isolation and security
802.1X authentication
MAC address authentication
IP Source Guard
HTTPs support
Layer 2 and 3 Portal authentication
Dynamic ARP detection
CPU protection function

Physical Specifications

Environmental

Operating Temperature: -5°C to 45°C
Storage Temperature: -40°C to 70°C
Operating Humidity: 5% to 95% (non-condensing)
Storage Humidity: 5% to 95% (non-condensing)

Power & Dimensions

Maximum Power: 54W
Weight: <3.5kg
Input Voltage: 200-240V AC (180-264V range)
Dimensions: 440×260×43.6 mm

Protection

Port Lightning Protection: 6KV

Rich Business Performance

The H3C US500 series switch provides cost-effective 1000 gigabit uplink capabilities while achieving high-density gigabit access. It supports multiple authentication methods including 802.1X, WEB authentication, and MAC authentication, along with port isolation, access control lists, port rate limiting, and comprehensive Ethernet IPv6 functions.

Complete Security Control Strategy

The US500 series switches support extensive ARP defense functions including ARP detection for user legitimacy checking, ARP packet validity verification, and ARP rate limiting to prevent CPU overload from excessive ARP packets. Multiple authentication methods ensure flexible adaptation to diverse network environments.

Rich QoS Strategies

Supporting L2 to L4 packet filtering with stream classification technology, these switches provide flexible column scheduling algorithms with SP, WRR, and SP+WRR modes. They feature bidirectional ACLs, traffic monitoring, and port/stream mirroring capabilities for comprehensive network detection and troubleshooting.

Excellent Management Features

Supporting SNMPv1/v2/v3 and iMC intelligent management centers, the US500 series offers multiple management options including CLI command line, web network management, and TELNET. Enhanced security is provided through SSH2.0 and other encryption methods for secure device management.
