H3C US500S Series Managed Gigabit Ethernet Switch with 10G Uplink IRF Stacking and Advanced Security for Enterprise Networks

Brand Name:	H3C
Model Number:	H3C US500S series Ethernet switches
MOQ:	1
Price:	Subject to the specific model and configuration
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Highlight:

H3C US500S managed Ethernet switch

Gigabit network switch with 10G uplink

Enterprise switch with IRF stacking

Product Description

H3C US500S Series High-Performance Managed Gigabit Ethernet Switches

H3C US500S series Ethernet switches are third-generation intelligent managed switches designed for network environments requiring high performance, high port density, high uplink rate, and easy installation. These switches provide cost-effective 10G uplink capability while delivering high-density Gigabit access.

Model Specifications Comparison

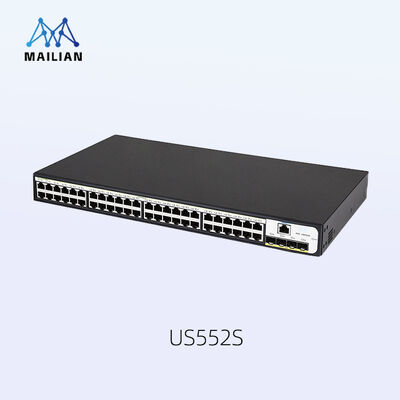

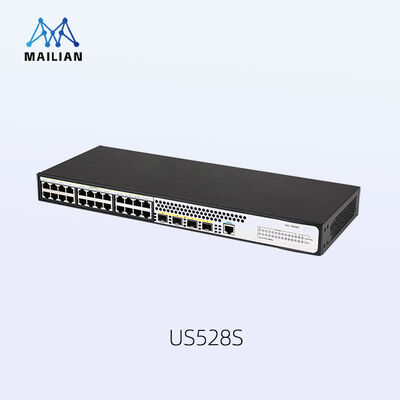

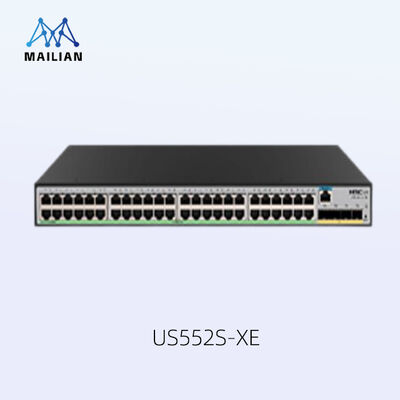

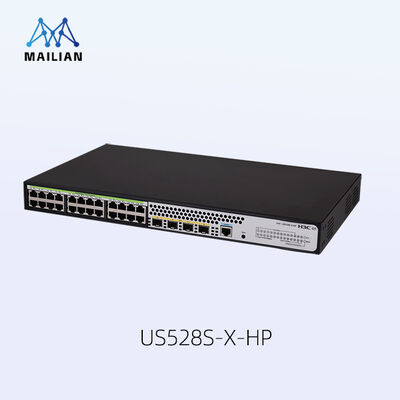

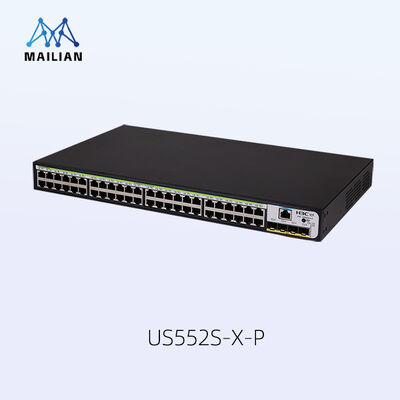

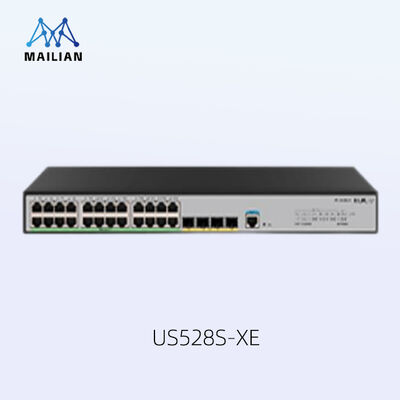

Support Features	US528S	US552S	US528S-X-HP	US552S-X-P	US528S-XE	US552S-XE
Switching Capacity (Full Duplex)	598Gbps/5.98Tbps	758Gbps/7.58Tbps	598Gbps/5.98Tbps	758Gbps/7.58Tbps	598Gbps/5.98Tbps	758Gbps/7.58Tbps
Package Forwarding Rate	108Mpps/144Mpps	148Mpps/222Mpps	148Mpps/222Mpps	148Mpps/222Mpps	148Mpps/222Mpps	148Mpps/222Mpps
Port Description	24×10/100/1000TX + 4×1000BASE-X SFP	48×10/100/1000TX + 4×1000BASE-X SFP	24×10/100/1000 BASE-T (PoE+) + 4×1G/10G SFP+	48×10/100/1000 BASE-T (PoE+) + 4×1G/10G SFP+	24×10/100/1000TX + 4×1/10GE SFP+	48×10/100/1000TX + 4×1/10GE SFP+
PoE Support	Not supported	Not supported	Supports PoE+, 35W max per port	Supports PoE+, 35W max per port	Not supported	Not supported
Device Power	MIN:15W MAX:21W	MIN:27W MAX:40W	MIN:18W MAX:451W (PoE 375W)	MIN:27W MAX:476W (PoE 375W)	MIN:16W MAX:23W	MIN:32W MAX:44W
Input Voltage	AC:180~264V, 47-53Hz	AC:180~264V, 47-53Hz	AC:90-290V, 47-63Hz	AC:90-290V, 47-63Hz	AC:90-264V, 47-63Hz	AC:90-264V, 47-63Hz
Dimensions (W×D×H mm)	440×173×44 440×230×43.6 (-H1)	440×238×44 440×260×43.6 (-H1)	440×260×43.6	440×260×43.6	440×160×43.6	440×260×43.6

Key Features

Stacking

Maximum of 9 stacking units

ERPS

ERPS function supported

Port Lightning Protection

6KV

Technical Capabilities

Ethernet: Static MAC, port aggregation (up to 8 ports), port isolation, STP/RSTP/MSTP, IEEE 802.3ad, Jumbo Frame, port self-loop detection
VLAN: Port-based, MAC, Guest, Multicast VLAN support
ARP: ARP Detection, ARP rate limiting
IPv6: Static routing, dual protocol stacks, DHCPv6 Client/Snooping, ND, IPv6 Ping/Telnet/SSHv2
DHCP: Client, Server, Snooping with Relay, Option82
DNS: Static and dynamic domain name resolution for IPv4/IPv6
Routing: IPv4/IPv6 static routing, RIPv1/v2, OSPF
Storm Suppression: Port rate percentage, PPS, BPS-based with broadcast/unicast/multicast support
QoS/ACL: Package filtering, SP/WRR/SP+WRR scheduling, bidirectional ACLs, rate limiting, flow redirects, time periods
Mirroring: Port and stream mirroring
Security: Hierarchical user management, SSH2.0, port isolation, 802.1X, port security, MAC authentication, IP Source Guard, HTTPS, Layer 2/3 Portal authentication, dynamic ARP detection
Management: CLI, Telnet, Console, SNMP, RMON, Sflow, iMC, WEB, system logs, hierarchical alarms, NTP, cloud management
Maintenance: Debugging output, Ping/Tracert, Telnet, NQA, DLDP, Virtual Cable Test

Environmental Specifications

Operating Temperature

-5°C to 50°C

Storage Temperature

-40°C to 70°C

Operating Humidity

5% to 95% (non-condensing)

Storage Humidity

5% to 95% (non-condensing)

Advanced Features

IRF2 Intelligent Elastic Architecture

Supports IRF2 technology that connects multiple physical devices to form a single logical device, enabling unified management and operation.

Comprehensive Security Control

Advanced ARP defense including ARP detection and rate limiting. Supports multiple authentication methods (802.1X, WEB, MAC) and CPU protection policies.

Rich QoS Strategies

Layer 2-4 packet filtering with stream classification. Flexible scheduling algorithms (SP, WRR, SP+WRR) and bidirectional ACL with traffic monitoring.

Excellent Management Features

Supports SNMPv1/v2/v3, iMC management center, CLI, web, TELNET, and cloud management. SSH2.0 encryption for secure management.

Fast Network Deployment

Automatic IP address acquisition and networking. Xiaobei APP support for remote management, network status monitoring, and configuration.
