H3C US300S Series Gigabit Managed Ethernet Switch with PoE+ 6kV Surge Protection and Comware V7 for SMB

Brand Name:	H3C
Model Number:	H3C US300S Series Ethernet Switches
MOQ:	1
Price:	Subject to the specific model and configuration
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Exchange Capacity:

396Gbps

Package Forwarding Rate:

78 Mpps | 114 Mpps | 126Mpps | 144 Mpps

Fixed Port:

8-48 X 10/100/1000BASE-T Ports, 2-4 X 1000BASE-X SFP Ports

Port Lightning Protection:

Operating Temperature:

-5°C~50°C

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Highlight:

Gigabit managed Ethernet switch with PoE+

H3C US300S network switch with surge protection

Comware V7 managed switch for SMB

Product Description

H3C US300S Series Gigabit Managed Switch

H3C US300S series Ethernet switches are a new generation of high-performance all-gigabit managed switches launched by H3C for the small and medium-sized business market. Built on the industry-leading Comware V7 platform, they provide comprehensive security strategies and enhanced network management capabilities. Ideal for government, small and medium-sized enterprises, schools, hotels, and various industry network deployments.

Product Specifications

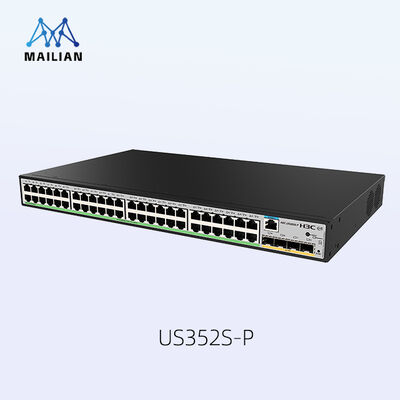

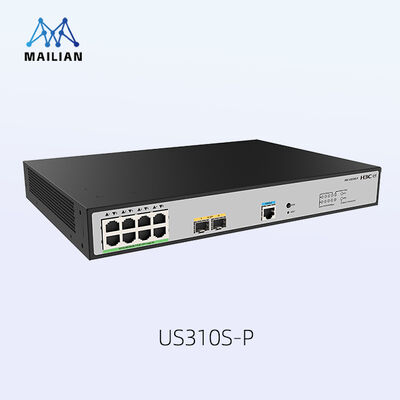

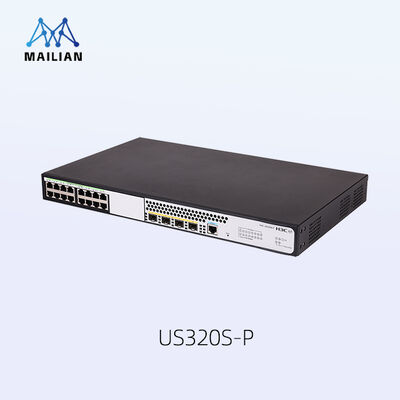

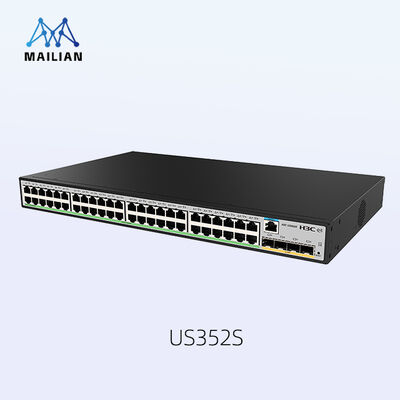

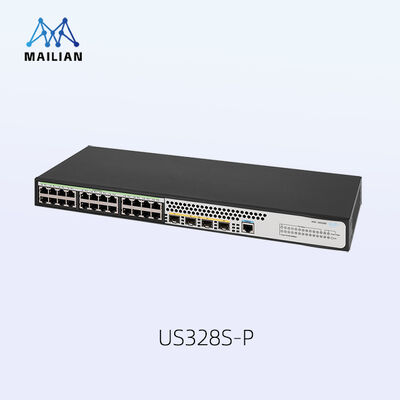

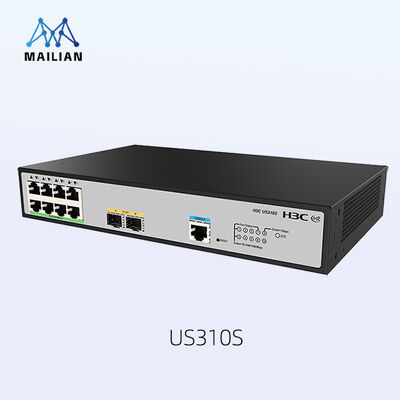

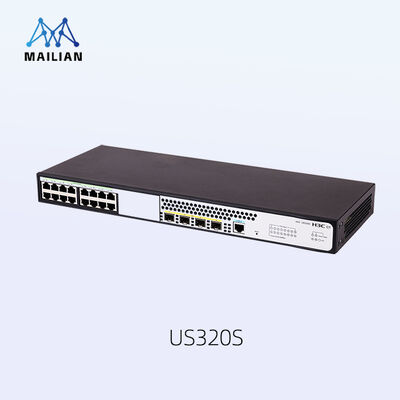

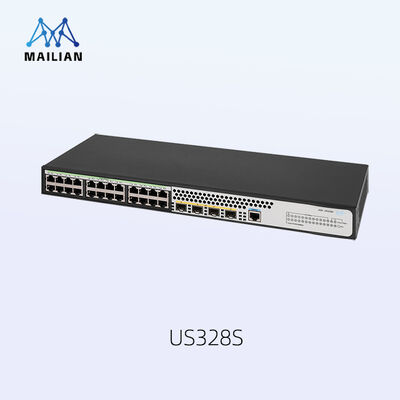

Properties	US310S	US310S-P	US320S	US320S-P	US328S	US328S-P	US352S	US352S-P
Exchange capacity	396Gbps
Package forwarding rate	78 Mpps	78 Mpps	114 Mpps	114 Mpps	126 Mpps	126 Mpps	144 Mpps	144 Mpps
Manage ports	1 Console port
Fixed port	8×10/100/1000BASE-T + 2×1000BASE-X SFP	8×10/100/1000BASE-T PoE+ + 2×1000BASE-X SFP	16×10/100/1000BASE-T + 4×1000BASE-X SFP	16×10/100/1000BASE-T PoE+ + 4×1000BASE-X SFP	24×10/100/1000BASE-T + 4×1000BASE-X SFP	24×10/100/1000BASE-T PoE+ + 4×1000BASE-X SFP	48×10/100/1000BASE-T + 4×1000BASE-X SFP	48×10/100/1000BASE-T PoE+ + 4×1000BASE-X SFP
PoE	Not supported	Supported (135W)	Not supported	Supported (250W)	Not supported	Supported (370W)	Not supported	Supported (410W)
Power consumption	AC: 7W min / 14W max	AC: 10W min / 158W max	AC: 6W min / 14W max	AC: 10W min / 306W max	AC: 6W min / 16W max	AC: 10W min / 420W max	AC: 12W min / 27W max	AC: 18W min / 492W max

Technical Features

Ethernet Capabilities: LLDP, static MAC configuration, MAC address learning limit, port/stream mirroring, port aggregation (8 ports/group, 8 groups), port isolation, STP/RSTP/MSTP, IEEE 802.3ad LACP, port self-loop detection
VLAN: 802.1Q, MAC-based VLAN, GUEST VLAN, MVRP
IP Routing: Static routing
DHCP: DHCP Client, DHCP Snooping
Multicast: IGMP V1/V2/V3 Snooping, Multicast VLAN
QoS: SP/WRR/SP+WRR queue scheduling, 802.1p, port speed limiting
ACL: Layer 2/3/4 ACLs, IPv4 and IPv6 ACLs
IPv6: IPv6 static routing, dual protocol stacks, DHCPv6 Client, ND, IPv6 Telnet/SSHv2
Reliability: Ethernet OAM, DLDP, Dying Gasp
Security: Hierarchical user management, SSH, FTP login control, ARP/attack prevention, MAC restrictions, IP+MAC+PORT binding, 802.1x, SNMPv3, storm suppression, IPv4 Portal authentication, dynamic ARP detection
System Management: Console/Telnet/SSH CLI, FTP/SFTP, SNMP V1/V2/V3, Sflow, NQA, NTP clock, system logs
ERPS: ERPS function supported

Environmental Specifications

Port Lightning Protection: 6kV
Operating Temperature: -5°C to 50°C
Operating Humidity: 5% to 95% (non-condensing)
Storage Humidity: 5% to 95% (non-condensing)

Key Advantages

Rich Port Types: Ethernet + optical port combinations for flexible networking scenarios with Gigabit wire-speed forwarding
Reliable Security Strategy: ARP intrusion detection, IP Source Guard, DHCP Snooping, port security, 802.1X and MAC authentication
Enhanced Multi-Business Capabilities: Port/flow rate limiting, SP/WRR/SP+WRR queue scheduling, comprehensive IPv6 support
Easy-to-Use Network Management: CLI, web management, TELNET, SSH2.0 encryption, remote upgrade, SNMP, iMC, Xiaobei APP remote management
Green Energy-Saving Design: Reduced power consumption and radiation, compliant with EU RoHS environmental standards
