H3C US200 Series Gigabit Ethernet Switch with 6kV Surge Protection Web/APP Managed and SFP Uplink for SMB & Surveillance

Brand Name:	H3C
Model Number:	H3C US200 series Ethernet switches
MOQ:	1
Price:	Subject to the specific model and configuration
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

H3C US200 series Ethernet s...es.pdf

Packaging Details:

See the hardware specification sheet for details based on the specific model.

Highlight:

H3C Gigabit Ethernet Switch with 6kV surge protection

Web managed network switch with SFP uplink

Gigabit Ethernet switch for SMB surveillance

Product Description

H3C US200 Series Gigabit Ethernet Switch

H3C US200 series switches are a new generation of Gigabit access simplified management switch products launched by H3C Technology Co., Ltd., providing cost-effective management performance while meeting high-performance access requirements, facilitating equipment use and maintenance.

Product Specifications

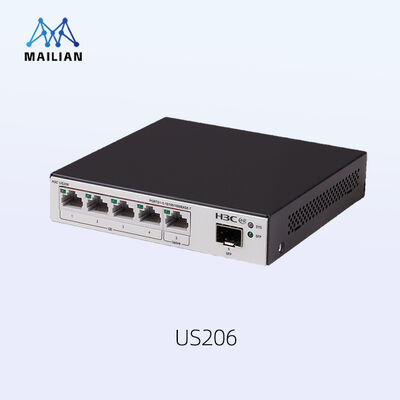

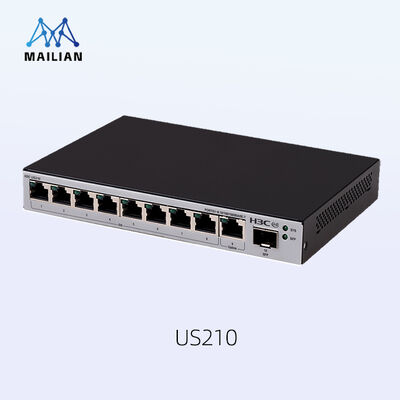

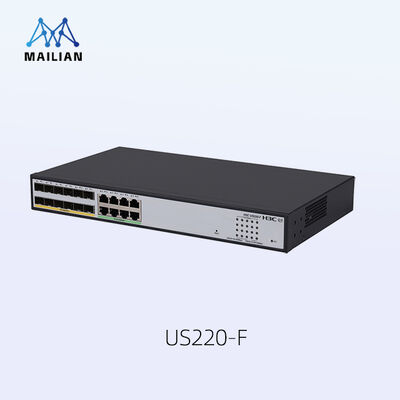

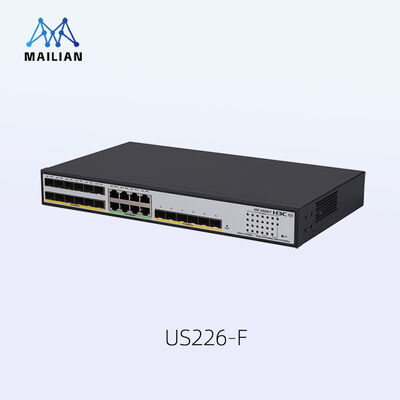

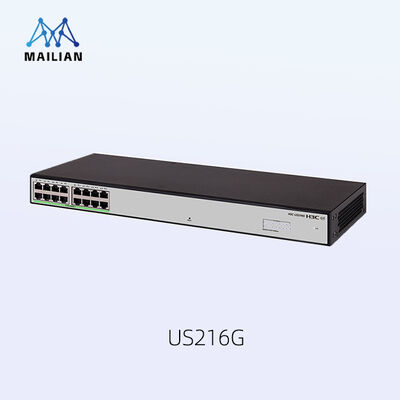

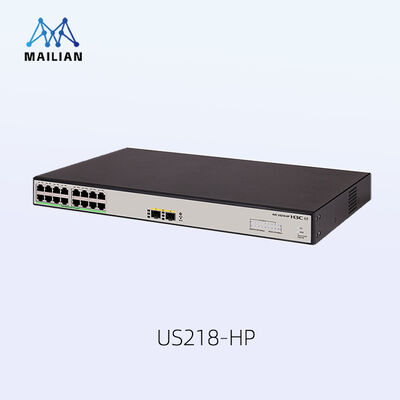

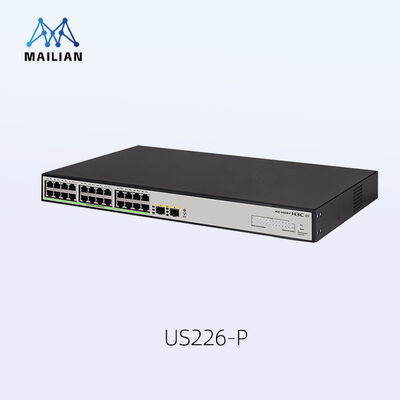

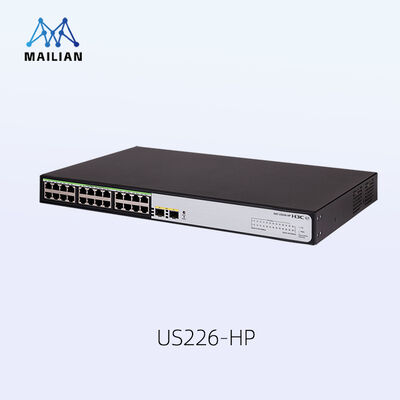

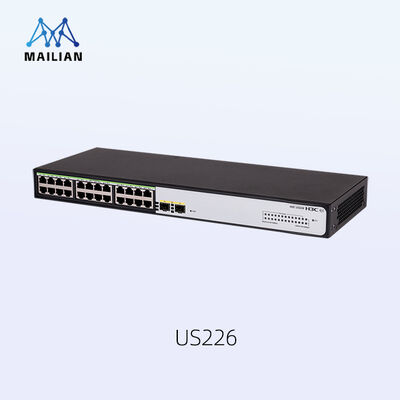

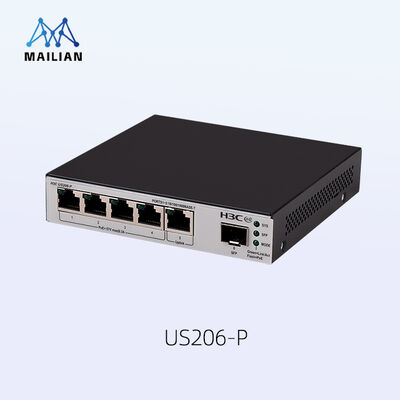

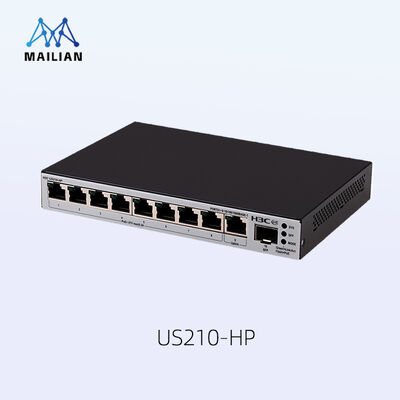

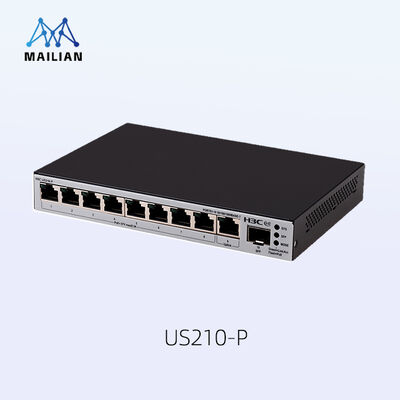

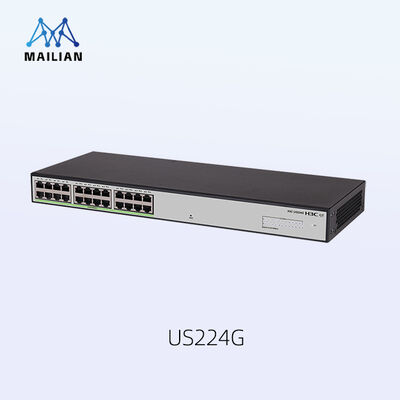

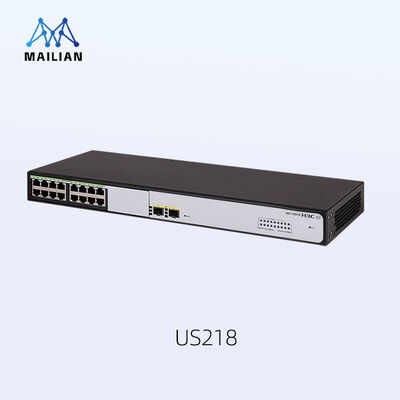

Properties	US206	US206-P	US210	US210-P	US210-HP	US216G	US218	US218-HP	US220-F	US224G	US226	US226-P	US226-HP	US226-F
Exchange capacity	96Gbps	96Gbps	192Gbps	192Gbps	192Gbps	336Gbps	336Gbps	336Gbps	336Gbps	336Gbps	336Gbps	336Gbps	336Gbps	336Gbps
Package forwarding rate	11.2Mpps	11.2Mpps	14.88Mpps	14.88Mpps	14.88Mpps	24Mpps	26.8Mpps	26.8Mpps	29.8Mpps	36Mpps	38.8Mpps	38.8Mpps	38.8Mpps	38.8Mpps
Ports	5×10/100/1000BASE-T + 1×100M/1G/2.5G SFP	5×10/100/1000BASE-T (4 PoE+) + 1×100M/1G/2.5G SFP	9×10/100/1000BASE-T + 1×100M/1G SFP	9×10/100/1000BASE-T (8 PoE+) + 1×100M/1G SFP	9×10/100/1000BASE-T (8 PoE+) + 1×100M/1G SFP	16×10/100/1000BASE-T	16×10/100/1000BASE-T + 2×100M/1G SFP	16×10/100/1000BASE-T PoE+ + 2×100M/1G SFP	8×10/100/1000BASE-T + 12×100M/1G SFP	24×10/100/1000BASE-T	24×10/100/1000BASE-T + 2×100M/1G SFP	24×10/100/1000BASE-T PoE+ + 2×100M/1G SFP	24×10/100/1000BASE-T PoE+ + 2×100M/1G SFP	8×10/100/1000BASE-T + 18×100M/1G SFP
POE Support	Not supported	POE+, 30W max per port	Not supported	POE+, 30W max per port	POE+, 30W max per port	Not supported	Not supported	POE+, 35W max per port	Not supported	Not supported	Not supported	POE+, 35W max per port	POE+, 35W max per port	Not supported
Static power consumption	2W	3W	3W	4W	4W	4W	4W	9W	6W	5W	5W	10W	11W	8W
Typical power consumption	4W	5W	5W	6W	6W	10W	10W	15W	10W	15W	14W	21W	21W	12W
Maximum power consumption	4W	59W (54W POE)	6W	81W (70W POE)	132W (125W POE)	10W	12W	280W (240W POE)	20W	15W	16W	288W (240W POE)	440W (370W POE)	27W
Weight	≤0.6kg	≤0.5kg	≤0.6kg	≤0.6kg	≤0.6kg	≤2.1kg	≤2.1kg	≤3.5kg	≤1.7kg	≤2.2kg	≤2.2kg	≤3.5kg	≤3.7kg	≤1.7kg
Dimensions (L×W×H) mm	130×124×27	130×124×27	185×125×27	185×125×27	185×125×27	440×160×44	440×160×44	440×260×44	340×200×43.6	440×160×44	440×160×44	440×260×44	440×260×44	340×200×43.6

General Specifications

Port lightning protection: 6KV
Ambient temperature: -5ºC to 45ºC
Ambient humidity: 5% to 95%
VLAN: Port-based VLANs supported
DHCP: DHCP Client supported with DHCPSnooping
Heat dissipation: Fanless silent design for natural heat dissipation or fan cooling depending on model

Key Features

Rich Port Types

Full series supports "Ethernet port + optical port" combination to meet various networking scenarios. All ports feature Gigabit wire-speed forwarding capabilities for flexible user networking.

Reliable Security Strategy

Broadcast storm suppression to prevent excessive broadcast packets
Black hole MAC address configuration to filter illegal users and ensure network security

Easy-to-Use Network Management

WEB interface with minimalist management functions and visual port configuration
Xiaobei APP remote management for anytime network status viewing and troubleshooting
Port mirroring, self-loop detection, and port isolation support

Green Energy-Saving Design

Energy-saving design reduces power consumption and failure points
Low radiation meeting household appliance standards
Iron shell design enhances heat dissipation
Compliant with EU RoHS standards for material environmental protection

Fast Network Deployment

Automatic IP address acquisition from gateway without configuration
Automatic networking between switches via Xiaobei APP serial number scanning
